FPT-80 1000/5A 5P20 1.5VA, Protection Class CT, 1000/5A, Class 5P20 1.5VA, 83 x 56mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-80 1000/5A 5P20 1.5VA Technology Protection Class Current Transformer Ratio 1000/5 Aperture Size 83 x 56mm VA Rating 1.5VA Accuracy Class Class 5P20 Output 5 Amp AC Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10 Deg C / 50 Deg C Continuous Current (max) 1000Amp x 20 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 1.2 kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet

Read more less

FPT-100 1200/5A 5P10 15VA, Protection Class CT, 1200/5A, Class 5P10 5VA, 103 x 64mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-100 1200/5A 5P10 5VA Technology Protection Class Current Transformer Ratio 1200/5 Aperture Size 64 x 103mm VA Rating 5VA Accuracy Class Class 5P10 Output 5 Amp AC  (x10) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10DegC / 50DegC Continuous Current (max) 1200Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-60 800/5A 5P20 5VA, Protection Class CT, 800/5A, Class 5P20 7.5VA, 103 x 64mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-60 800/1A 5P10 15VA Technology Protection Class Current Transformer Ratio 800/1 Aperture Size 63 x 56mm VA Rating 7.5VA Accuracy Class Class 5P20 Output 1 Amp AC Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10 Deg C / 50 Deg C Continuous Current (max) 800Amp x 20 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 1.2 kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet

Read more less

FPT-60 800/5A 5P20 5VA, Protection Class CT, 800/5A, Class 5P20 2.5VA, 63 x 56mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-60 800/5A 5P20 2.5VA Technology Protection Class Current Transformer Ratio 800/5 Aperture Size 63 x 56mm VA Rating 5VA Accuracy Class Class 5P20 Output 5 Amp AC Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10 Deg C / 50 Deg C Continuous Current (max) 800Amp x 20 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 1.2 kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet

Read more less

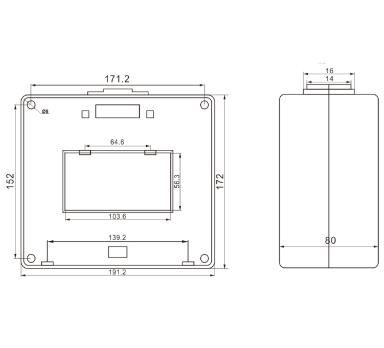

FPT-100 1200/5A 5P10 15VA, Protection Class CT, 1500/5A, Class 5P20 15VA, 103 x 64mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-100 1200/5A 5P10 15VA Technology Protection Class Current Transformer Ratio 1200/5 Aperture Size 103 x 64mm VA Rating 15VA Accuracy Class Class 5P20 Output 5 Amp AC Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10 Deg C / 50 Deg C Continuous Current (max) 1200Amp x 20 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 1.2 kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet

Read more less

FPT-100 1500/5A 5P20 5VA, Protection Class CT, 1500/5A, Class 5P20 15VA, 103 x 64mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-100 1500/5A 5P20 5VA Technology Protection Class Current Transformer Ratio 1500/5 Aperture Size 103 x 64mm VA Rating 15VA Accuracy Class Class 5P20 Output 5 Amp AC Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10 Deg C / 50 Deg C Continuous Current (max) 1500Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 1.2 kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet

Read more less

FPT-135 2000/5A 5P35 5VA, Protection Class CT, 2000/5A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 2000/5A 5P35 5VA Technology Protection Class Current Transformer Ratio 2000/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 5 Amp AC rms Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10DegC / 50DegC Continuous Current (max) 2000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet Datasheet FPT-35 2000/5 5P35 5VA

Read more less

FPT-135 750/1A 5P35 5VA Protection Class CT, 750/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 750/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 750/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 5 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 750Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 750/1A 5P20 15VA Protection Class CT, 750/1A, Class 5P20 15VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 750/1A 5P20 15VA Technology Protection Class Current Transformer Ratio 750/5 Aperture Size 81 x 135mm VA Rating 15VA Accuracy Class Class 5P20 Output 5 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 750Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

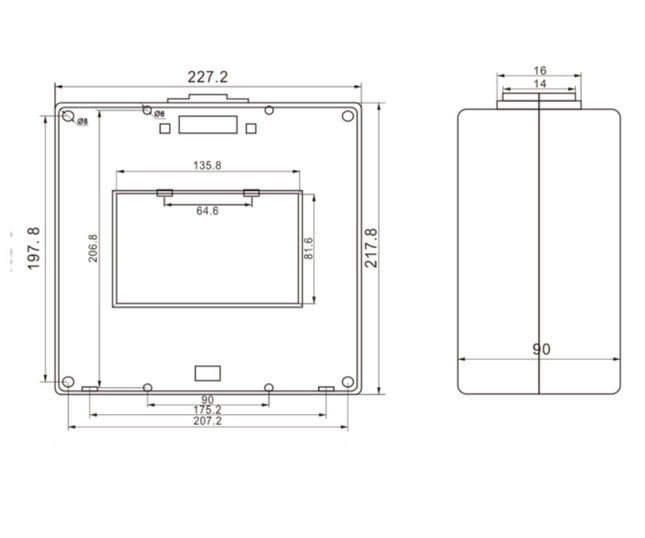

FPT-135 750/5A 5P35 5VA Protection Class CT, 750/5A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 750/5A 5P35 5VA Technology Protection Class Current Transformer Ratio 750/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 5 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 750Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

FPT-135 750/5A 5P20 15VA Protection Class CT, 750/5A, Class 5P20 15VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 750/5A 5P20 15VA Technology Protection Class Current Transformer Ratio 750/5 Aperture Size 81 x 135mm VA Rating 15VA Accuracy Class Class 5P20 Output 5 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 750Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

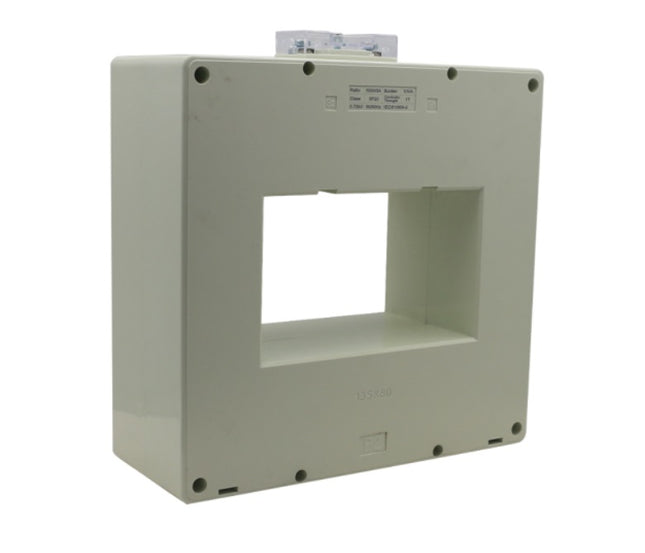

FPT-135 800/1A 5P35 5VA Protection Class CT, 800/1A, Class 5P35 5VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-135 800/1A 5P35 5VA Technology Protection Class Current Transformer Ratio 800/5 Aperture Size 81 x 135mm VA Rating 5VA Accuracy Class Class 5P35 Output 1 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 800Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??
