Power Controllers

Fastron FTPS-3-400-40-010, SCR Phase/Burst Controller,  400VAC 3 Wire (400V L-L, 230V L-N), 3 Phase, 0-10/0-5/2-10/1-5V Input, with In built Fuses, 32 Amps per Phase @ 50 Deg C Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, Phase Angle/Burst Controller 4-20mA Input Proportional Control (0-10V/1-5V/5K POT input on request) Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FTPS-3-400-40-010 Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA default (0-10V/0-5V/5K POT on request) Load Current 32 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contact (not available with RS485 Option) Comms Optional RS485 Modbus RTU Special Feature Internal Fuse Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start Programmable from 0 to 10 seconds Soft Start Programmable from 0 to 10 seconds Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs User Manual Modbus Register Map Calibration Procedure Wiring Detail

Read more less

Fastron FTPS-3-400-50-010, SCR SCR Phase/Burst Controller, 400VAC 3 Wire (400V L-L, 230V L-N), 0-10/0-5/2-10/1-5V Input, 3 Phase, with In built Fuses, 40 Amps per Phase @ 50 Deg C Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, Phase Angle/Burst Controller 4-20mA Input Proportional Control (0-10V/1-5V/5K POT input on request) Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FTPS-3-400-50-010 Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA default (0-10V/0-5V/5K POT on request) Load Current 40 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contact (not available with RS485 Option) Comms Optional RS485 Modbus RTU Special Feature Internal Fuse Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Delay on Start Programmable from 0 to 10 seconds Soft Start Programmable from 0 to 10 seconds Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs User Manual Modbus Register Map Calibration Procedure Wiring Detail

Read more less

Fastron FY3-A60-V4-2-W0, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), For 3 wire or 4 Wire loads, 400VAC, 50 Amps per Phase @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FY3-A60-V4-2-W0 Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V Load Current 50 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start N/A Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs Brochure User Guide Modbus Protocol Guide Modbus Register Map Video for How to Set Current/Voltage/Power limit

Read more less

Fastron FY3 Series, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), Voltage/Current/Power Limit Modes, For 3 Wire or 4 Wire Loads, 400VAC, 50 Amps per Phase @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FY3 Series Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V Load Current 50-500 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start N/A Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs Brochure User Guide Modbus Protocol Guide Modbus Register Map Video for How to Set Current/Voltage/Power limit

Read more less

Fastron FY3 Series, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), Voltage/Current/Power Limit Modes, For 3 Wire or 4 Wire Loads, 400VAC, 50 Amps per Phase @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FY3 Series Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V Load Current 50-500 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start N/A Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs Brochure User Guide Modbus Protocol Guide Modbus Register Map Video for How to Set Current/Voltage/Power limit

Read more less

Fastron FY3 Series, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), Voltage/Current/Power Limit Modes, For 3 Wire or 4 Wire Loads, 400VAC, 50 Amps per Phase @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FY3 Series Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V Load Current 50-500 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start N/A Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs Brochure User Guide Modbus Protocol Guide Modbus Register Map Video for How to Set Current/Voltage/Power limit

Read more less

Fastron FY3 Series, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), Voltage/Current/Power Limit Modes, For 3 Wire or 4 Wire Loads, 400VAC, 50 Amps per Phase @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FY3 Series Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V Load Current 50-500 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start N/A Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs Brochure User Guide Modbus Protocol Guide Modbus Register Map Video for How to Set Current/Voltage/Power limit

Read more less

Fastron FY3 Series, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), Voltage/Current/Power Limit Modes, For 3 Wire or 4 Wire Loads, 400VAC, 50 Amps per Phase @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FY3 Series Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V Load Current 50-500 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start N/A Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs Brochure User Guide Modbus Protocol Guide Modbus Register Map Video for How to Set Current/Voltage/Power limit

Read more less

Advanced Energy Thyro-PX-3PX-500-280-H-F, 3 Phase  3 Leg 500VAC SCR Burst/Phase Fire Power Controller, 280 Amp Per Phase @ 50 Deg C, With Current and Power Control Feedback, Voltage Sequence Control, Switch Operating Mode, MOSI Operating Mode Features 230VAC-500VAC +10/-20% Line to Line Voltage, Current or Power Control Molybdenum disilicide Ramp Operating  Smallest footprint on the market Built in Fuses 3 Phase, Phase Angle & Burst Controller with SWITCH operation mode SWITCH between Phase(VAR) or Burst(TAKT) control modes (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control Removable Cover USB Configuration/Bias Setting Potentiometer Adjustments Synchronisation Function for Multiple TAKT Sync Applications Electrical Ovens, Kilns, or Furnaces Arc Furnaces Molybdenum Disilicide Elements Silicon Carbide Elements DC Feedback Control from Transformer Secondary Chlorination, Electroplating Primary Control of Transformer Loads in Phase or Burst Fire mode Start on Short Circuit Load  AC Soft Starter (VAR Mode Combined with PLC) Power Regulation Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Incorporated Features Current Control/Feedback Programmable Relay Alarm Output Load Monitoring Analogue Output Power Control Feedback Communication Options Anybus Module   Specification Advanced Energy Part Number Thyro-PX-3PX-500-280-H-F Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC Control Accuracy 0.5% at rated voltage Rated Operating Temperature 50°C Temperature Derating Inom @ 50 Deg C, 1.1 x Inom @ 40 Deg C SCR Configuration Three Phase AC Switch Control Modes Phase(VAR), Burst(TAKT), Quick TAKT(QTM), Hybrid(VT on request), MOSI, VSC Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT Load Current 280 Amp @ 50 Deg C (110% @ 40 Deg C Max) Control Range 0-100% Relays / Dry Contacts 3 Relay Outputs, 3 Dry Contacts Digital I/O 6 Digital Inputs Options (Optional) Conformal Coating for Gas or High Humidity Environments Mounting Style Panel Mount Supply Voltage Range 230VAC-500VAC +10/-20% Soft Start Via PLC input Termination Style Screw Unit Weight 2.1 to 140kg Factory Pack Qty 1   Technical Docs Brochure User Manual 2 Leg Control Application Blog Thyro A Series Quick Installation Guide Thyro Touch Software and Touch Display User Guide Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

Read more less

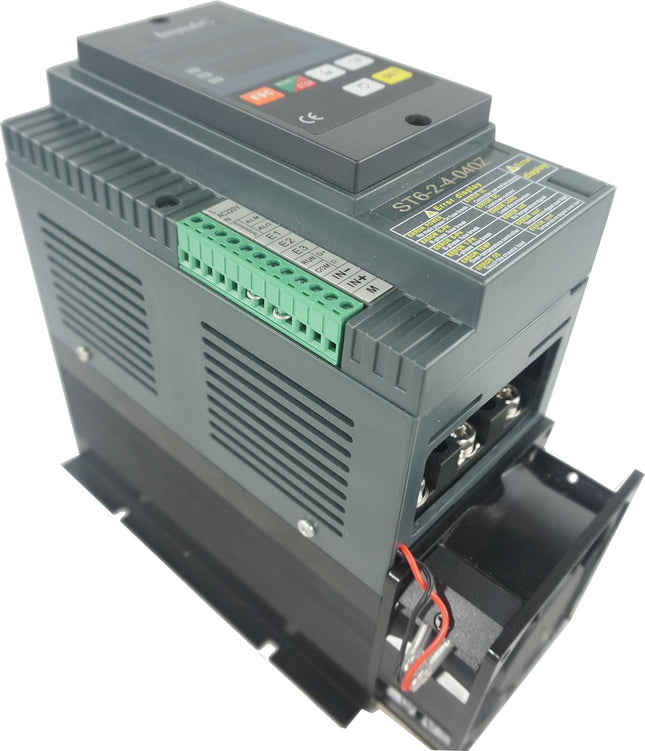

Fastron T6-2-4-75Z (60), 3 Phase, 2 Leg SCR Burst Controller, 400VAC with In built Fuses, 40 Amps per Phase @ 50 Deg C Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V/5K POT input Proportional Control RS485 Modbus RTU as standard 2 x Analogue Outputs as standard Limit POT input for output limitation C/O Alarm Contacts Start/Stop Run Feature Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heatsing Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number T6-2-4-75Z (60),ST6-2-4-40Z (32),T6-2-4-50Z (40) Rated Operating Temperature 50°C SCR Configuration 3 Phase, 2 Leg, AC Switch Control Voltage 4-20mA/0-10V/0-5V/5K POT Load Current 40 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x C/O Relay Contacts Special Feature Internal Fuse Analogue Output 2 x Programmable Outputs (3 Phase), 1 x Programmable Output (Single Phase) Comms RS485 Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start/Stop Programmable Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs User Manual

Read more less
