Low Voltage Disconnect & CAM Switches
-

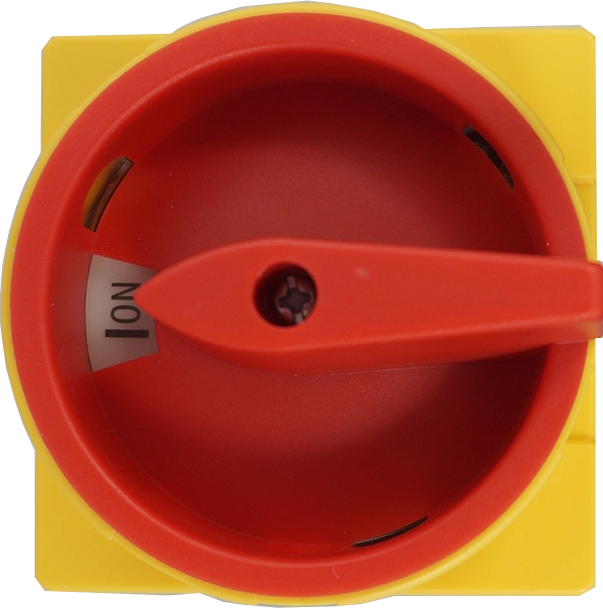

TGLW30-3D25, 3 Pole Rotary/CAM Switch RED, 25 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-3D25, 3 Pole Rotary/CAM Switch RED, 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 3 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-3D25 Functions 3 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 25 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 200g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$42.10
$49.68 inclGST -

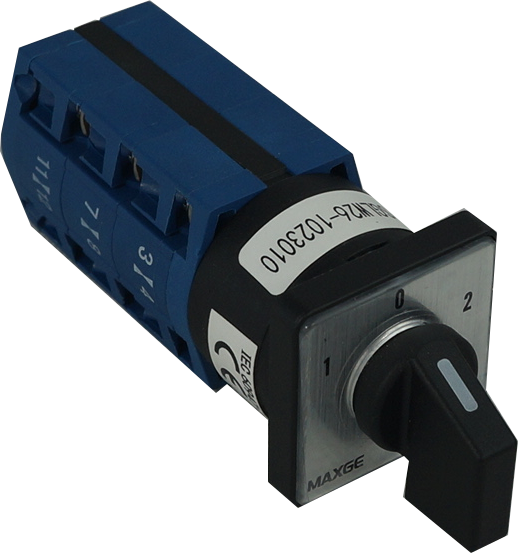

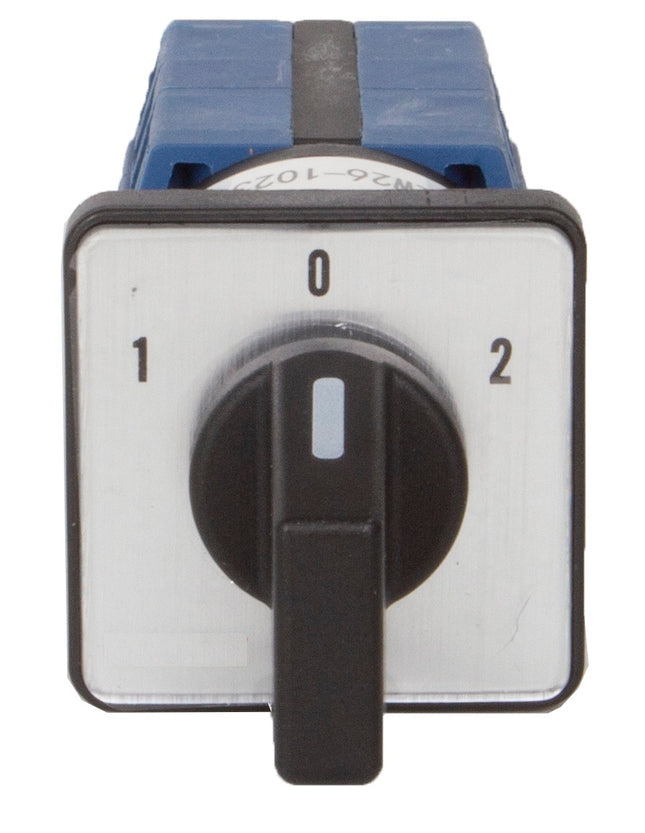

TGLW26-1021025, 1 Pole Rotary Switch BLACK, 25 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW26-1021025, 1 Pole Rotary Switch BLACK, 25 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary Load Break or Disconnect Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 1 Pole Momentary 64mm x 64mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TGLW26-1021025 Functions 1 Pole AC Disconnect Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 25 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 35-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 200g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$11.90
$14.04 inclGST -
TGLW30-3D63, 3 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-3D63, 3 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 3 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-3D63 Functions 3 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 63 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 265g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$65.10
$76.82 inclGST -

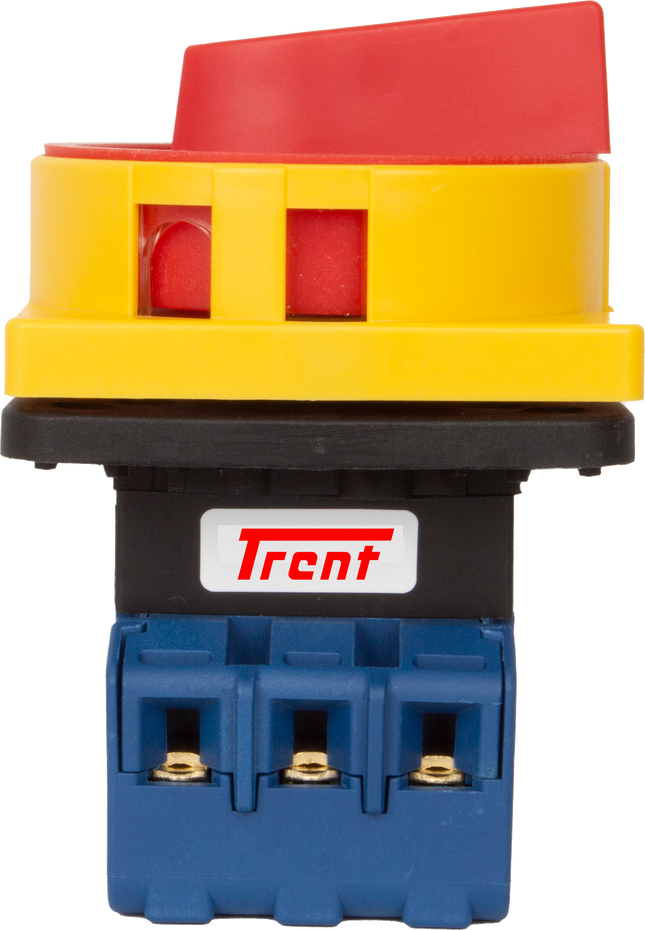

TGLW30-3D100, 3 Pole Rotary/CAM Switch RED, 100 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-3D100, 3 Pole Rotary/CAM Switch RED, 100 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 3 Pole 2 Postion 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-3D100 Functions 3 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 100 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 470g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$119.60
$141.13 inclGST -
TGLW30-3R25, 3 Pole Rotary/CAM Switch RED, 25 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-3R25, 3 Pole Rotary/CAM Switch RED, 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 3 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-3R25 Functions 3 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 25 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 200g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$30.60
$36.11 inclGST -
TGLW30-3R63, 3 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-3R63, 3 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 3 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-3R63 Functions 3 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 63 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 265g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$44.90
$52.98 inclGST -

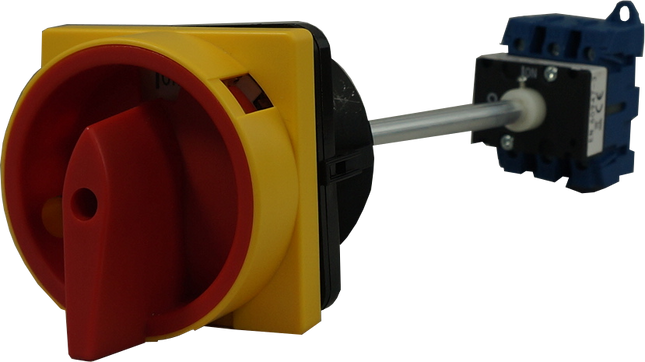

TGLW30-3R100, 3 Pole Rotary/CAM Switch RED, 100 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-3R100, 3 Pole Rotary/CAM Switch RED, 100 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 3 Pole 2 Postion 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-3R100 Functions 3 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 100 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 470g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$66.00
$77.88 inclGST -
TGLW30-4B25, 4 Pole Rotary/CAM Switch RED, 25 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-4B25, 4 Pole Rotary/CAM Switch RED, 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 4 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-4B25 Functions 4 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 25 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 200g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$45.30
$53.45 inclGST -
TGLW30-4B63, 4 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-4B63, 4 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 4 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-4B63 Functions 4 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 63 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 265g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$70.50
$83.19 inclGST -

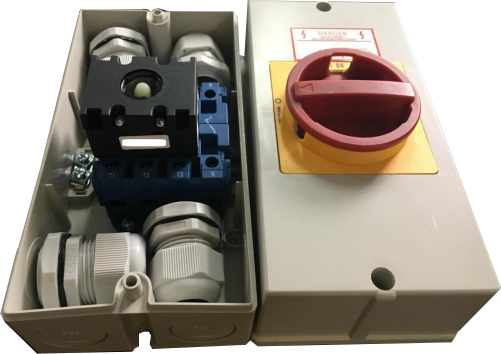

TGLW30-4B100, 4 Pole Rotary/CAM Switch RED, 100 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-4B100, 4 Pole Rotary/CAM Switch RED, 100 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 4 Pole 2 Postion 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-4B100 Functions 4 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 100 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 470g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$126.20
$148.92 inclGST -
TGLW30-4R25, 4 Pole Rotary/CAM Switch RED, 25 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-4R25, 4 Pole Rotary/CAM Switch RED, 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 4 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-4R25 Functions 4 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 25 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 200g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$34.40
$40.59 inclGST -
TGLW30-4R63, 4 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
TGLW30-4R63, 4 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1 Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 400VAC in various current ratings 4 Pole 2 Position 64mm x 64mm Cutout Standards : IP40 Front, IP20 Terminals IEC 60947-1,-3 IEC 60204 Specification TRENT Part Number TGLW30-4R63 Functions 4 Pole AC Disconnect CAM Switch Nominal Voltage 400VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 63 Amp @400VAC Rated Insulation Voltage 690VAC Humidity 10-85% Approvals CE Standards IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) Weight 265g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia  Datasheet Datasheet
$50.40
$59.47 inclGST
