Hall Effect Current Sensor, 50 Amp, 0-5V output, no aperture, 5V Supply, PCB Mount, X = 2%

Read more less

LEM HO 60-P/SP33-1106, O/L Multi Range Hall Effect Current Sensor, 100 Amp, PCB Mount, 18.8 x 10.5mm aperture, Panel Mount +3.3 V, Overcurrent Detection Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +3.3 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for PCB mounting Aperture: 15 × 8 mm Factory calibrated Repositionabel mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 60-P/SP33-1106 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 250 Amp Measurement Range +/-625 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style JST B5B-PH type Unit Weight 32g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

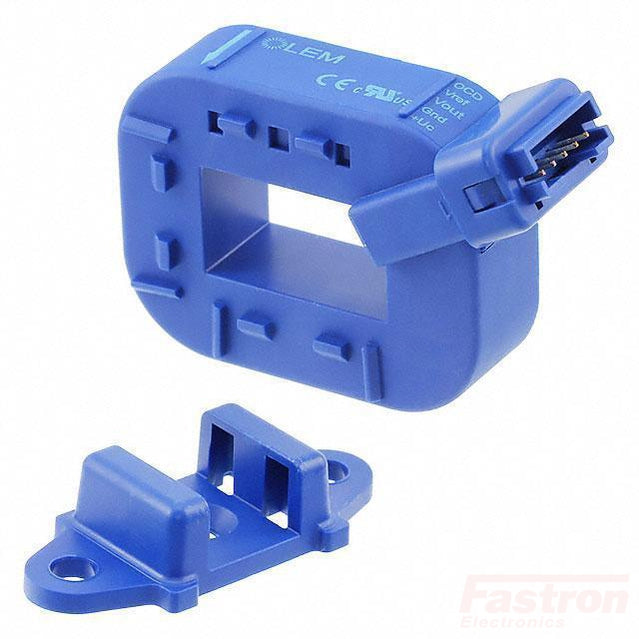

LEM HO 100-S/SP33-1106, O/L multi range Hall Effect Current Sensor, 100 Amp, Panel Mount, 18.8 x 10.5mm aperture, Digital Bitsream Output, Panel Mount +3.3 V, Overcurrent Detection Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +3.3 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for panel mounting Aperture: 15 × 8 mm Factory calibrated Repositionabel mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 100-S/SP33-1106 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 250 Amp Measurement Range +/-625 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style JST B5B-PH type Unit Weight 32g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

HAIS 200-P, O/L Hall Effect Current Sensor, 200 Amp, Vref 0-5V Output, PCB Mount, 15x8mm sqr, X = 1% Features Bandwidth DC to 50kHz Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Wide dynamic range, 50 to 600 A in one package. Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Specification LEM Part Number HAIS 200-P Technology Open Loop Hall Effect Aperture 15 x 8mm Square ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 200 Amp Overload Capability +/- 600 Amp Output 2.5 Vref Isolation 2.5kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style PCB Unit Weight 30g Factory Pack Quantity 10 Datasheet Product Datasheet

Read more less

HAIS 150-P, O/L Hall Effect Current Sensor, 150 Amp, Vref 0-5V Output, PCB Mount, 15x8mm sqr, X = 1% Features Bandwidth DC to 50kHz Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Wide dynamic range, 50 to 600 A in one package. Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Specification LEM Part Number HAIS 150-P Technology Open Loop Hall Effect Aperture 15 x 8mm Square ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 150 Amp Overload Capability +/- 450 Amp Output 2.5 Vref Isolation 2.5kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style PCB Unit Weight 30g Factory Pack Quantity 10 Datasheet Product Datasheet

Read more less

CT 0.1-P, C/L Hall Effect Earth Leakage Current Sensor, 100mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Bandwidth : DC and 40 up to 7..18 kHz Response time better than 60 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CT 0.1-P Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 100 mAmp Output 5V Analogue Isolation 2.5kV Bandwidth DC-7kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 125°C Accuracy 1% Aperture ø 11mm Unit Weight 10g Factory Pack Qty 10 Datasheet Product Datasheet Soon to be Phased out - See CTSR Series for new 5VDC supply design

Read more less

LEM LKSR 6-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 6-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/- 20Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP

Read more less

LEM LKSR 50-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 50-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/- 150Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP

Read more less

LEM LKSR 25-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 25-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/- 85Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP

Read more less

LEM LKSR 15-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 15-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/- 51Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
