HAH1DRW 400-S/SP5, Automotive Open Loop Current Sensor, +/-400Amp Measurement, Vref = 2.5V output
HAH1DRW 400-S/SP5, Automotive Open Loop Current Sensor, +/-400Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number HAH1DRW 400-S/SP5 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current +/-400 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6 Datasheet Product Datasheet
$59.00
$69.62 inclGST -
LT 10000-S, C/L Hall Effect current transducer, Ipn = 10000 Amp, Isn = 1000mA, +/-48..60VDC Supply
LEM LT 10000-S, C/L Hall Effect current transducer, Ipn = 10000 Amp, Isn = 1000mA, +/-48..60VDC Supply Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 10000-S Technology Closed Loop Hall Effect Aperture 200mm ROHS Yes Supply Voltage +/- 48 VDC to +/- 60 VDC Bipolar, Isolated Load Current (RMS + DC) 10000 Amp Measurement Range +/- 15000 Amp (with +/-60VDC Supply) Output 1000 mA Isolation 10 kV Bandwidth DC-100 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style M5 threaded studs Unit Weight 17kg Factory Pack Quantity 1 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$12,689.00
$14,973.02 inclGST -

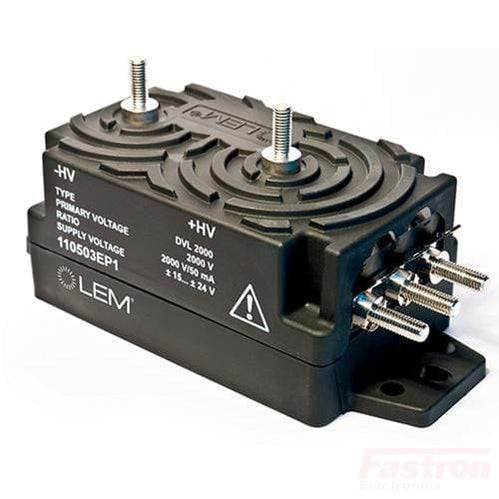

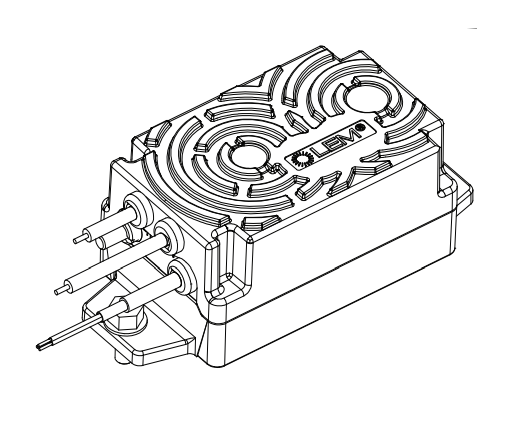

DVL 1500/SP5, Digital Voltage Transducer, Vpn = 1000V, 50mA output, +/-15...24VDC powered, 8.5kV Isolation, All Terminals From the Side, No Top Terminals
LEM DVL 1500/SP5, Digital Voltage Transducer, Vpn = 1000V, 50mA output, +/-15...24VDC powered, 8.5kV Isolation, All Terminals From the Side, No Top Terminals Features Bandwidth DC to 14kHz Digital Transducer (ASIC based) Closed loop transducer using Hall effect Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 All Terminals From the Side, No Top Terminals Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number DVL 1500/SP5 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15..24 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 1000V Measurement Range +/- 1500V Output 50 mA @Vpn Isolation 8.5 kV Bandwidth DC-14 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy 1% Termination Style Threaded inserts output, Short input studs Unit Weight 270g Factory Pack Quantity 4 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$965.00
$1,138.70 inclGST -
LF 510-S/SP22, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, 30.2mm Aperture, +/-15..24V Supply, Panel Mount, X = 0.5%
LEM LF 510-S/SP22, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, 30.2mm Aperture, +/-15..24V Supply, Panel Mount, X = 0.5% Features Bipolar and insulated current measurement up tp 800 Amp Current output Bandwidth DC to 200kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 SP22 = +/-1200 Amp, Ratio = 1/3500, - 40 Deg C to + 70 Deg C Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LF 510-S/SP22 Technology Closed Loop Hall Effect Aperture ø30.2mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 500 Amp Measurement Range +/- 800 Amp Output 100 mA Isolation 3.8 kV Bandwidth DC-200 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style Molex 6410 Unit Weight 240g Factory Pack Quantity 18 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$489.00
$577.02 inclGST -
LT 1005-S/SP29, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4%
LEM LT 1005-S/SP29, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4% Features Bipolar and insulated current measurement up tp 2000 Amp Current output Bandwidth DC to 150kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 SP19 = Ip = +/-2400A, Vc = +/-15..24V, Vd = 12kV, Ta = -40 Deg C(-50 Deg C)..+85 Deg C Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 1005-S/SP29 Technology Closed Loop Hall Effect Aperture ø40.5mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 1000 Amp Measurement Range +/- 2400 Amp Output 200 mA Isolation 6 kV Bandwidth DC-150 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.4% Termination Style M4 theaded studs Unit Weight 850g Factory Pack Quantity 4 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$1,130.00
$1,333.40 inclGST -
LV 100/SP47, C/L Voltage Transducer, 10mA Primary, +/-12..18VDC Aux, 50mA Output, SP47 = 9kV Isolation, -40 to 85 Deg C, +/-12-18VDC Aux Supply range
LV 100/SP47, C/L Voltage Transducer, 10mA Primary, +/-12..18VDC Aux, 50mA Output, SP47 = 9kV Isolation, -40 to 85 Deg C, +/-12-18VDC Aux Supply range Features Used for Voltage Transducer Design Current input and output Closed loop (compensated) voltage transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Low power consumption Applications Railway Equipment Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Traction Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LV 100/SP47 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 12..18 VDC Bipolar, Isolated Primary Nominal Current 10mA Measurement Range +/- 20 mAmp Output 50 mA Isolation 9 kV Response time 20 - 100uS Mounting Style Panel Mount Operating Temperature Range 0°C / 70°C Accuracy 0.7% Termination Style Faston 45° 6.3 x 0.8mm and M5 threaded studs Unit Weight 460g Factory Pack Quantity 6 Datasheet Product Datasheet
$835.00
$985.30 inclGST -
HLSR 120-P/SP10, O/L Hall Effect Current Sensor, 120 Amp, 5VDC Supply, PCB Mount
LEM HLSR 120-P/SP10, O/L Hall Effect Current Sensor, 120 Amp, 5VDC Supply, PCB Mount Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 120-P/SP10 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 120 Amp Measurement Range +/-300 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.45
$37.11 inclGST -
HLSR 100-P/SP10, O/L Hall Effect Current Sensor, 100 Amp, 5VDC Supply, PCB Mount
LEM HLSR 100-P/SP10, O/L Hall Effect Current Sensor, 100 Amp, 5VDC Supply, PCB Mount Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 100-P/SP10 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 100 Amp Measurement Range +/-250 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.45
$37.11 inclGST -
HLSR 80-P/SP10, O/L Hall Effect Current Sensor, 80 Amp, 5VDC Supply, PCB Mount
LEM HLSR 80-P/SP10, O/L Hall Effect Current Sensor, 80 Amp, 5VDC Supply, PCB Mount Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 80-P/SP10 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 80 Amp Measurement Range +/-200 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.45
$37.11 inclGST -
LT 4000-T/SP42, C/L Hall Effect Current Sensor, Ipn = 4400 Amp (+/-12000 Amp Measurement Range), Isn = 880mA, +/-60VDC Supply, 60mm Busbar, X = 0.2%, Busbar/Panel Mount
LEM LT 4000-T/SP42, C/L Hall Effect Current Sensor, Ipn = 4400 Amp (+/-12000 Amp Measurement Range), Isn = 880mA, +/-60VDC Supply, 60mm Busbar, X = 0.2%, Busbar/Panel Mount Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 4000-T/SP42 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 60 VDC Bipolar, Isolated Load Current (RMS + DC) 4400 Amp Measurement Range +/- 12000 Amp Output 880 mA Isolation 12 kV Bandwidth DC-100 kHz Mounting Style Busbar Mount Operating Temperature Range -10°C / 85°C Accuracy 0.2% Termination Style M5 threaded studs Unit Weight 12.1kg Factory Pack Quantity 1 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$5,528.60
$6,523.75 inclGST -
CD 100-S/SP5, O/L Hall Effect Current Sensor, 2 x 1000 Amp, +/-5V Output
LEM CD 100-S/SP5, O/L Hall Effect Current Sensor, 2 x 1000 Amp, +/-5V Output Features Bandwidth DC to 5kHz Closed loop transducer using Hall effect (Compensated) Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Single or 3 Phase Inverter Propulsion and Breaking Chopper Propulsion Converter Auxiliary Converter Railway Security System Specification LEM Part Number CD100-S/SP5 Technology Closed Loop Hall Effect Aperture ø40mm ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 2 x1000 Amp Output +/-5 V Isolation 6 kV Bandwidth DC-5 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 80°C Accuracy 2.5% Unit Weight 1kg Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$9,500.00
$11,210.00 inclGST -
CAB 1500, Fluxgate Automotive Battery Sensor, +/-1500Amp Measurement, 12VDC Supply, 24.2mm ø Aperture, Accuracy = 0.5%, Unlimited Overcurrent Capability, Cable Mount, Configurable Can Bus ID
LEM CAB 1500, Fluxgate Automotive Battery Sensor, +/-1500Amp Measurement, 12VDC Supply, 24.2mm ø Aperture, Accuracy = 0.5%, Unlimited Overcurrent Capability, Cable Mount, Configurable Can Bus ID Features Transducer using Fluxgate technology +/-1500Amp Measurement 12VDC Supply Accuracy = 0.5% Wide Temperature Range -40 to 105°C Unlimited Overcurrent Capability Panel Mount CAN Bus ID (Programmable) Nanocrystalline Magnetic Core Advantages No Offset Error High Accuracy Low Linearity Error Full Galvanic Separation Automotive Applications Hybrid and Electric Vehicle Battery Packs Conventional Lead Acid Batteries Accurate measurement for battery management applications Specification LEM Part Number CAB 1500 Technology DC Hall Effect Protection Class See Datasheet Supply Voltage 8 - 16VDC Load Current (RMS) -530 to 530 Amp Output CAN.C Bus (500kbps) ver 2.0A/B CAN Bus ID Programmable Electrostatic Discharge Voltage 4kV at pinout Isolation 2.5kV (50Hz, 1min) Aperture ø 24.2mm Mounting Style Panel Mount Operating Temperature Range -40 to 105°C Accuracy 0.5% Termination Style Tyco=AMP P/N:1 473672-1 Unit Weight 67g Factory Pack Qty 1 Datasheet Product Datasheet
$295.00
$348.10 inclGST
