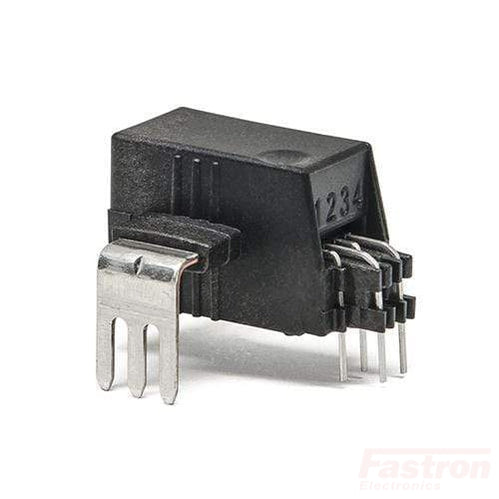

LEM Part Number	HLSR 80-P/SP10
Technology	Open Loop Hall Effect
Aperture	None
ROHS	Yes
Supply Voltage	5 VDC
Load Current (RMS + DC)	80 Amp
Measurement Range	+/-200 Amp
Output	2.5 Vref
Isolation	4.3 kV
Bandwidth	DC-400 kHz
Mounting Style	PCB Mount
Operating Temperature Range	-40°C / 105°C
Accuracy	1%
Termination Style	PCB
Unit Weight	5g
Factory Pack Quantity	25



• Product Datasheet

• LEM Applications Manual 3rd Edition
