Modular Contactors

Iskra IK63-40-230VAC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 63 Amp, 230VAC/220VDC 40-500Hz Control Voltage, Hum Free, Can Replace MC-63-240-4NO  Features 63 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number IK63-40-230VAC Switching Type 4 x SPST NO Approvals CE Coil Voltage 230VAC/220VDC, 40-500Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC, 40-500Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Contactor Datasheet

Read more less

Fastron FPC1-63-40C-24VAC/DC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 63 Amp 50/60Hz, 24VDC Coil Voltage, Hum Free Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-40C-24VAC/DC Switching Type 4 x SPST NO Approvals CE Coil Voltage 24VDC Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC, 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-63-40C-230VAC/DC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 63 Amp 50/60Hz, 230VAC/DC Coil Voltage, Hum Free Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-40C-230VAC/DC Switching Type 4 x SPST NO Approvals CE Coil Voltage 230VAC, 50/60Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC, 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet Auxiliary Contacts Selection Guide

Read more less

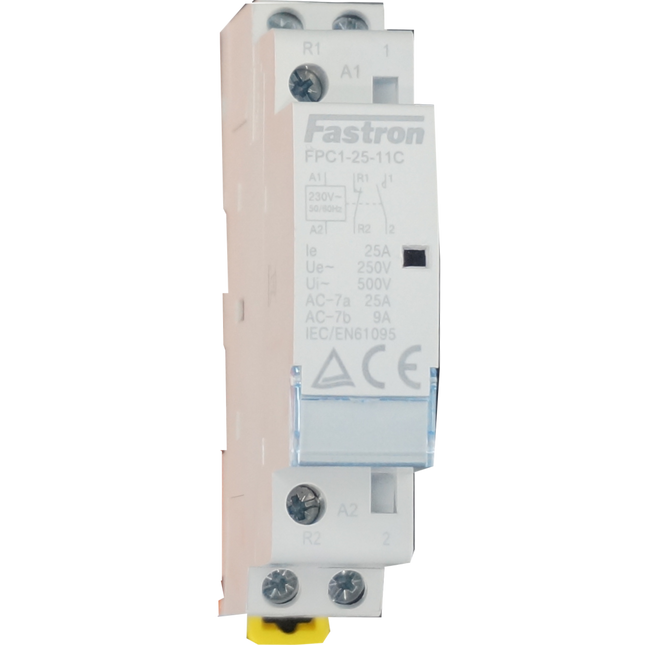

Fastron FPC1-25-11C-230VAC, Two Pole 1 x SPST NO, Configuration_SPST (1 x NC) Modular Contactor 230VAC 25 Amp, 230VAC/220VDC Coil Voltage, 50/60Hz, Hum Free Features 25 Amp (rms) @ 230VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-25-11C-230VAC Switching Type 1 x SPST NO, Configuration_SPST (1 x NC) Approvals CE Coil Voltage 230VAC Load Rating 25 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 230VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-63-40-230VAC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 63 Amp 50/60Hz, 230VAC Coil Voltage Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-40-230VAC Switching Type 4 x SPST NO Approvals CE Coil Voltage 230VAC, 50/60Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature N/A Mounting Style DIN Rail Mount Load Voltage Range 440VAC, 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-AUX-11-AUC, Auxiliary Contact for FPC1 Series HUM FREE Contactors 1 x NO, 1 x NC, 5 Amp @ 230VAC/ 1 Amp @ 130VDC. Side/ Din Rail Mount Features UL94V0 IP20 Specification Fastron Part Number FPC1-AUX-11-AUC Switching Type 1 x SPST NO, Configuration_SPST (1 x NC) Approvals CE Coil Voltage N/A Load Rating 5 Amp @ 230VAC/ 1 Amp @ 130VDC Special Feature Auxiliary Contact for FPC1 HUM FREE Contactors Mounting Style DIN Rail Mount Load Voltage Range N/A Isolation 4kV Unit Weight 40g Factory Pack Qty 120   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-AUX-20-CTS Auxiliary Contact for FPC1 Series NON HUM FREE Contactors 2 x NO, 5 Amp @ 230VAC/ 1 Amp @ 130VDC. Side/Din Rail Mount Features UL94V0 IP20 Specification Fastron Part Number FPC1-AUX-20-CTS Switching Type 2 x SPST NO Approvals CE Coil Voltage N/A Load Rating 5 Amp @ 230VAC/ 1 Amp @ 130VDC Special Feature Auxiliary Contact for NON HUM FREE Contactors Mounting Style DIN Rail Mount Load Voltage Range N/A Isolation 4kV Unit Weight 40g Factory Pack Qty 120   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-32-40C-24VAC/DC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 32 Amp 50/60Hz, 24VAC/DC Coil Voltage, Hum Free Features 32 Amp (rms) @ 400VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-32-40C-24VAC/DC Switching Type 4 x SPST NO Approvals CE Coil Voltage 24VAC/DC 50/60Hz Load Rating 32 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-32-22C-R-230VAC/DC, 4 Pole 2 x SPST NO, Configuration_2 x SPST (2 x NC), Modular Contactor 440VAC 32 Amp, 230VAC/DC Coil Voltage, 50/60Hz, Hum Free Features 32 Amp (rms) @ 230VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-32-22C-R-230VAC Switching Type 2 x SPST NO, Configuration_2 x SPST (2 x NC) Approvals CE Coil Voltage 230VAC/DC 50/60Hz Load Rating 32 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-63-22C-230VAC, 4 Pole 2 x SPST NO, Configuration_2 x SPST (2 x NC) Modular Contactor 440VAC 63 Amp 50/60Hz, 230VAC Coil Voltage, Hum Free Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-22C-230VAC Switching Type 2 x SPST NO, Configuration_2 x SPST (2 x NC) Approvals CE Coil Voltage 230VAC 50/60Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-63-04C-230VAC, 4 Pole 4 x SPST NC, Modular Contactor 440VAC 63 Amp 50/60Hz, 230VAC Coil Voltage, Hum Free Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-04C-230VAC/DC Switching Type 4 x SPST NC Approvals CE Coil Voltage 230VAC/DC, 50/60Hz  Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC, 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron SPACER-UK, Module Spacer for DIN Rail Mount Modular Contactors or Relays Features UL94V0 IP20 Specification Fastron Part Number SPACER-UK Switching Type Any Approvals CE Coil Voltage N/A Load Rating N/A Special Feature Module Spacer Mounting Style DIN Rail Mount Load Voltage Range N/A Isolation 4kV Unit Weight 30g Factory Pack Qty 480   Datasheet Datasheet

Read more less
