Fastron FPC1-AUX-11-CTS Auxiliary Contact for FPC1 Series NON HUM FREE Contactors 1 x NO 1 x NC, 5 Amp @ 230VAC/ 1 Amp @ 130VDC. Side/Din Rail Mount Features UL94V0 IP20 Specification Fastron Part Number FPC1-AUX-11-CTS Switching Type 1 x SPST NO 1 x SPST NC Approvals CE Coil Voltage N/A Load Current Rating 5 Amp @ 230VAC/ 1 Amp @ 130VDC Special Feature Auxiliary Contact for NON HUM FREE Contactors Mounting Style DIN Rail Mount Load Voltage Range N/A Isolation 4kV Unit Weight 40g Factory Pack Qty 120   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-32-40C-230VAC/DC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 32 Amp 50/60Hz, 230VAC/220VDC Coil Voltage, Hum Free Features 32 Amp (rms) @ 400VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-32-40C-230VAC/DC Switching Type 2 x SPST NO Approvals CE Coil Voltage 230VAC/220VDC 50/60Hz  Load Current Rating 32 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron Electronics FMC1-6301-230, 1 Pole 1 x SPST NC, Modular Contactor 250VAC 63 Amp (AC-1), 230VAC 50/60Hz Control Voltage Features 40 Amp (rms) @ 250VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FMC1-6301-230 Switching Type 1 x SPST NC Approvals CE Coil Voltage 230VAC 50/60Hz Load Current (RMS) 63 Amp (rms) @ 250VAC AC-1,AC-7a / 25 Amp (rms) AC-3 /AC-7b Special Feature 63 Amp in Single DIN Width (18mm) Mounting Style DIN Rail Mount Load Voltage Range 250VAC 50/60Hz Insulation Voltage 500VAC Isolation 2.5kV Termination Style Screw Unit Weight 130g Factory Pack Qty 20 Datasheet Contactor Datasheet

Read more less

Fastron FPC1-SPACER, Module Spacer for DIN Rail Mount Modular Contactors FPC1 Series  Features UL94V0 IP20 Specification Fastron Part Number FPC1-SPACER Switching Type Any Approvals CE Coil Voltage N/A Load Current Rating N/A Special Feature Module Spacer Mounting Style DIN Rail Mount Load Voltage Range N/A Isolation 4kV Unit Weight 40g Factory Pack Qty 480   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

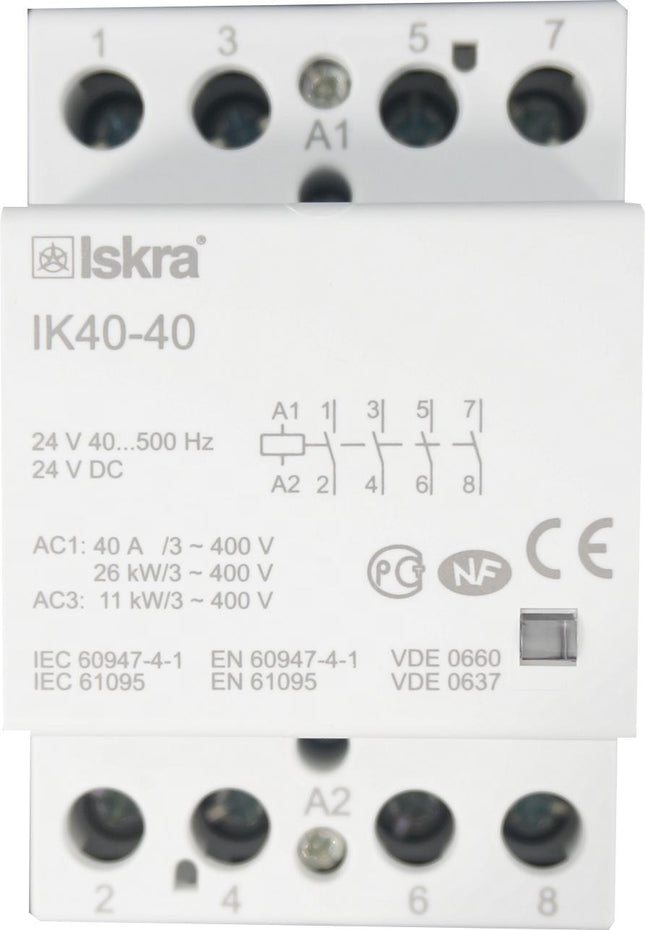

Iskra IK40-40-24VAC/DC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 40 Amp, 230VAC/220VDC 40-500Hz Control Voltage, Hum Free Features 40 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number IK40-40-24VAC/DC Switching Type 4 x SPST NO Approvals CE Coil Voltage 24VAC/DC 40-500Hz Load Current (RMS/DC) 40 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 40-500Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Contactor Datasheet

Read more less

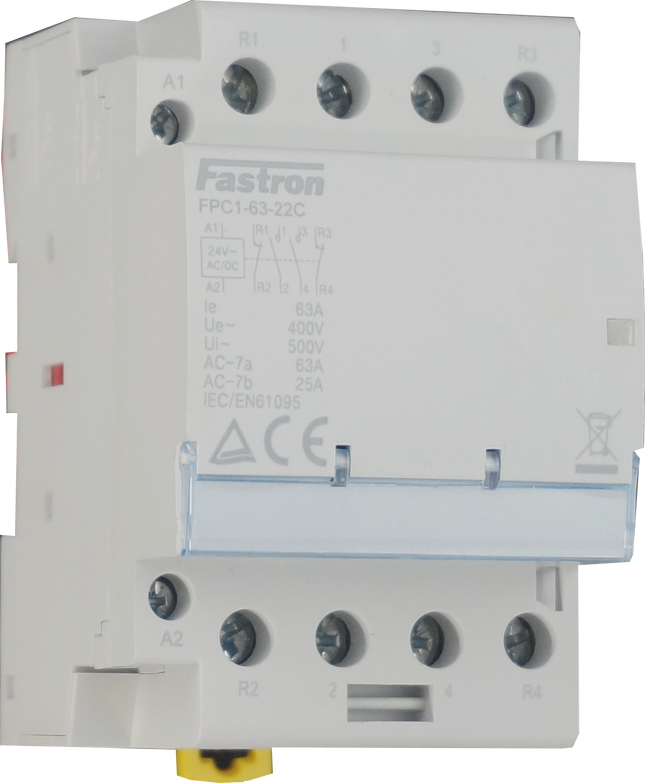

Fastron FPC1-63-22-24VAC, 4 Pole 2 x SPST NO, 2 x SPST NC Modular Contactor 440VAC 63 Amp, 24VAC/DC Coil Voltage Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-22(C)-24VAC/DC Switching Type 2 x SPST NO, 2 x SPST NC Approvals CE Coil Voltage 24VAC/DC Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Fastron FPC1-63-31C-230VAC, 4 Pole 3 x SPST NO, 1 x SPST NC Modular Contactor 440VAC 63 Amp 50/60Hz, 230VAC Coil Voltage, Hum Free Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-31C-230VAC Switching Type 3 x SPST NO, 1 x SPST NO Approvals CE Coil Voltage 230VAC 50/60Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet Auxiliary Contacts Selection Guide

Read more less

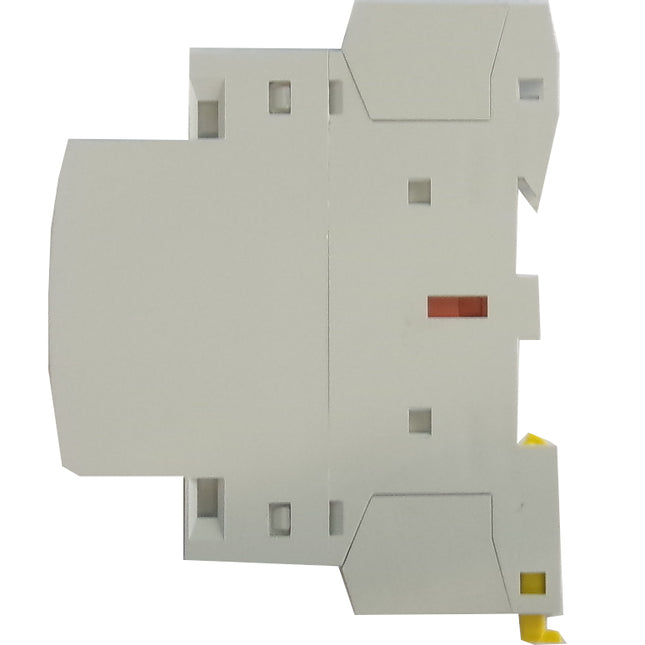

Fastron FPC1-25-20C-24VAC/DC, Two Pole 2 x SPST NO Modular Contactor 230VAC 25 Amp, 24VAC/DC 50/60Hz Coil Voltage, Hum Free Features 25 Amp (rms) @ 230VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-25-20C-24VAC/DC Switching Type 2 x SPST NO Approvals CE Coil Voltage 230VAC 50/60Hz Load Current Rating 25 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 24VAC/DC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

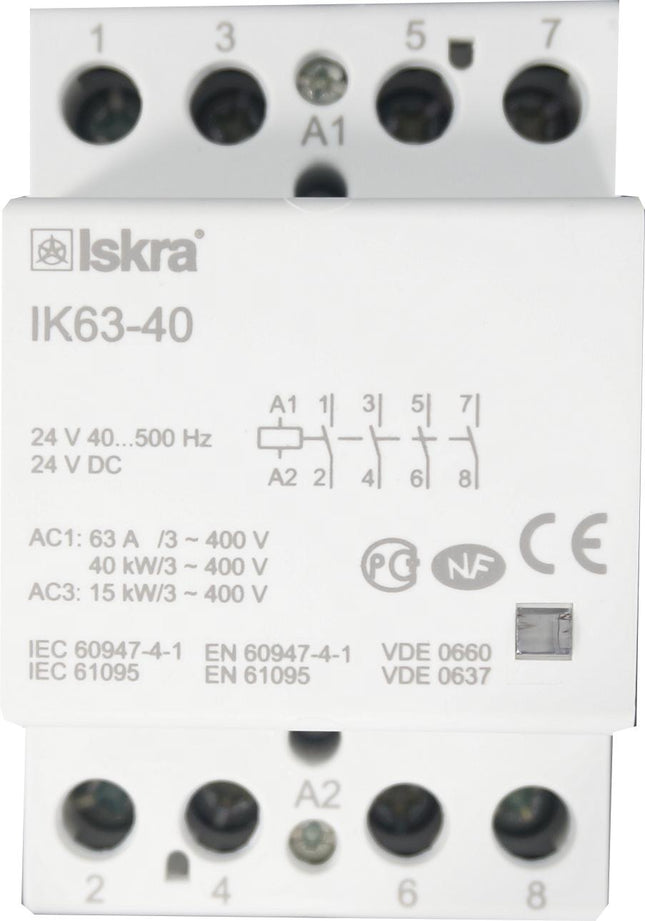

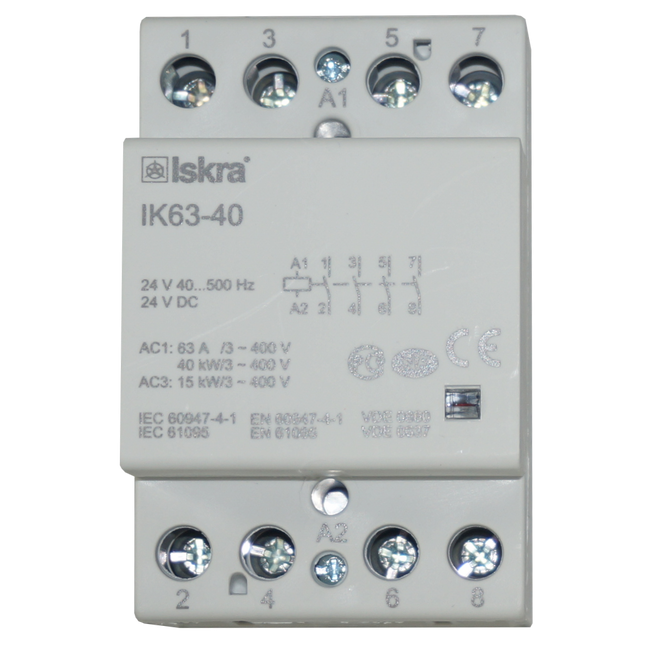

Iskra IK63-40-24VAC/DC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 63 Amp, 24VAC/DC 40-500Hz Control Voltage, Hum Free Features 63 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number IK63-40-24VAC/DC Switching Type 4 x SPST NO Approvals CE Coil Voltage 24VAC/DC, 40-500Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC, 40-500Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Contactor Datasheet

Read more less

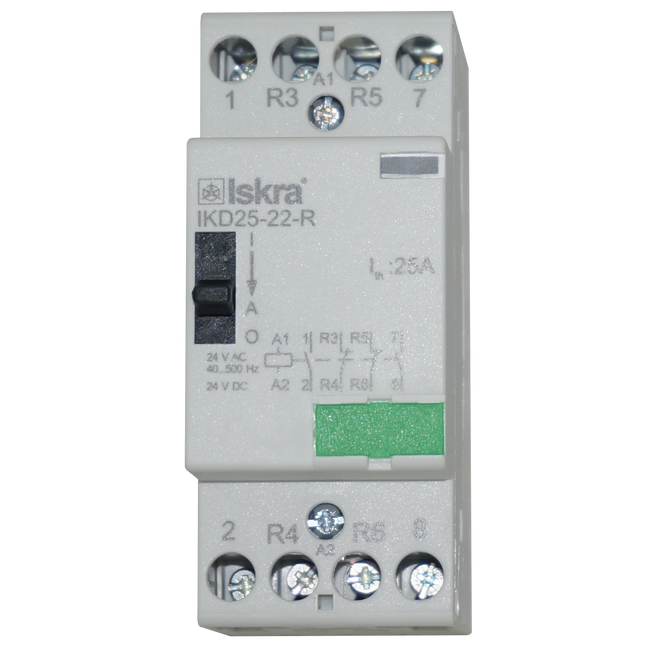

Iskra IKD25-22-R-24VAC/DC, 4 Pole 2 x SPST NO, 2 x SPST NC, Modular Contactor 440VAC 25 Amp, 24VAC/DC 40-500Hz Control Voltage, Hum Free with Manual Override Features 25 Amp (rms) @ 240VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number IKD25-22-R-24VAC/DC 40-500Hz Switching Type 2 x SPST NO, 2 x SPST NC Approvals CE Coil Voltage 24VAC/DC 40-500Hz Load Current Rating 25 Amp Special Feature Hum Free, Manual Override Mounting Style DIN Rail Mount Load Voltage Range 440VAC 40-500Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Contactor Datasheet

Read more less

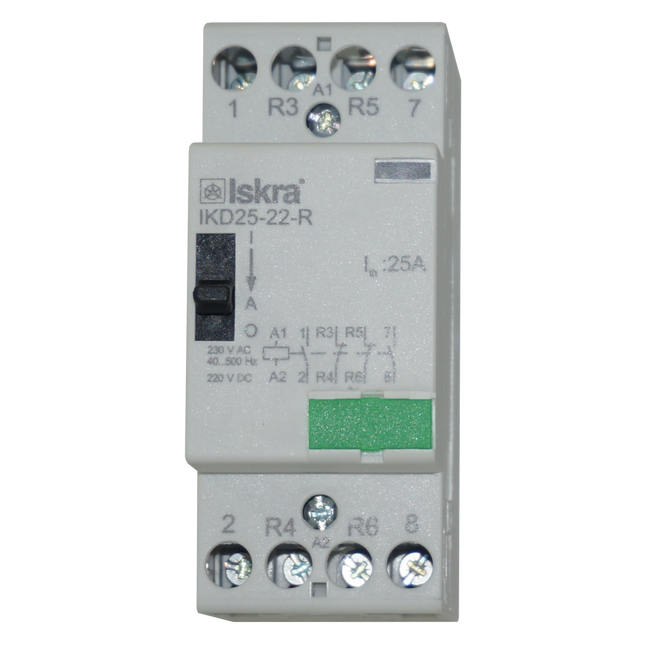

Iskra IKD25-22-R-230VAC, Iskra 4 Pole 2 x SPST NO, 2 x SPST NC, Modular Contactor 440VAC 25 Amp, 240VAC Control Voltage, 40-500Hz, Hum Free with Manual Overide, Can Replace MC-25-240-R-2NO2NC Features 25 Amp (rms) @ 240VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number IKD25-22-R-230VAC Switching Type 2 x SPST NO, 2 x SPST NC Approvals CE Coil Voltage 230/240VAC/220VDC Load Current Rating 25 Amp Special Feature Hum Free, Manual Overide Mounting Style DIN Rail Mount Load Voltage Range 440VAC Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Contactor Datasheet

Read more less

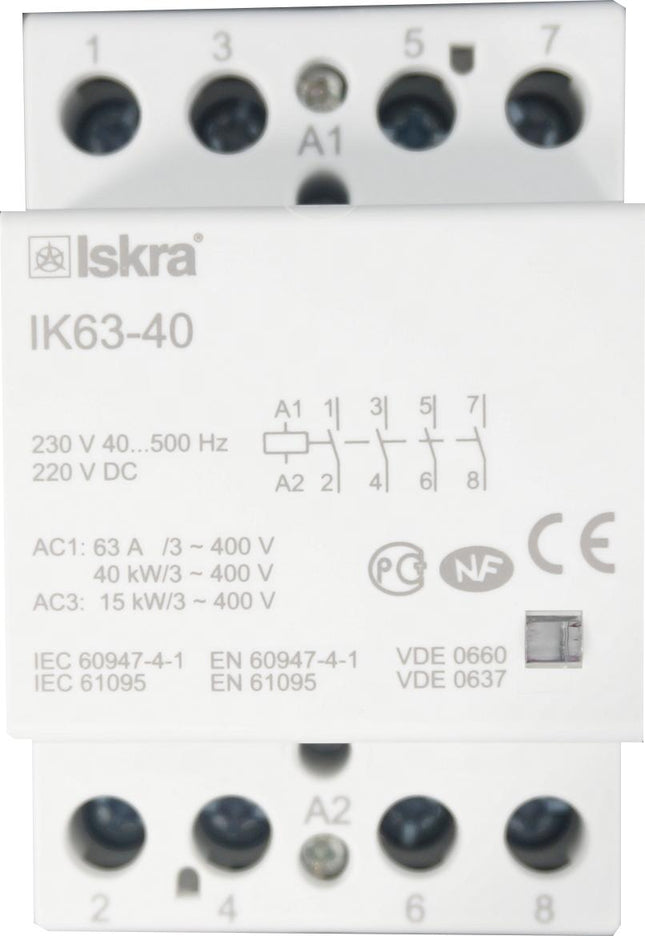

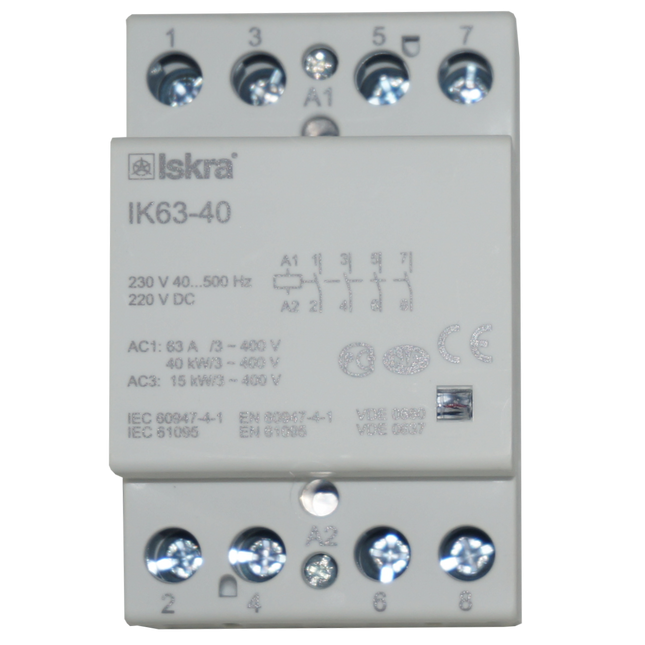

Iskra IK63-40-230VAC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 63 Amp, 230VAC/220VDC 40-500Hz Control Voltage, Hum Free, Can Replace MC-63-240-4NO  Features 63 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number IK63-40-230VAC Switching Type 4 x SPST NO Approvals CE Coil Voltage 230VAC/220VDC, 40-500Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC, 40-500Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Contactor Datasheet

Read more less
