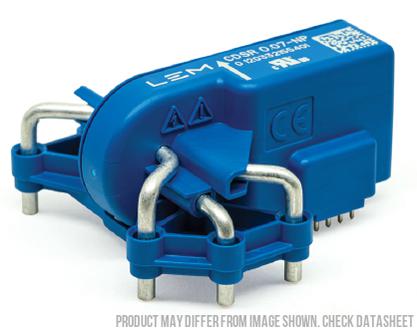

CDSR 0.7-NPDT, O/L RCD transducer for AC Wallbox with 6mA DC and 30 mA AC tripping (Ip 32 A) , Ip = 32 Amp, 3.3VDC supply Features 3 Phase, DC & AC RCD current transducer using a flux-gate principle PCB mounting 3.3VDC power supply Bistream Delta Sigma Modulator Output Current Detection Digital Output Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 10Hz Response time better than 1 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Electrocution Protection 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Application Domains Industrial Specification LEM Part Number CDSR 0.7-NPDT Technology Open Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 32Amp Output Delta Sigma Modulator, Trigger Outut Isolation 5.4kV Bandwidth DC-10Hz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy N/A Aperture N/A Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

CTSR 0.3-TP/SP2, C/L Hall Effect Earth Leakage Current Sensor, 300mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 3.5 kHz Response time better than 50 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CTSR 0.3-TP/SP2 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Output 5V Analogue Isolation 5.4kV Bandwidth DC-3.5kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Aperture ø 20.1mm Specail Feature No retention pin Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

CTSR 0.3-P/SP4, C/L Hall Effect Earth Leakage Current Sensor, 300mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 3.5 kHz Response time better than 50 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CTSR 0.3-P/SP4 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Output 5V Analogue Isolation 5.4kV Bandwidth DC-3.5kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Aperture ø 20.1mm Special Feature No retention pin Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

LEM CTSR 0.3-P/SP11, C/L Hall Effect Earth Leakage Current Sensor, 300mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 3.5 kHz Response time better than 50 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CTSR 0.3-P/SP11 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Measuring Range +/-850 mA Output 2.5Vref Isolation 5.4kV Bandwidth DC-3.5kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Aperture ø 20.1mm Special Feature No retention pin, Test winding included, Extended Measuring Range, Different Pin Out Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

CTSR CTSR 0.3-TP/SP10, C/L Hall Effect Earth Leakage Current Sensor, 300mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 3.5 kHz Response time better than 50 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CTSR 0.3-TP/SP10 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Output 2.5Vref Isolation 5.4kV Bandwidth DC-3.5kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Aperture ø 20.1mm Special Feature No retention pin, Test winding included Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

CTSR 0.3-TP/SP14, C/L Hall Effect Earth Leakage Current Sensor, 300mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 3.5 kHz Response time better than 50 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CTSR 0.3-TP/SP14 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Output 2.5Vref Isolation 5.4kV Bandwidth DC-3.5kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Aperture ø 20.1mm Special Feature No retention pin, Test winding included Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

LEM CTSR 0.3-P/SP1, C/L Hall Effect Earth Leakage Current Sensor, 300mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 3.5 kHz Response time better than 50 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CTSR 0.3-P/SP1 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Measuring Range +/-850 mA Output 2.5Vref Isolation 5.4kV Bandwidth DC-3.5kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Aperture ø 20.1mm Special Feature No retention pin, Test winding included, Extended Measuring Range, Different Pin Out Unit Weight 28g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

LEM CTSR 0.3-P/SP11, C/L Hall Effect Earth Leakage Current Sensor, 300mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Wide Aperture Bandwidth : DC and 3.5 kHz Response time better than 50 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CTSR 0.3-P/SP11 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Measuring Range +/-850 mA Output 2.5Vref Isolation 5.4kV Bandwidth DC-3.5kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Aperture ø 20.1mm Special Feature No retention pin, Test winding included, Extended Measuring Range, Different Pin Out Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

CT 0.1-P, C/L Hall Effect Earth Leakage Current Sensor, 100mA Features DC & AC earth leakage current transducer using a flux-gate principle PCB mounting ±15V power supply ±5V output @ IPN Isolated plastic case recognized according to UL94-V0. Advantages Small size Bandwidth : DC and 40 up to 7..18 kHz Response time better than 60 ms Cost effective, compact alternative to classical RCDs (Residual Current Device) Applications Earth leakage detection in transformerless solar inverters 1st human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter) Current leakage detection in stacked DC sources Single phase or three phase differential current measurement up to ±30A per wire (DC or AC) Application Domains Industrial Specification LEM Part Number CT 0.1-P Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 100 mAmp Output 5V Analogue Isolation 2.5kV Bandwidth DC-7kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 125°C Accuracy 1% Aperture ø 11mm Unit Weight 10g Factory Pack Qty 10 Datasheet Product Datasheet Soon to be Phased out - See CTSR Series for new 5VDC supply design

Read more less
