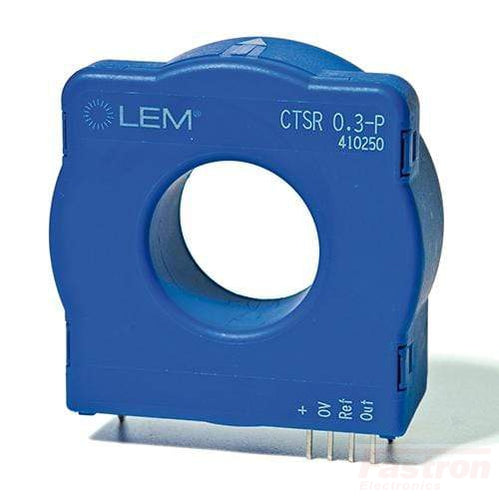

CTSR 0.3-P/SP10, C/L Hall Effect Current Transducer,Ipn = 300mA, 20.1mm round aperture, 2.5Vref out, 5VDC supply, X = 1.9%, Extended Measuring Range
Rated 3.5/5 based on 11 customer reviews

CTSR 0.3-P/SP10, C/L Hall Effect Current Transducer,Ipn = 300mA, 20.1mm round aperture, 2.5Vref out, 5VDC supply, X = 1.9%, Extended Measuring Range

  • Order within

Free Shipping for $300 Spend

Available: Sold Out
$72.01
$79.21inclGST

Free Shipping for $300 Spend

Successful pre-order.Thanks for contacting us!

LEM CTSR 0.3-P/SP11, C/L Hall Effect Earth Leakage Current Sensor, 300mA

Features

  • DC & AC earth leakage current transducer using a flux-gate principle
  • PCB mounting
  • ±15V power supply
  • ±5V output @ IPN
  • Isolated plastic case recognized
  • according to UL94-V0.

Advantages

  • Small size
  • Wide Aperture
  • Bandwidth : DC and 3.5 kHz
  • Response time better than 50 ms
  • Cost effective, compact alternative to classical RCDs (Residual Current Device)

Applications

  • Earth leakage detection in transformerless solar inverters
  • 1st human contact protection of PV arrays
  • Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter)
  • Current leakage detection in stacked DC sources
  • Single phase or three phase differential current measurement up to ±30A per wire (DC or AC)

Application Domains

  • Industrial

LEM CTSR 0.3-P/SP11, C/L Hall Effect Earth Leakage Current Sensor, 300mA

Features

  • DC & AC earth leakage current transducer using a flux-gate principle
  • PCB mounting
  • ±15V power supply
  • ±5V output @ IPN
  • Isolated plastic case recognized
  • according to UL94-V0.

Advantages

  • Small size
  • Wide Aperture
  • Bandwidth : DC and 3.5 kHz
  • Response time better than 50 ms
  • Cost effective, compact alternative to classical RCDs (Residual Current Device)

Applications

  • Earth leakage detection in transformerless solar inverters
  • 1st human contact protection of PV arrays
  • Failure detection in power sources Symmetrical fault detection (e.g. after motor inverter)
  • Current leakage detection in stacked DC sources
  • Single phase or three phase differential current measurement up to ±30A per wire (DC or AC)

Application Domains

  • Industrial
LEM Part Number CTSR 0.3-P/SP11
Technology Closed Loop Hall Effect
ROHS Yes
Supply Voltage +/-15VDC
Load Current (RMS + DC) 300mA
Measuring Range +/-850 mA
Output 2.5Vref
Isolation 5.4kV
Bandwidth DC-3.5kHz
Mounting Style PCB Mount
Operating Temperature Range -40°C / 105°C
Accuracy 1%
Aperture ø 20.1mm
Special Feature No retention pin, Test winding included, Extended Measuring Range, Different Pin Out
Unit Weight 28g
Factory Pack Qty 10
