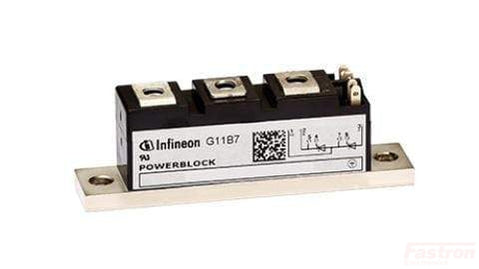

Infineon TT61N08KOF Dual Thyristor Module Features Pressure Contact Technology Optimised for Deep Cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Center Tapped Transformers Specification Infineon Part Number TT61N08KOF Vrrm 800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 61 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.55 kA VF(to) 0.8V Tj(max) 130°C rF 3.4mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.52°C/W R th(c-h) 0.16°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See VSKC91/16 for Vishay Solder Bonded replacement. See TT104N14KOF-K for Infineon Pressure Contact Alternative

Read more less

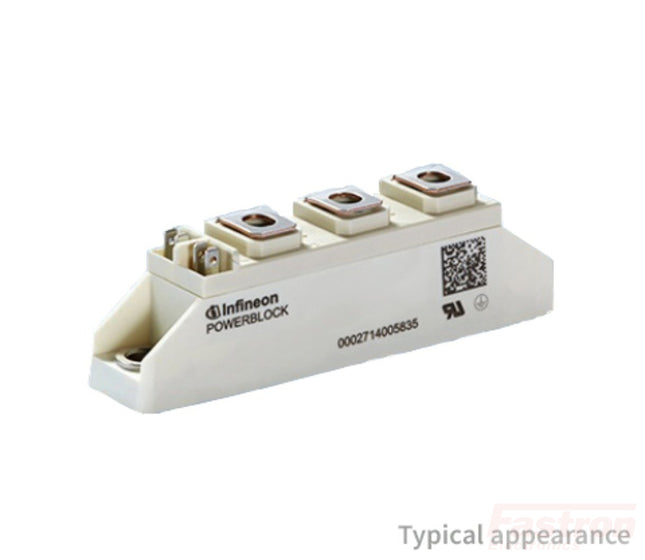

Infineon TT60N16SOF Dual Thyristor Module Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Infineon Part Number TT60N16SOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 119 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.5 kA VF(to) 1.0V Tj(max) 125°C rF 4.8mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 100mA R th(j-c) 0.49°C/W R th(c-h) 0.22°C/W Weight 75g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives , Obsolete, See MCC95-16io1B or TT120N16SOF solder bonded replacement. See TT92N16KOF or TT104N12KOF for Infineon Pressure Contact Alternative

Read more less

Infineon TT570N16KOF, Dual Thyristor Module, 570 Amp, 1600V Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT570N16KOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 570 Amp Package Size W:60mm L:144mm D:52mm Itsm 17 kA VF(to) 0.9V Tj(max) 125°C rF 0.27mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCC552-16io1

Read more less

Infineon TT500N16KOF, Dual Thyristor Module, 500 Amp, 1600V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT500N16KOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 500 Amp Package Size W:60mm L:144mm D:52mm Itsm 17 kA VF(to) 0.9V Tj(max) 125°C rF 0.27mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCC552-16io1

Read more less

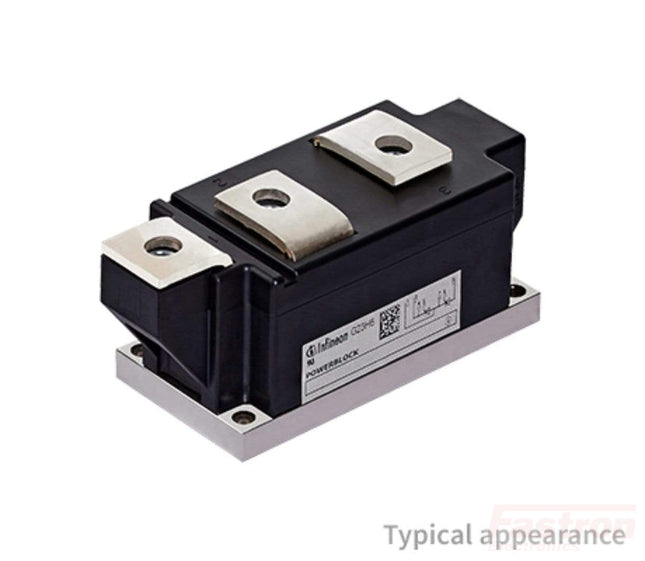

Infineon TT425N16KOF Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT425N16KOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 425 Amp Package Size W:60mm L:144mm D:52mm Itsm 14.5 kA VF(to) 0.9V Tj(max) 125°C rF 0.3mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.078°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives TT500N16KOF TT570N16KOF MCC552-16io2

Read more less

Infineon TT330N16AOF Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT330N16AOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 330 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.8V Tj(max) 135°C rF 0.6mΩ I(gt) @ 25 Deg C 250mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.059°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCC312-16io1 for Solder bonded alternative

Read more less

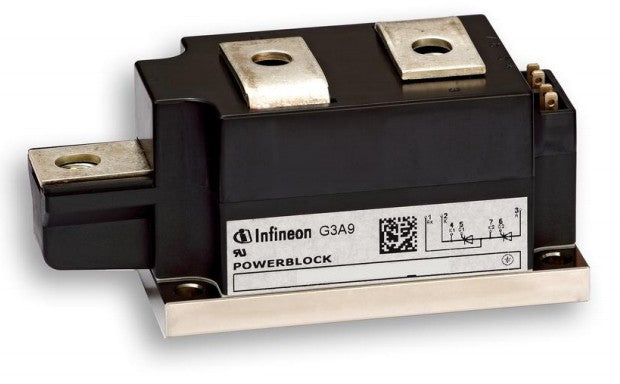

Infineon TT270N16AOF Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT270N16AOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 330 Amp Package Size W:50mm L:115mm D:52mm Itsm 10.05 kA VF(to) 0.8V Tj(max) 125°C rF 0.58mΩ I(gt) @ 25 Deg C 250mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives , Obsolete, See MCC312-16io1 or TT330N16AOF

Read more less

Infineon TT122N22KOF Dual Thyristor Module Features Thyristor for line frequency Solder-Solder Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD122N22KOF Vrrm 2200V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 122 Amp Package Size W:34mm L:94mm D:30mm Itsm 3.3 kA VF(to) 1.0V Tj(max) 130°C rF 2.15mΩ I(gt) @ 25 Deg C 200mA Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.20°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See MCC95-16io1 for IXYS Solder Contact replacement or TT104N14KOF Infineon Alternative

Read more less

Infineon TT104N14KOF Dual Thyristor Module Features Pressure Contact Technology Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Infineon Part Number TT104N14KOF Vrrm 1400V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 104 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.05 kA VF(to) 0.85V Tj(max) 150°C rF 2.15mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.37°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCC95-16io1B for IXYS replacement. See TT92N16KOF for Infineon Pressure Contact possible Alternative
