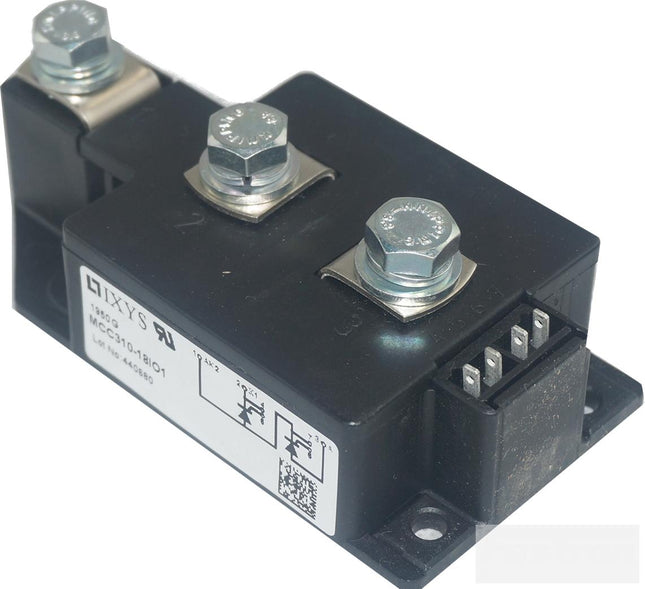

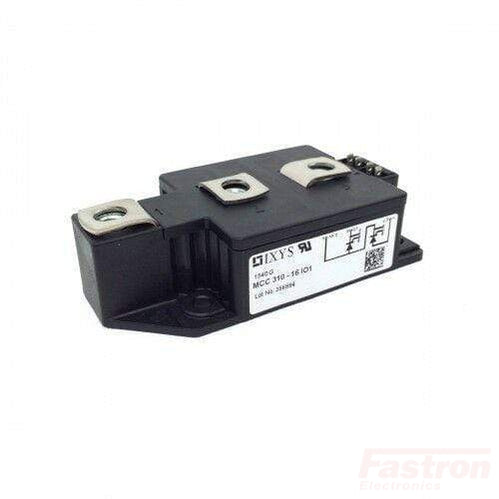

Westcode-IXYS-Littlefuse MCC310-16io1, Dual Thyristor Module, 320 Amp, 1600V, 60 x 32mm Slim package Features Thyristor for line frequency Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCC310-16io1 Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 320 Amp Package Size W:60mm L:116mm D:32mm Itsm 8 kA VF(to) 1.09V Tj(max) 125°C rF 1.16mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.11°C/W R th(c-h) 0.04°C/W Weight 255g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet

Read more less

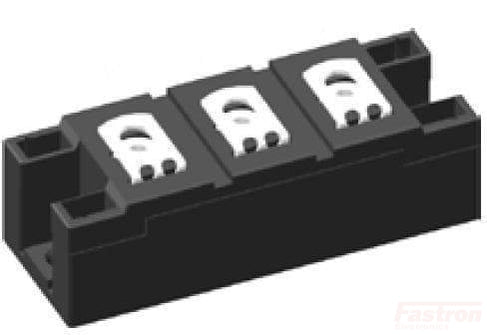

Westcode-IXYS-Littlefuse MCC162-18io1, 162 Amp, 1800V, Dual Thyristor Module Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MCC162-18io1 Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6 kA VF(to) 0.88V Tj(max) 125°C rF 1.15mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.155°C/W R th(c-h) 0.07°C/W Weight 150g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See TT162N16KOF for Infineon Pressure Contact Alternative

Read more less

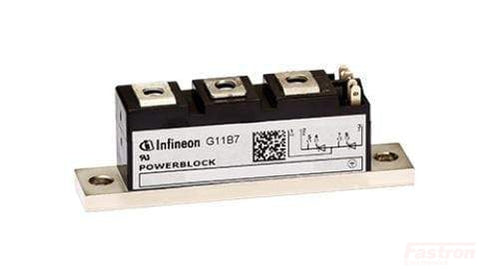

Infineon TT92N12KOF-K Dual Thyristor Module Features Pressure Contact Technology Optimised for Deep Cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Center Tapped Transformers Specification Infineon Part Number TT92N12KOF-K Vrrm 1200V Diode Configuration Common Cathode Dual Thyristor Module IF(av) @ 85 Deg C 92 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.05 kA VF(to) 0.85V Tj(max) 130°C rF 2.15mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.37°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See VSKC91/16 for Vishay Solder Bonded replacement. See TT104N14KOF-K for Infineon Pressure Contact Alternative

Read more less

Infineon TT61N12KOF-K Dual Thyristor Module Features Pressure Contact Technology Optimised for Deep Cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Center Tapped Transformers Specification Infineon Part Number TT61N12KOF-K Vrrm 1200V Diode Configuration Common Cathode Dual Thyristor Module IF(av) @ 85 Deg C 61 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.55 kA VF(to) 0.8V Tj(max) 130°C rF 3.4mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.52°C/W R th(c-h) 0.16°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See VSKC91/16 for Vishay Solder Bonded replacement. See TT104N14KOF-K for Infineon Pressure Contact Alternative

Read more less

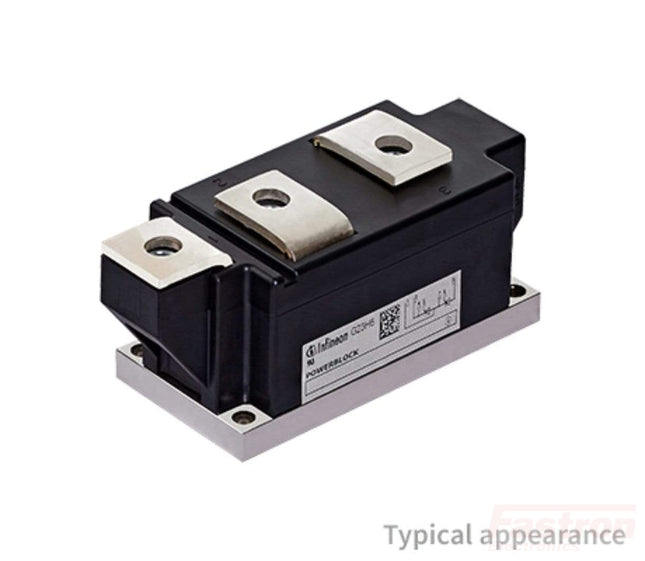

Infineon TT250N12KOF-K Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT250N16KOF-K Vrrm 1600V Diode Configuration Common Cathode Dual Thyristor Module IF(av) @ 85 Deg C 250 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.8V Tj(max) 125°C rF 0.7mΩ I(gt) @ 25 Deg C 200mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion

Read more less

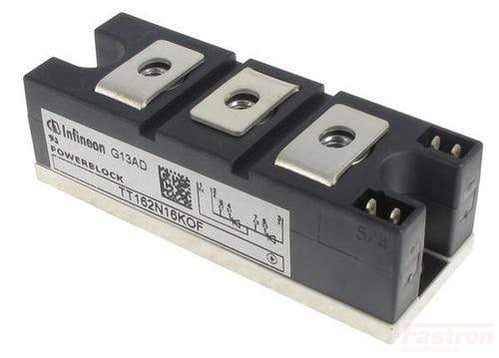

Infineon TT162N16KOF-K Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 34mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT162N12KOF-K Vrrm 1200V Diode Configuration Common Cathode Dual Thyristor Module IF(av) @ 85 Deg C 162 Amp Package Size W:34mm L:94mm D:30mm Itsm 5.2 kA VF(to) 0.85V Tj(max) 125°C rF 0.95mΩ I(gt) @ 25 Deg C 150mA Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.1°C/W R th(c-h) 0.03°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion

Read more less

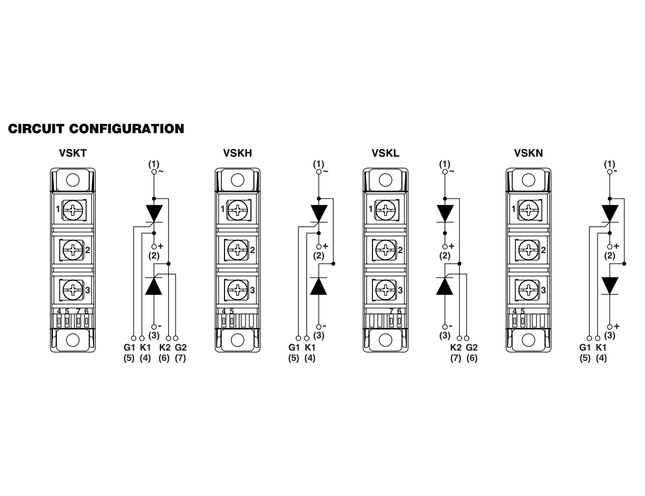

Vishay VSKT91/14, Dual Thyristor Module, 91 Amp, 1400V Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Vishay Part Number VSKT91/14 Vrrm 1400V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 95 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 2.0 kA VF(to) 1.1V Tj(max) 125°C rF 2.38mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm R th(j-c) 0.22°C/W R th(c-h) 0.1°C/W Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India   Datasheet OLD Product Datasheet 2018 Product Datasheet Alternatives See TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

Vishay VSKT56/14, Dual Thyristor Module, 56 Amp, 1400V Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Vishay Part Number VSKT56/14 Vrrm 1400V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 60 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 1.2 kA VF(to) 1.02V Tj(max) 125°C rF 3.77mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm R th(j-c) 0.35°C/W R th(c-h) 0.1°C/W Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India Datasheet OLD Product Datasheet 2018 Product Datasheet Alternatives See TT61N12KOF, TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or MCC95-16 for IXYS solder bonded Alternative and TT60N16SOF for Infineon Solder Bonded Alternative

Read more less
