MTC330-16-415F3D, Dual Thyristor Module, 330 Amp, 1600V, 50mm package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC330-16-415F3D Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 7.2 kA VF(to) 0.85V Tj(max) 125°C rF 0.9mΩ I(gt) @ 25 Deg C 30-180mA Terminals M10 Screw Hole Centres 38mm x 88mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.09°C/W R th(c-h) 0.04°C/W Weight 1260g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCC312-16io1 for Solder bonded alternative

Read more less

MTC400-36-415F3D, Dual Thyristor Module, 400 Amp, 3600V, 60mm package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC400-36-415F3D Vrrm 3600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 400 Amp Package Size W:60mm L:115mm D:52mm Itsm 12.5 kA VF(to) 0.98V Tj(max) 125°C rF 0.88mΩ I(gt) @ 25 Deg C 30-200mA Terminals M10 Screw Hole Centres 112mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.054°C/W R th(c-h) 0.024°C/W Weight 1500g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Techsem MTC182-16-216F3B, 162 Amp, 1800V, Dual Thyristor Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MTC182-16-216F3B Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 7 kA VF(to) 0.80V Tj(max) 125°C rF 1.26mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.16°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See TT162N16KOF for Techsem Pressure Contact Alternative or MCC162-18 for IXYS Solder Bonded Alternative

Read more less

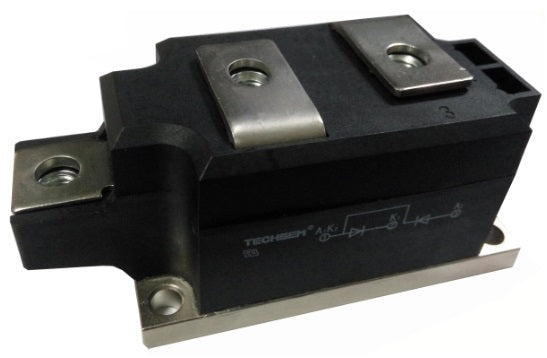

MTC300-36-415F3, Dual Thyristor Module, 300 Amp, 3600V, 50mm package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC300-36-415F3 Vrrm 3600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 7.2 kA VF(to) 0.85V Tj(max) 125°C rF 0.9mΩ I(gt) @ 25 Deg C 30-180mA Terminals M10 Screw Hole Centres 38mm x 88mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.09°C/W R th(c-h) 0.04°C/W Weight 1260g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCC312-16io1 for Solder bonded alternative

Read more less

Semikron SKKT27/16E, Dual Thyristor Module, 27 Amp, 1600V, Without Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT27/16E Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 27 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See MCC16-16io1b for IXYS alternative

Read more less

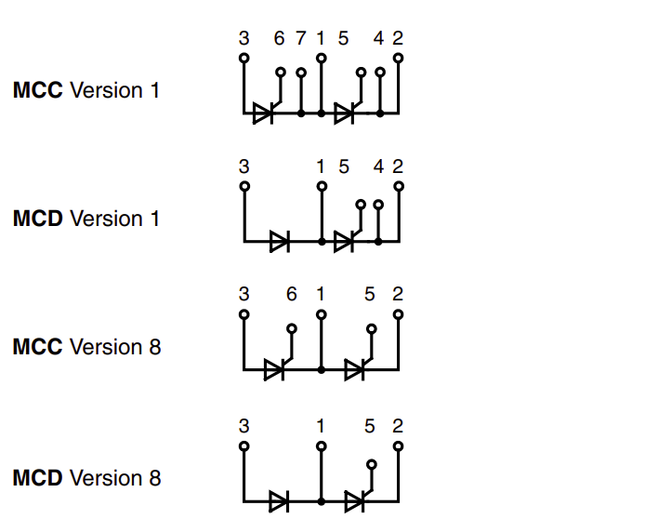

Westcode-IXYS-Littlefuse MCC56-16io1B, Dual Thyristor (SCR) Module, 56 Amp, 1600V Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MCC56-16io1B Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 60 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.5 kA VF(to) 0.85V Tj(max) 125°C rF 3.7mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.45°C/W R th(c-h) 0.2°C/W Weight 85g Mounting Torque 3.25 Nm (3.25 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet Alternatives See VSKT56/14 for Vishay replacement.

Read more less

Techsem MTC182-18-216F3B, 162 Amp, 1800V, Dual Thyristor Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MTC182-18-216F3B Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 7 kA VF(to) 0.80V Tj(max) 125°C rF 1.26mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.16°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See TT162N16KOF for Techsem Pressure Contact Alternative or MCC162-18 for IXYS Solder Bonded Alternative

Read more less

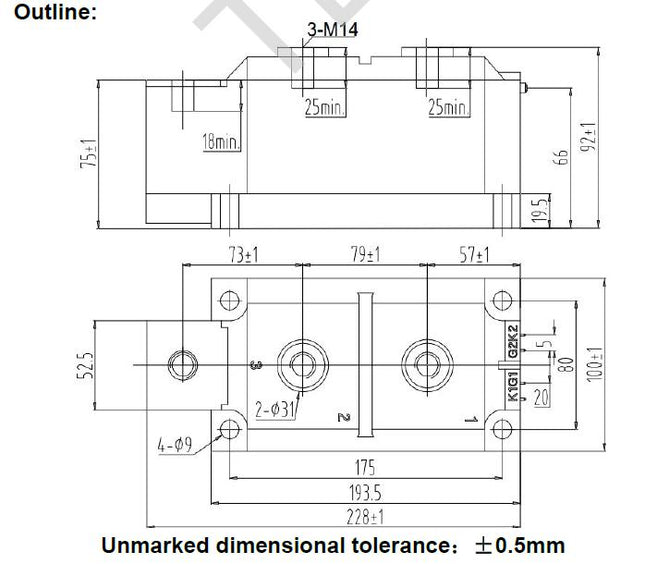

Techsem MTC2000-18-436F3-R, Dual Thyristor Module, 2000 Amp, 1800V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 2500V Isolation 77mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC2000-18-436F3-R Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 2000 Amp Package Size W:100mm L:230mm D:92mm Itsm 54.7 kA (VR=0, t=10ms half sine) VF(to) 0.8V Tj(max) 125°C rF 0.14mΩ I(gt) @ 25 Deg C 200mA Terminals M12 Screw Hole Centres 132mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.025°C/W R th(c-h) 0.018°C/W Weight 3500g Mounting Torque 8 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Techsem MTC570-18-416F3, Dual Thyristor Module, 570 Amp, 1800V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC570-18-416F3 Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 500 Amp Package Size W:60mm L:144mm D:52mm Itsm 17 kA VF(to) 0.9V Tj(max) 125°C rF 0.27mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCC552-16io1 See TT570N16KOF

Read more less
