Semikron SKKT27B12E, Dual Thyristor Module, 27 Amp, 1200V, With Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT27B12E Vrrm 1200V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 27 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See MCC16-16io1b for IXYS alternative

Read more less

Semikron SKKT92/16E, Dual Thyristor Module, 92 Amp, 1600V, with Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT92/16E Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 92 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm (with Aux Cathode ) Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

Techsem MTC200-18-413F3, 200 Amp, 1600V, Dual Thyristor Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MTC200-18-413F3 Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 200 Amp Package Size TO-240AA W:50mm L:93mm D:30mm Itsm 8 kA VF(to) 0.85V Tj(max) 125°C rF 1.14mΩ Terminals M8 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.155°C/W R th(c-h) 0.07°C/W Weight 150g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See DD260N12K for Techsem Pressure Contact Alternative or MCC312-16 for IXYS Solder Bonded Alternative

Read more less

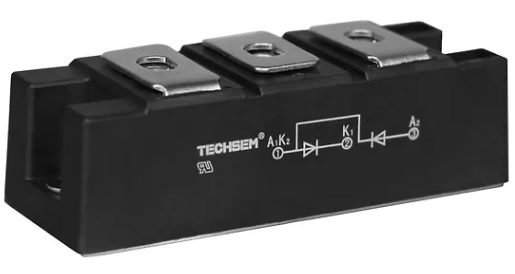

Techsem MTC200-18-216F3EB, 200 Amp, 1600V, Dual Thyristor Module, 32mm Base Width Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MTC200-18-216FE3 Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 200 Amp Package Size TO-240AA W:32mm L:94mm D:30mm Itsm 7 kA VF(to) 0.80V Tj(max) 125°C rF 1.130mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.140°C/W R th(c-h) 0.080°C/W Weight 150g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See DD260N12K for Techsem Pressure Contact Alternative or MCC312-16 for IXYS Solder Bonded Alternative

Read more less

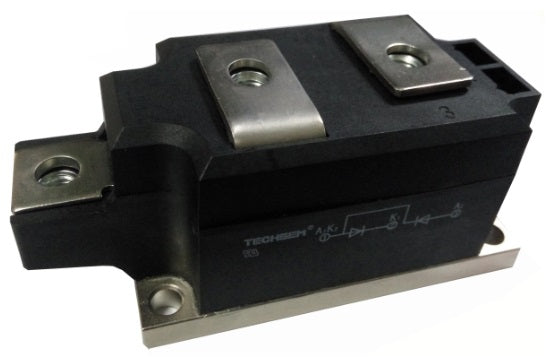

MTC300-16-413F3D, Dual Thyristor Module, 300 Amp, 1600V, 50mm package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC300-16-413F3D Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 7.2 kA VF(to) 0.85V Tj(max) 125°C rF 0.9mΩ I(gt) @ 25 Deg C 30-180mA Terminals M10 Screw Hole Centres 38mm x 88mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.09°C/W R th(c-h) 0.04°C/W Weight 1260g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCC312-16io1 for Solder bonded alternative

Read more less

Techsem MTC110-16-223F3, Dual Thyristor Module, 110 Amp, 1600V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MTC110-16-223F3 Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 125°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKH91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Semikron SKKT42/18E, Dual Thyristor Module, 42 Amp, 1800V, With Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT42/18E Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 42 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less
