Westcode-IXYS-Littlefuse N1718NC200, Thyristor(SCR) Capsule, 1718Amp, 2000V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS Part Number N1718NC200 Vrrm 2000V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 1718 Amp Package Size ø74 x 26mm Itsm 27.2 kA VF(to) 0.979V Tj(max) 125°C rF 0.169mΩ Gate Terminals Faston R th(j-c) (double sided cooled 180°sin) 0.024°C/W R th(c-h) (double sided cooled) 0.048°C/W Weight 510g Clamping Force 19 - 26kN Factory Pack Qty 6 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Alternatives T1190N16TOF VT SKT1200/18E Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Semikron SKT1200/18E Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Semikron Part Number SKT1200/18E Vrrm 1800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 1200 Amp Package Size ø74x 26mm Itsm 30 kA VF(to) 0.95V Tj(max) 125°C rF 0.18mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.054°C/W R th(c-h) (double sided cooled) 0.0224°C/W Weight 480g Clamping Force 22 - 25kN Factory Pack Qty 12 Certification ROHS Semikron Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse W7045MC060, Rectifier Diode PUK 5256Amp, 600, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS-Littlefuse Part Number W7045MC060 Vrrm 600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 5256 Amp Package Size ø74 x 26mm Itsm 81 kA VF(to) 0.7V Tj(max) 180°C rF 0.04mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.0166°C/W R th(c-h) (double sided cooled) 0.0025°C/W Weight 530g Clamping Force 30 - 60kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives d5810n04 Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N3175HE180, Thyristor(SCR) PUK 2150 Amp, 1800V, 101/35 Features Very low forward voltage drop Very low leakage current International standard package 101/35 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode IXYS Part Number N3175HE180 Vrrm 1800V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2150 Amp Package Size ø101 x 35mm Itsm 44 kA VF(to) 0.90V Tj(max) 125°C rF 0.106mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.0125°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 900g Clamping Force 30 - 65kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters Germany Datasheet Product Datasheet Alternatives t2180n18tof-vt Heatsink Heatsink Profiles

Read more less

Infineon T2180N18TOF VT Rectifier Thyristor (SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 100/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number T2180N18TOF VT Vrrm 1800V Diode Configuration Thyristor (SCR) Capsule (PUK) IF(av) @ 85 Deg C 2180 Amp Package Size ø100 x 26mm Itsm 44 kA VF(to) 0.90V Tj(max) 125°C rF 0.106mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.0125°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 900g Clamping Force 30 - 65kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives n3175he180 Heatsink Heatsink Profiles

Read more less

Infineon D690S20T, Fast Diode Capsule, Fast 650 Amp, 2000V, Replaces D459S1800T and D650S20T Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D690S20T Vrrm 1800V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 560 Amp Package Size ø58 x 26mm Itsm 12.2 kA VF(to) 1V Tj(max) 125°C Qr 370uA/s rF 0.45mOhm Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.048C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 270g Clamping Force 9-13kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives M0914lc200 Heatsink Heatsink Profiles

Read more less

Infineon D291S45T, Fast Diode Capsule, Soft turn off at high dv/dt 291 Amp, 4500V Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D291S45T Vrrm 4500V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 291 Amp Package Size ø58 x 26mm Itsm 5.2 kA VF(to) 1.9V Tj(max) 125°C Qr 950uAs rF 1.76mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.04C/W R th(c-h) (double sided cooled) 0.006°C/W Weight 250g Clamping Force 9-13kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

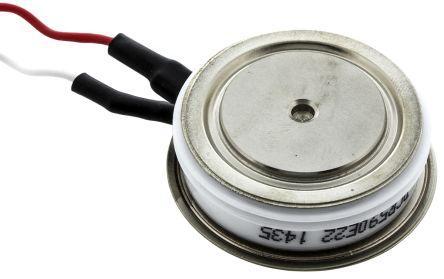

Westcode-IXYS-Littlefuse N3039TC520, Thyristor (SCR) Capsule, 3039 Amp @ 55°C 5200V, 120/26mm Features Very low forward voltage drop Very low leakage current International standard package 120/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode Part Number N3039TC520 Vrrm 5200V Diode Configuration Thyristor (SCR) Capsule (PUK) IF(av) @ 55 Deg C 3039 Amp Package Size ø120 x 26mm Itsm 64 kA Tj(max) 125°C Gate Terminals C/W Gate Leads Weight 1.45kg Clamping Force 63 - 84kN Factory Pack Qty 12 Certification ROHS Westcode Headquarters UK Datasheet ABB Equivalent - Made to match this part Product Datasheet Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N4085ZC120, Thyristor (SCR) Capsule, 4085 Amp @ 55°C 1200V, 110/36mm Features Very low forward voltage drop Very low leakage current International standard package 110/36 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode Part Number N4085ZC120 Vrrm 1200V Diode Configuration Thyristor (SCR) Capsule (PUK) IF(av) @ 55 Deg C 4085 Amp Package Size ø111 x 36mm Itsm 64 kA VF(to) 0.85V Tj(max) 125°C rF 0.07mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-k) (double sided cooled 180°sin) 0.011°C/W Weight 1.7kg Clamping Force 27 - 47kN Factory Pack Qty 12 Certification ROHS Westcode Headquarters UK Datasheet Product Datasheet Alternatives DCR3710V14 Heatsink Heatsink Profiles

Read more less

Infineon T930N36TOF Thyristor(SCR) Capsule, 930Amp, 3600V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number T930N36TOF Vrrm 3600V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 930 Amp Package Size ø74 x 26mm Itsm 19.5 kA VF(to) 1.0V Tj(max) 125°C rF 0.43mΩ Gate Terminals Fastron R th(j-c) (double sided cooled 180°sin) 0.0215°C/W R th(c-h) (double sided cooled) 0.0035°C/W Weight 540g Clamping Force 20 - 45kN Factory Pack Qty 6 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives N1159NC400 DCR1260F42 Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N1159NC400, Thyristor(SCR) PUK, 1159Amp, 4200V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS-Littlefuse Part Number N1159NC400 Vrrm 4000V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 1159 Amp Package Size ø74 x 26mm Itsm 14.5 kA VF(to) 1.1V Tj(max) 125°C rF 0.574mΩ Gate Terminals Faston R th(j-c) (double sided cooled 180°sin) 0.022°C/W R th(c-h) (double sided cooled) 0.044°C/W Weight 510g Clamping Force 19 - 26kN Factory Pack Qty 6 Certification ROHS Westcode-IXYS-Littlefuse Headquarters UK Datasheet Product Datasheet Alternatives DCR1260F42 Contact Us for Possible Replacement Heatsink Heatsink Profiles
