Diode and Thyristor(SCR) Capsules(PUK)
-
T690N06TOF, Thyristor(SCR) PUK 690 Amp, 1600V, 41/14
Infineon T690N06TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T690N06TOF Vrrm 600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 694 Amp Package Size ø41 x 14mm Itsm 7.8 kA VF(to) .8V Tj(max) 125°C rF 0.44mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.051°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 70g Clamping Force 4 - 8kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete, Contact Us for Possible Replacement Heatsink Heatsink Profiles
$168.58
$198.92 inclGST -
ZP7100A400, Welding Diode 7000 Amp, 400V 61/8 44mm Pole face Replaces ABB 5SDD71B0210
ZP7100A400, Welding Diode 7000 Amp, 400V 61/8 44mm Pole face Replaces ABB 5SDD71B0200 Features Very low forward voltage drop Very low leakage current International standard package 61/8 Package Press Mounted Double or Single Sided Cooling Applications Welding Machinery Specification Infineon Part Number ZP7100A400 Vrrm 400V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 7000 Amp Package Size ø61.3 x 8.5mm Gate Terminals N/A R th(c-h) (double sided cooled) 6°C/W Weight 0.5kg Clamping Force 22kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Heatsink Heatsink Profiles Datasheet Datasheet
$345.00
$407.10 inclGST -
SKT1200/16E, Thyristor(SCR) PUK, 1200 Amp, 1600V, 74/26
Semikron SKT1200/16E Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Semikron Part Number SKT1200/16E Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 1200 Amp Package Size ø74x 26mm Itsm 30 kA VF(to) 0.95V Tj(max) 125°C rF 0.18mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.054°C/W R th(c-h) (double sided cooled) 0.0224°C/W Weight 480g Clamping Force 22 - 25kN Factory Pack Qty 12 Certification ROHS Semikron Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles
$470.00
$554.60 inclGST -
W2058LC140, Diode PUK 1508 Amp @ Tc = 100°C, 1400V 58/26
IXYS-Westcode-Littlefuse W2058LC140, Diode PUK 1508 Amp @ Tc = 100°C, 1400V 58/26 Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS Part Number W2058LC140 Vrrm 1400V Diode Configuration Diode Capsule (PUK) IF(av) @ 100 Deg C 1508 Amp Package Size ø58 x 14mm Itsm 19.5 kA VF(to) 0.79V Tj(max) 175°C rF 0.192mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.033°C/W R th(c-h) (double sided cooled) 0.00°C/W Weight 340g Clamping Force 10 - 20kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles
$222.99
$263.13 inclGST -
N3175HE160, Thyristor(SCR) PUK 2150 Amp, 1600V, 101/35
Westcode-IXYS-Littlefuse N3175HE160, Thyristor(SCR) PUK 2150 Amp, 1600V, 101/35 Features Very low forward voltage drop Very low leakage current International standard package 101/35 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode IXYS Part Number N3175HE160 Vrrm 1600V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2150 Amp Package Size ø101 x 35mm Itsm 44 kA VF(to) 0.90V Tj(max) 125°C rF 0.106mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.0125°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 900g Clamping Force 30 - 65kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters Germany Datasheet Product Datasheet Alternatives t2180n18tof-vt Heatsink Heatsink Profiles
$998.00
$1,177.64 inclGST -
N2600MC160, Thyristor(SCR) PUK 1760 Amp, 1600V, 74/26, Can Replace T1500N16 or T1509N16
Westcode N2600MC160, Thyristor(SCR) PUK 1760 Amp, 1600V, 74/26, Can Replace T1500N16 or T1509N16 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number N2600MC160 Vrrm 1600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 1760 Amp Package Size ø74 x 26mm Itsm 33 kA VF(to) 0.95V Tj(max) 180°C rF 0.13mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.015°C/W R th(c-h) (double sided cooled) 0.030°C/W Weight 600g Clamping Force 24 - 32kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles
$595.00
$702.10 inclGST -
N1661VC360, Thyristor(SCR) PUK, 1616 Amp, 3600V, 101/34
Westcode-IXYS-Littlefuse N1661VC360, Thyristor(SCR) PUK, 1616 Amp, 3600V, 101/34 Features Very low forward voltage drop Very low leakage current International standard package 101/34 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode Part Number N1661VC360 Vrrm 3600V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 84 Deg C 1616 Amp Package Size ø101 x 34mm Itsm 23 kA Vo 1.04V Tj(max) 125°C rS 0.35mΩ Gate Terminals Faston R th(j-k) (double sided cooled 180°sin) 0.017°C/W R th(c-h) (double sided cooled) Weight 1kg Clamping Force 27 - 34kN Factory Pack Qty 6 Certification ROHS Westcode Headquarters UK Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles
$2,100.00
$2,478.00 inclGST -
YST14-01YAP6-01 P18C VS170 101-GF, Thyristor(SCR) PUK, 1130Amp, 1800V, 74/26
Allen Bradley YST14-01YAP6-01 P18C VS170 101-GF, Thyristor(SCR) PUK, 1130Amp, 1800V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification ABB Part Number YST14-01YAP6-01 P18C VS170 101-GF Vrrm 1800V Diode Configuration Thyristor Capsule (PUK) IF(av) @ Tc = 115 Deg C 1130 Amp Package Size ø74 x 26mm Clamping Force 22kN Tj(max) 125°C Gate Terminals Faston Weight 600g Factory Pack Qty 6 Certification ROHS ABB Headquarters Switzerland Heatsink Heatsink Profiles Datasheet Datasheet
$795.00
$938.10 inclGST -
410403-58AW, Thyristor(SCR) PUK, 670Amp, 1200V, 74/26
Allen Bradley 410403-58AW, Thyristor(SCR) PUK, 670Amp, 1200V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Allen Bradley Part Number B1815NC160 Vrrm 1200V Diode Configuration Thyristor Capsule (PUK) IF(av) @ Tc = 115 Deg C 670 Amp Package Size ø74 x 26mm Tj(max) 125°C Gate Terminals Faston Weight 510g Factory Pack Qty 6 Certification ROHS Allen Bradley Headquarters USA Heatsink Heatsink Profiles
$795.00
$938.10 inclGST -
SKT340/16E, Thyristor(SCR) PUK, 550 Amp, 1600V, 41/14
Semikron SKT340/16E, Thyristor(SCR) PUK, 550 Amp, 1600V, 41/14 Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Drop In Replacement for NL-410403-78AZ (Reliance) Specification Semikron Part Number SKT340/16E Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 323 Amp Package Size ø41 x 14mm Itsm 5.7 kA VF(to) 1.0V Tj(max) 125°C rF 0.9mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.072°C/W R th(c-h) (double sided cooled) 0.08°C/W Weight 140g Clamping Force 4-5 kN Factory Pack Qty 12 Certification ROHS Semikron Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles
$209.00
$246.62 inclGST -
W4693QK050, Diode Capsule, 3399 Amp 500V, 58/14
Westcode-IXYS-Littlefuse W4693QK050, Diode Capsule, 3399 Amp 500V, 58/14, Closest Repladement ot D4457N06T Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS-Littlefuse Part Number W4693QK050 Vrrm 500V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 3399 Amp Package Size ø58 x 14mm Itsm 31.5 kA VF(to) 0.904V Tj(max) 150°C rF 0.57mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-k) (double sided cooled 180°sin) 0.017°C/W Weight 0.2kg Clamping Force 16 - 20kN Factory Pack Qty 6 Certification ROHS Westcode-IXYS-Littlefuse Headquarters UK Datasheet Product Datasheet Heatsink Heatsink Profiles
$649.00
$765.82 inclGST -
DRD3920V34, Diode Capsule, 3920 Amp 3400V, 110/26

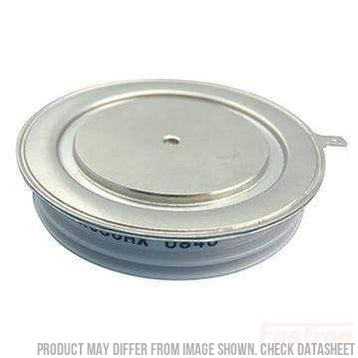

Dynex DRD3920V34, Diode Capsule, 3920 Amp 3400V, 110/26 Features Very low forward voltage drop Very low leakage current International standard package 110/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex Part Number DRD3920V34 Vrrm 3400V Diode Configuration Diode Capsule (PUK) IF(av) @ 100 Deg C 4460 Amp Package Size ø110 x 26mm Tj(max) 175°C Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm Weight 2kg Clamping Force 50 - 62kN Factory Pack Qty 12 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives W6262ZD240 Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles
$795.00
$938.10 inclGST
