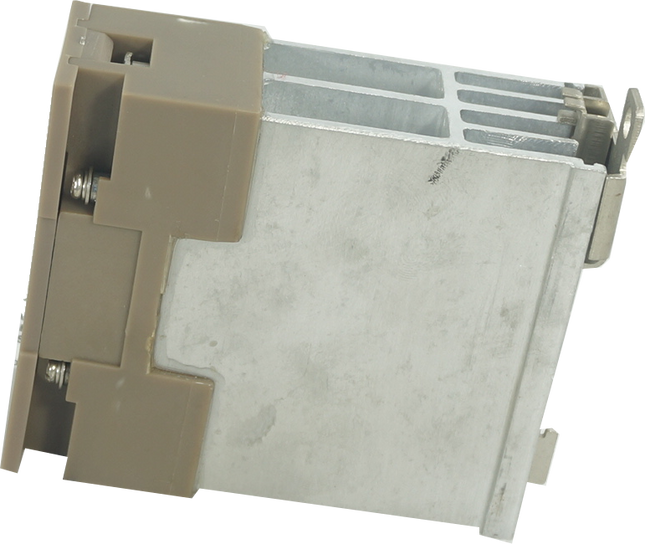

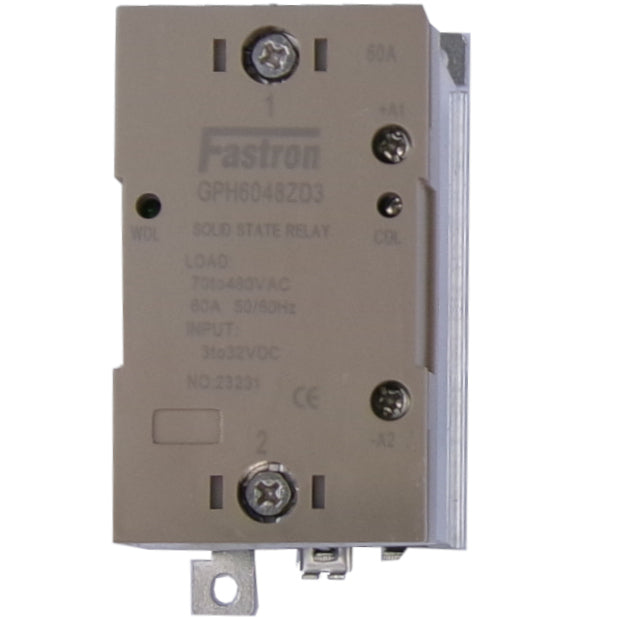

Fastron GPH6048ZD3, Solid State Contactor SSR, Single Phase 5-24VDC Control, 60A, 70-480VAC Load, Din Rail Mount Ratings from 10A to 100 Amp @ 70-480 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 IP20 AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Spec Fastron Part Number GPH6048ZD3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 5-24VDC Load Current (single unit) 67 Amp (rms) @ 20 Deg C Ambient, 57 Amp (rms) @ 40 Deg C Ambient Surge Capability 1400 Amp (peak) Special Feature Contactor Style IP20 Terminals Mounting Style DIN Rail Mount Load Voltage Range 70 - 480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 500g Factory Pack Qty 20   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom HS501DR + D2450-10 Single Phase Solid State Relay 3-32VDC Control Input, Random Crossing, LED Status Indicator, 24-280VAC Output, 10 Amps Panel or Din Rail Mount Features Ratings from 25A to 125 Amp @24-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS501DR + D2450-10 Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 10 Amp (rms) @ 40 Deg C Surge Capability 597 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 24-280VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:79.9mm x W:45mm x D:40.3mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS501DR D2450-10 Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom HS211 + DC60S7, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 7A @ 70 Deg C, 60VDC Load Features Ratings from 3A to 7 Amp @3-60VDC SCR output Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Panel Mount Din Rail Mount Spec Part Number HS211 + DC60S7 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 7 Amp (rms) @ 40 Deg C Surge Capability 14 Amp (peak) Special Feature N/A Mounting Style Din Rail or Panel Mount Recommended Voltage Range 3-60VDC Max DC Voltage 60VDC Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS211 DC60 Series Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

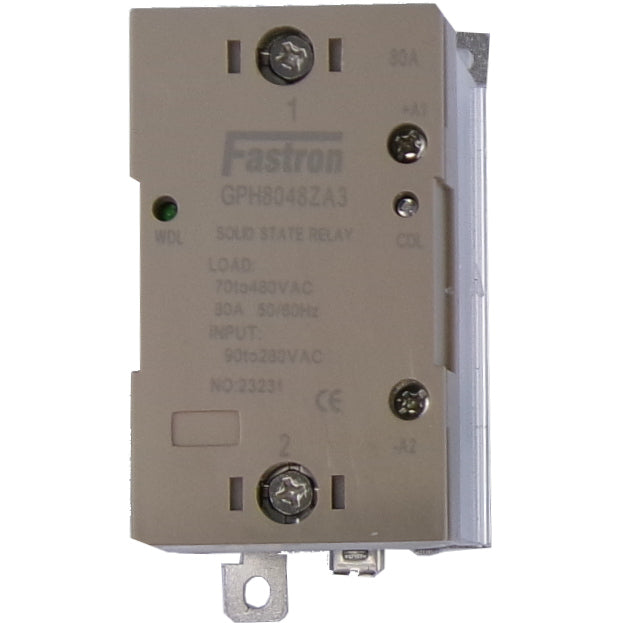

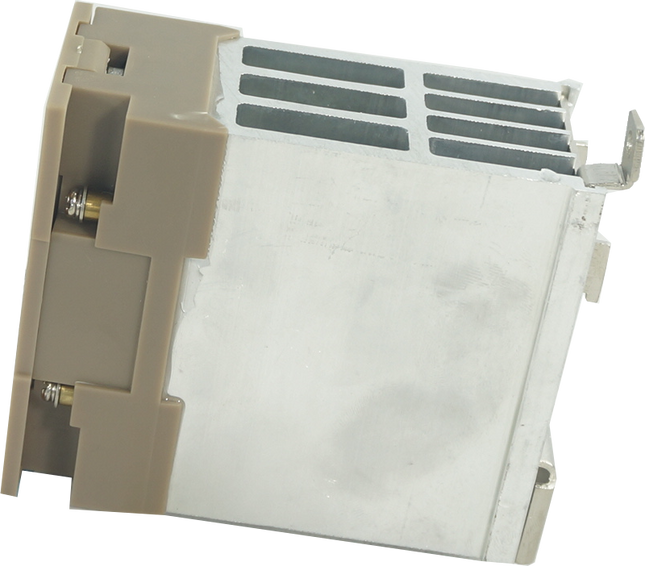

Fastron GPH8048ZA3, Solid State Contactor SSR, Single Phase 90-280VAC Control, 80A, 70-480VAC Load, Din Rail Mount Ratings from 10A to 100 Amp @ 70-480 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 IP20 AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Spec Fastron Part Number GPH8048ZA3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 90-280VAC Load Current (single unit) 67 Amp (rms) @ 20 Deg C Ambient, 57 Amp (rms) @ 40 Deg C Ambient Surge Capability 1400 Amp (peak) Special Feature Contactor Style IP20 Terminals Mounting Style DIN Rail Mount Load Voltage Range 70 - 480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 500g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

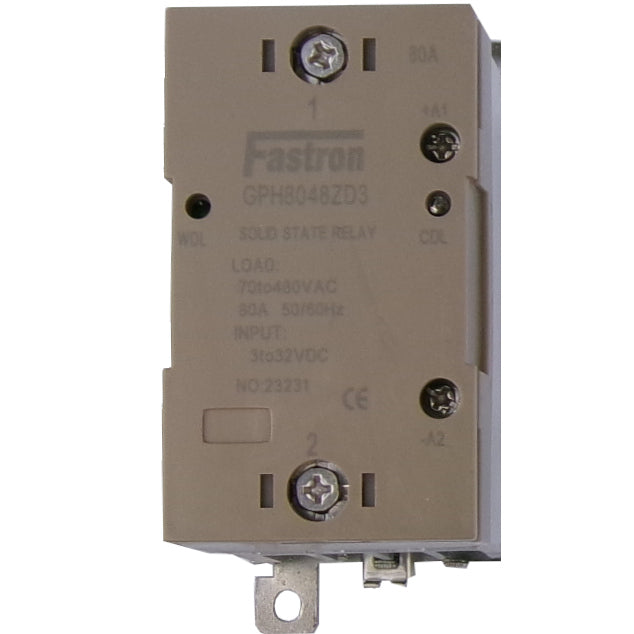

Fastron GPH8048ZD3, Solid State Contactor SSR, Single Phase 5-24VDC Control, 80A, 70-480VAC Load, Din Rail Mount Ratings from 10A to 100 Amp @ 70-480 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 IP20 AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Spec Fastron Part Number GPH8048ZD3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 5-24VDC Load Current (single unit) 67 Amp (rms) @ 20 Deg C Ambient, 57 Amp (rms) @ 40 Deg C Ambient Surge Capability 1400 Amp (peak) Special Feature Contactor Style IP20 Terminals Mounting Style DIN Rail Mount Load Voltage Range 70 - 480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 500g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom HS501DR + DC60S7, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 7A @ 40 Deg C, 60VDC Load Features Ratings from 3A to 7 Amp @3-60VDC SCR output Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS501DR + DC60S7 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 6.5 Amp (rms) @ 40 Deg C Surge Capability 14 Amp (peak) Special Feature N/A Mounting Style Din Rail or Panel Mount Recommended Voltage Range 3-60VDC Max DC Voltage 60VDC Termination Style Screw Terminals Dimensions L:79.9mm x W:45mm x D:40.3mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS501DR DC60 Series Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR2260D20U, Solid State Relay 4-32VDC Control, 20A, 48-600VAC Load, Din Rail Mount, w/status LED Features Ratings from 20 Amp up to 35 Amp @ 600 VAC Mosfet output for heavy industrial loads UL/CSA/VDE Approved, CE Compliant to EN60950-1 Din Rail Mount with bonded Heat sink Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260D20U Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current (single unit) 20 Amp (rms) @ 45 Deg C Ambient, 18 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 16.5 Amp (rms) @ 40 Deg C Ambient, 13 Amp (rms) @ 50 Deg C Ambient Surge Capability 286 Amp RMS Special Feature None Mounting Style DIN Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

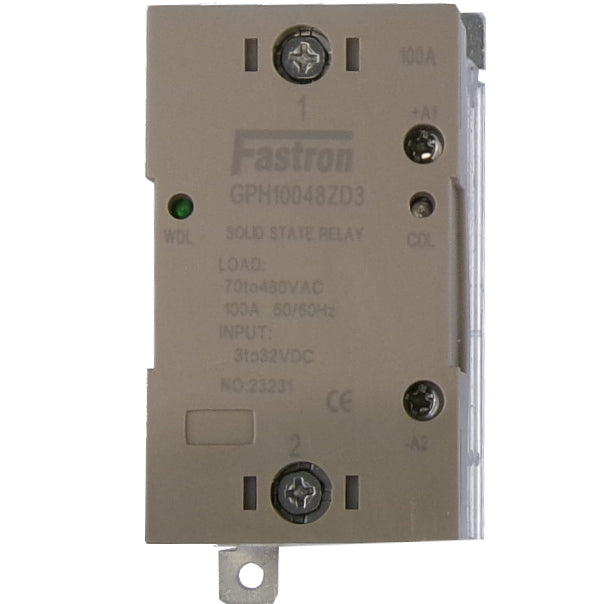

Fastron GPH10048ZD3, Solid State Contactor SSR, Single Phase 5-24VDC Control, 100Amp 70-480VAC Load, Din Rail Mount Ratings from 10A to 100 Amp @ 70-480 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 IP20 AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Spec Fastron Part Number GPH10048ZD3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 5-24VDC Load Current (single unit) 92 Amp (rms) @ 20 Deg C Ambient, 68 Amp (rms) @ 40 Deg C Ambient Surge Capability 1600 Amp (peak) Special Feature Contactor Style IP20 Terminals Mounting Style DIN Rail Mount Load Voltage Range 70 - 480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 500g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron GPH10048ZA3, Solid State Contactor SSR, Single Phase 90-280VAC Control, 100A, 70-480VAC Load, Din Rail Mount Ratings from 10A to 100 Amp @ 70-480 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 IP20 AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Spec Fastron Part Number GPH10048ZA3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 90-280VAC Load Current (single unit) 92 Amp (rms) @ 20 Deg C Ambient, 68 Amp (rms) @ 40 Deg C Ambient Surge Capability 1600 Amp (peak) Special Feature Contactor Style IP20 Terminals Mounting Style DIN Rail Mount Load Voltage Range 70 - 480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 500g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

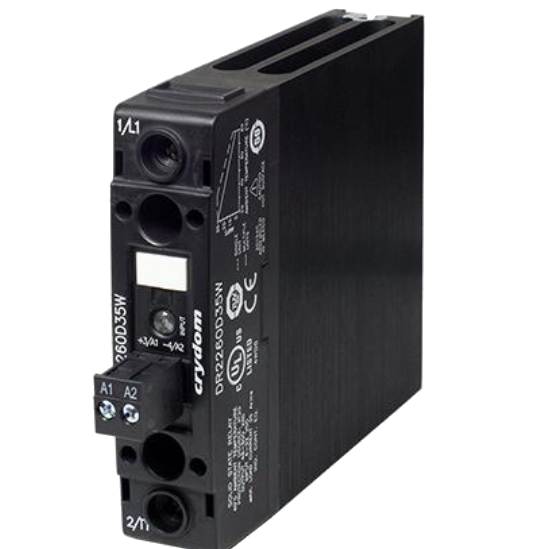

Crydom DR2260D30V, Solid State Contactor SSR, Single Phase 4-32VDC Control, 30A, 48-600VAC Load, Din Rail Mount w/status LED Features Ratings from 20A to 35 Amp @ 48-660 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260D30V Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current (single unit) 30 Amp (rms) @ 40 Deg C Ambient, 26 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 23 Amp (rms) @ 40 Deg C Ambient, 18.5 Amp (rms) @ 50 Deg C Ambient Surge Capability 716 Amp (peak) Special Feature Contactor Style Terminals Mounting Style DIN Rail Mount Load Voltage Range 48 - 660VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet Alternatives SSR Style CKRD4830 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
