Din Rail Mount Solid State Relays
-
HS301DR + D1D40, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 27A @ 40 Deg C, 100VDC Load
Crydom HS301DR + D1D40, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 27A @ 40 Deg C, 100VDC Load Ratings from 7 to 100 Amp @1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS301DR + D1D40 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 27 Amp DC @ 40 Deg C Surge Capability 106 Amp DC Special Feature N/A Mounting Style Din Rail or Panel Mount Recommended Voltage Range 1-72VDC Max DC Voltage 100VDC Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20 Datasheet HS301DR Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$226.10
$266.80 inclGST -
HS151DR + HD6050-10, Panel or Din Rail Mount Heatsink, 4-32VDC Control Input, 48-660VAC Output, 40 Amps @ 40 Deg C ambient
Crydom HS151DR + HD6050-10, Panel or Din Rail Mount Heatsink, 4-32VDC Control Input, 48-660VAC Output, 40 Amps @ 40 Deg C ambient Features Ratings from 25A to 125 Amp @ 48-530 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + HD6050-10 Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 93-32VDC Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 630Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 48-660VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:145mm Unit Weight 450g Factory Pack Qty 20 Datasheets HS151DR HD6050 Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$226.10
$266.80 inclGST -
HS151DR-HD4850-10, Panel or Din Rail Mount Heatsink, 3-32VDC Control Input, Random Crossing 90-530VAC Output, 40 Amps @ 40 Deg C
Crydom HS151DR-HD4850-10, Panel or Din Rail Mount Heatsink, 3-32VDC Control Input, Random Crossing 90-530VAC Output, 40 Amps @ 40 Deg C Features Ratings from 25A to 125 Amp @ 48-530 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + HD4850-10 Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 630Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 48-530VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 20 Datasheets HS151DR Datasheet HD4850-10 Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here
$228.70
$269.87 inclGST -

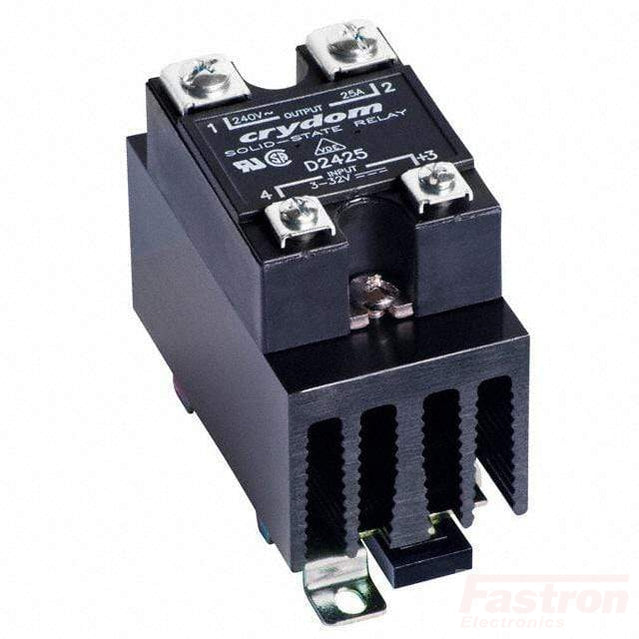

HS301DR + D5D07 Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 5.8A @ 40 Deg C, 500VDC Load
Crydom HS301DR + D5D07 Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 5.8A @ 40 Deg C, 500VDC Load Ratings from 7 to 100 Amp @1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS301DR + D5D07 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 5.8 Amp (rms) @ 40 Deg C Surge Capability 19 Amp (peak) Special Feature N/A Mounting Style Din Rail or Panel Mount Recommended Voltage Range 1-385VDC Max DC Voltage 500VDC Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20 Datasheet HS301DR Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$230.50
$271.99 inclGST -

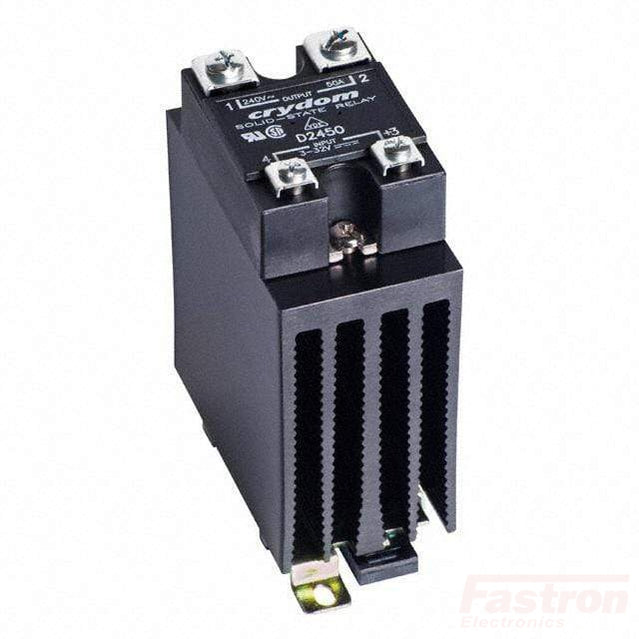

HS201DR + D1D40, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 25A @ 40 Deg C, 100VDC Load
Crydom HS201DR + D1D40, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 25A @ 40 Deg C, 100VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS201DR + D1D40 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 25 Amp DC @ 40 Deg C Surge Capability 106 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-72 VDC Max Load Voltage 100 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 415g Factory Pack Qty 10 Datasheet HS201DR Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$242.40
$286.03 inclGST -
HS201DR + D5D07, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 7A @ 40 Deg C, 500VDC Load
Crydom HS201DR + D5D07, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 7A @ 40 Deg C, 500VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS201DR + D5D07 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 6.1 Amp DC @ 40 Deg C Surge Capability 19 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-385 VDC Max Load Voltage 500 VDC Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:115mm Unit Weight 415g Factory Pack Qty 10 Datasheet HS201DR Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$246.80
$291.22 inclGST -
HS151DR-D1D40, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 29A @ 40 Deg C, 100VDC Load
Crydom HS151DR-D1D40, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 29A @ 40 Deg C, 100VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + D1D40 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 29 Amp DC @ 40 Deg C Surge Capability 106 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-72 VDC Max Load Voltage 100 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 10 Datasheet HS151DR Datasheet Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$247.70
$292.29 inclGST -
HS151DR-D5D07, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 6.5A @ 40 Deg C, 500VDC Load
Crydom HS151DR-D5D07, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 6.5A @ 40 Deg C, 500VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + D2D07 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 6.5 Amp DC @ 40 Deg C Surge Capability 22 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-150 VDC Max Load Voltage 200 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 10 Datasheet HS151DR Datasheet Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$252.20
$297.60 inclGST -

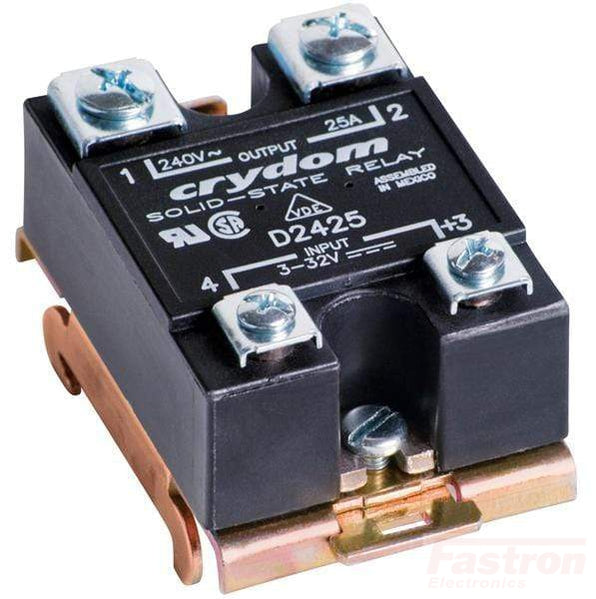

HS501DR + D5D10, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 4.6A @ 40 Deg C, 500VDC Load
Crydom HS501DR + D5D10, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 4.6A @ 40 Deg C, 500VDC Load Features Ratings from 7 to 100 Amp @1-500VDC SCR output Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS501DR + D5D10 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 4.6 Amp (rms) @ 40 Deg C Surge Capability 29 Amp (peak) Special Feature N/A Mounting Style Din Rail or Panel Mount Recommended Voltage Range 1-385VDC Max DC Voltage 500V Termination Style Screw Terminals Dimensions L:79.9mm x W:45mm x D:40.3mm Unit Weight 296g Factory Pack Qty 20 Datasheet HS501DR Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$262.80
$310.10 inclGST -
HS151DR-CWD4890H, Panel or Din Rail Mount Solid State Relay, 3-32VDC Control Input, LED Status, High Surge, 24-280VAC Output, 40 Amps
Crydom HS151DR-CWD4890H, Panel or Din Rail Mount Solid State Relay, 3-32VDC Control Input, LED Status, High Surge, 24-280VAC Output, 40 Amps Features Proportional Phase Control Input Ratings from 25A to 125 Amp @ 24-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Includes Plastic IP20 Terminal Cover Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + CWD4890H Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 1350Amp (peak) Special Feature LED Status Indicator + High Surge Mounting Style Panel Mount Load Voltage 48-660VAC Max Non Repetitive Peak Voltage 1200 Vp Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 20 Datasheets HS151DR Datasheet CWD4890HP Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$266.50
$314.47 inclGST -
HS211 + D5D10, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 7.5A @ 40 Deg C, 500VDC Load
Crydom HS211 + D5D10, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 7.5A @ 40 Deg C, 500VDC Load Features Ratings from 7 to 100 Amp @1-500VDC SCR output Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Panel Mount Din Rail Mount Spec Part Number HS211 + D5D10 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 7.5 Amp (rms) @ 40 Deg C Surge Capability 29 Amp (peak) Special Feature N/A Mounting Style Din Rail or Panel Mount Recommended Voltage Range 1-385VDC Max DC Voltage 500V Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20 Datasheet HS211 Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$268.90
$317.30 inclGST -
GFIN/70M-DR + PMP2425W DIN Mount, Proportional Controller, 25 Amp @ 40 Deg C, Selection for Burst/Phase Angle, 4-20mA, 0-10V, 0-5V Input, Din Rail Mount
GFIN/70M-DR + PMP2425W DIN Mount, Proportional Controller, 25 Amp @ 40 Deg C, Selection for Burst/Phase Angle, 4-20mA, 0-10V, 0-5V Input, Din Rail Mount Selectable Proportional Phase or Burst Control Input Ratings from 25A to 90 Amp @ 90-600 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Compliant Includes Plastic IP20 Terminal Cover Direct bond copper substrate Direct power lead frame Epoxy free design Specification Crydom Part Number GFIN/70M-DR + PMP2425W Switching Type Phase Angle or Burst (Selectable) ROHS/CE/UL Yes Control Voltage 0 - 10V/0 - 5V/4 - 20mA Proportional Input (Selectable) Note Requires DC Power Supply for 0-5V/0-10V input modes Load Current 25 Amp (rms) Surge Capability 296 Amp (peak) Special Feature Proportional Controller + SSR Mounting Style Panel Mount Load Voltage Range 90-280VAC Dielectric Strength 4kV Termination Style Terminal Plug Unit Weight 800g Factory Pack Qty 20 Datasheet PMP24 Series Datasheet PMP24 Installation/Wiring Guide GFIN Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent Parts Contact Us for Possible Replacement
$272.00
$320.96 inclGST
