Crydom ED06D5, EMR plug in Solid State Relay, 5-15VDC control, 5 Amp 1-48V DC output Features Ratings 5 Amp @ 60/80VDC Plug in EMR relay style Motor controller rated Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number ED06D5 Switching Type DC Load ROHS Yes (Details) Control Voltage 5-15VDC Load Current 5 Amp DC Surge Capability (10ms) 60 Amp DC Special Feature Plug in EMR style Mounting Style EMR Base Load Voltage Range 1 - 48VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet Socket DRSED App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom ED10F5, EMR plug in Solid State Relay, 48-72VDC control, 5 Amp 1-80V DC output Features Ratings 5 Amp @ 60/80VDC Plug in EMR relay style Motor controller rated Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number ED10F5 Switching Type DC Load ROHS Yes (Details) Control Voltage 48-72VDC Load Current 5 Amp DC Surge Capability (10ms) 60 Amp DC Special Feature Plug in EMR style Mounting Style EMR Base Load Voltage Range 1 - 80VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet Socket DRSED App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

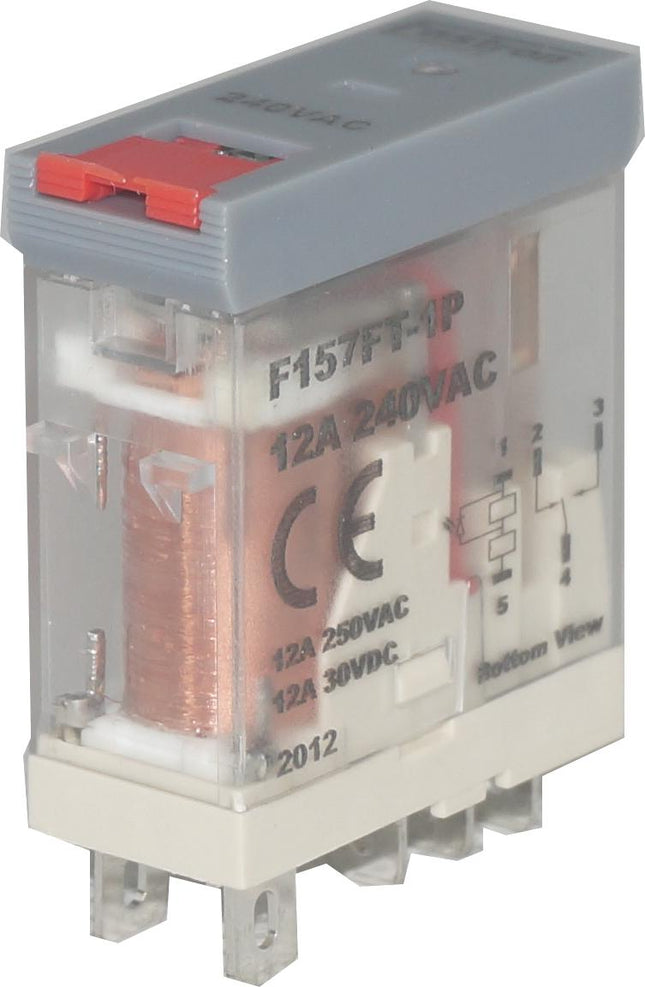

Fastron F157FT-1PL 12A 240VAC Series SPDT 12 Amp Form C, Socket or PCB Mount AC/DC Relay, 240F157FT-1PL 12A 230VAC Coil Features 1 x SPDT 12 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package UL Approved Compatible with Omron G2R-1-S Series CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT-1PL 12A 240VAC Switching Type 1 x SPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 230VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

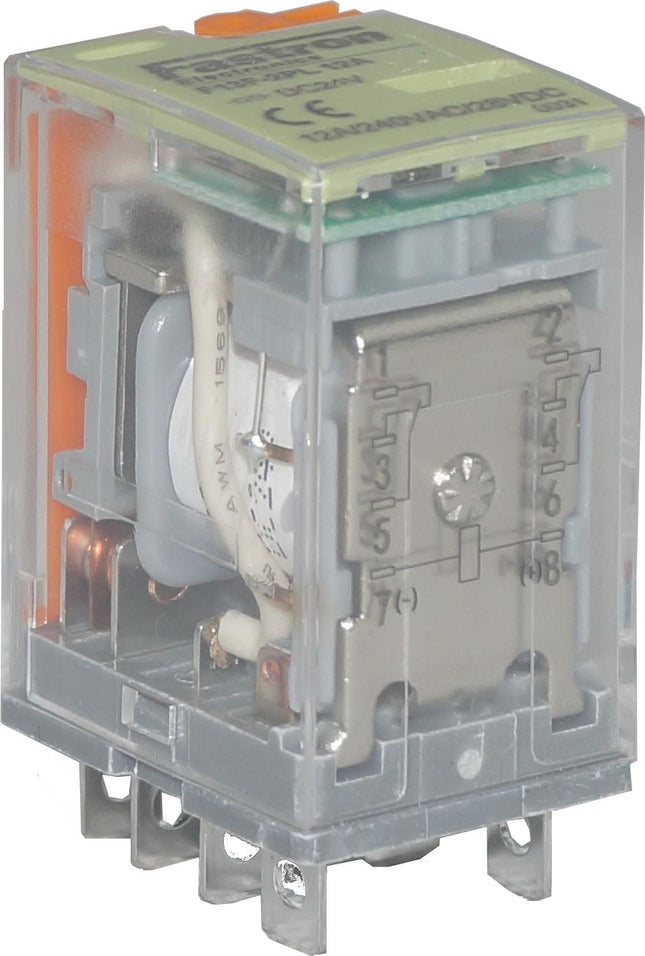

Fastron Electronics F13FT-2PL 12A 24VDC Series Dual 12 Amp DPDT Form C AC/DC Relay, 240VAC Coil, PCB or Socket Mount Features 2 x 12 Amp @ 250VAC or 30VDC PCB or Socket Mount Changeover Contact Compatible with Omron G2R-2-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F13F-2Z-C4 Socket Specification Fastron Part Number F13FT-2PL 12A 24VDC Switching Type 2 x 30VDC or 250VAC C/O DPDT Form C Approvals UL,CE Control Voltage 24VDC Load Current 2 x 12 Amp (rms) Special Feature LED Status Indicator Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 38g Factory Pack Qty 20   Datasheet Relay Datasheet Replacement Socket F13F-2Z-C4

Read more less

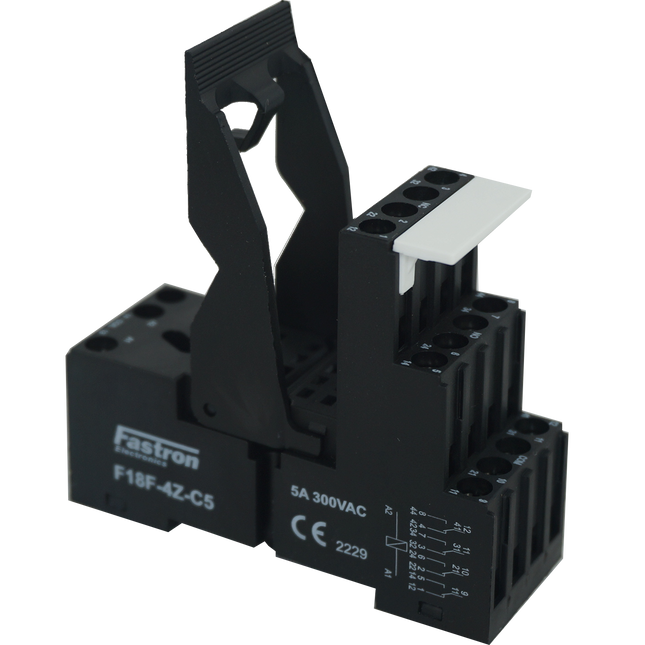

Fastron F18F-4Z-C5, Socket for Quad 14 Pin Relay F18F or RQ4 Series, Form C Features Rated for 4 x 5 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Terminals Compatible with Omron MY4IN Series UL Approved CE Compliant to IEC 60664 IP67 Suits F18FT Series Relays Specification Fastron Part Number F18F-4Z-C5 Switching Type 4 x 30VDC/250VAC C/O No of Pins 14 Approvals UL, CE Rated Control Voltage 24VDC Rated Load Current 4 x 5 Amp (rms) Mounting Style DIN Rail Mount Load Voltage Range 0-250VAC, 0-30VDC Unit Weight 38g Factory Pack Qty 20 Suitable Relays F18FT-4P-L/DC F18FT-4P-L/AC

Read more less

Fastron F18FT-4PL-5A 240VAC, 14 Pin, Quad Output Relay, Form C 4 x 5 Amp, 250VAC/30VDC Load, 240VAC Coil Features 4 x 5 Amp @ 250VAC or 30VDC PCB or Socket Mount Changeover Contact Compatible with Omron MY4IN Series UL Approved CE Compliant to IEC 60664 IP67 Suits F18F-4Z-C5 Socket Specification Fastron Part Number F18FT-4PL-5A 240VAC Switching Type 4 x 30VDC/250VAC C/O Form C No. of Pins 14 Approvals UL, CE Coil Voltage 24VDC Load Current 4 x 5 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0 - 250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 38g Factory Pack Qty 20   Datasheet Relay Datasheet Replacement Socket F18F-4Z-C5

Read more less

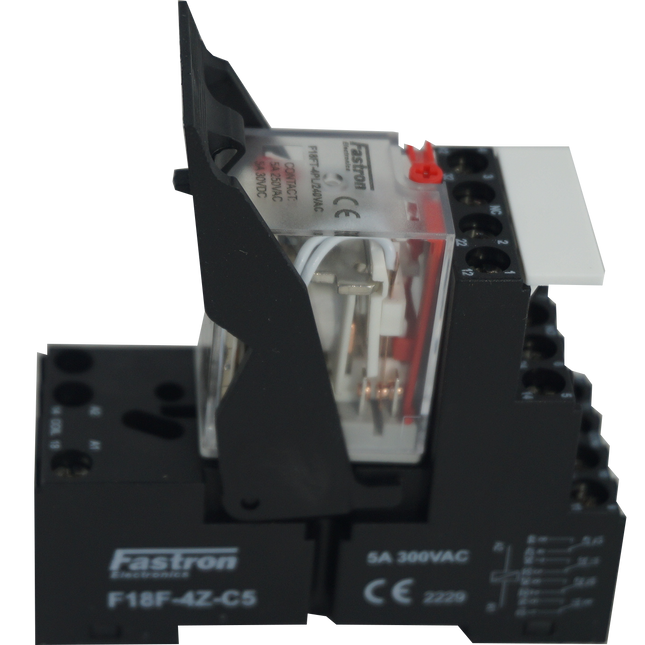

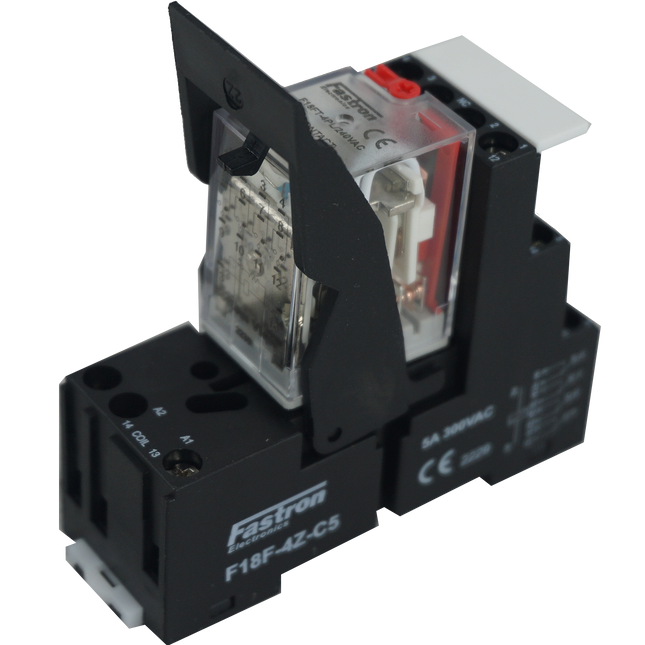

Fastron F18FT-4PL-5A 240VAC + F18F-4Z-C5, 14 Pin Quad Output Relay, From C 4 x 5 Amp, 250VAC/30VDC Load, 240VAC Coil Features 4 x 5 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Compatible with Omron MY4IN Series UL Approved CE Compliant to IEC 60664 IP67 Suits F18F-4Z-C5 Socket Specification Fastron Part Number F18FT-4PL-5A 240VAC + F18F-4Z-C5 Switching Type 4 x 30VDC/250VAC C/O Form C No. of Pins 14 Approvals UL, CE Coil Voltage 24VDC Load Current 4 x 5 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0 - 250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 38g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F18F-4Z-C5 Relay Replacement F18FT-4P-L/DC F18FT-4P-L/AC

Read more less

Relequick Socket Q4 for Slimline Relays Features 6 Amp @ 60VDC/300VAC DIN Rail Mount Changeover Contact Ultra slim package CE Compliant to IEC 60664 IP67 Specification Relequick Part Number SQB41D00T Switching Type AC or DC Load ROHS Yes (Details) Termination Style Screw Unit Weight 38g Factory Pack Qty 20 Datasheet Base Datasheet Suitable Parts 240VAC Relay 24VDC Relay
