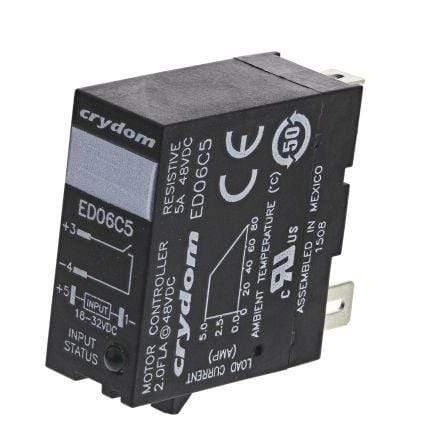

DRSED Din Rail Mount socket for ED series 5 Pin Relay Style SSR's Datasheet Product Datasheet Suitable SSR ED06C5

Read more less

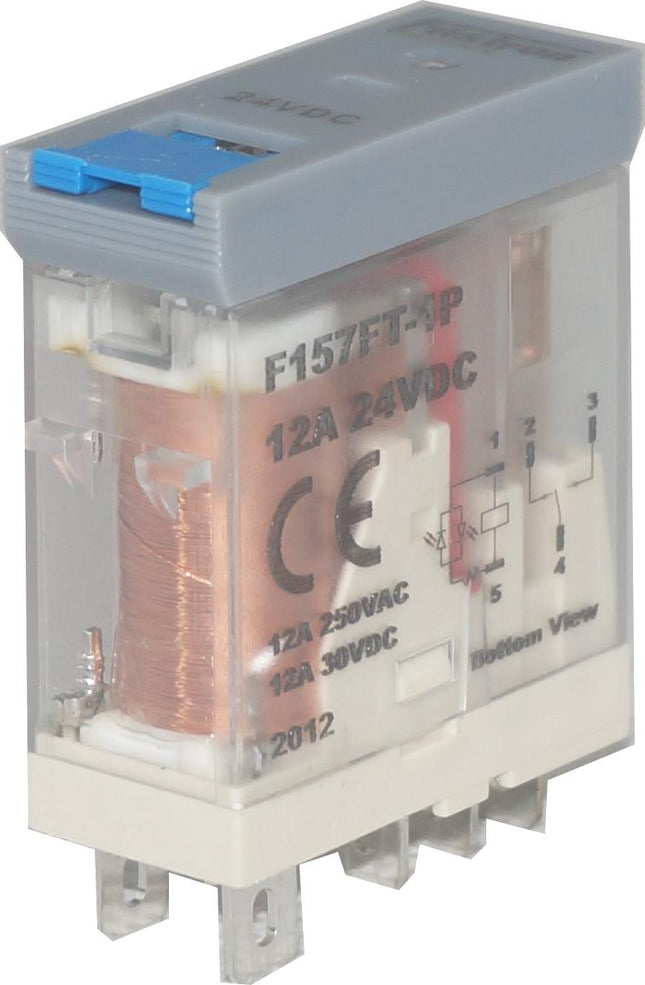

Fastron F157FT1PL 12A 24VDC Series 12 Amp SPDT From C,  Socket or PCB Mount AC/DC Relay, 24VDC Coil Features 1 x 12 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 Socket Specification Fastron Part Number F157FT 1PL 12A 24VDC Switching Type 1 x SPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 24VDC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3

Read more less

Fastron F157FT 2PL 8A 110VAC, Relay, DPDT 8 Amp Form C, 250VAC/30VDC Load, 110VAC Coil, Socket or PCB Mount Features 2 x SPDT 8 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package UL Approved Compatible with Omron G2R-1-S Series CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT 2PL 8A 110VAC Switching Type DPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 110VAC Load Current 2 x 8 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20 Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

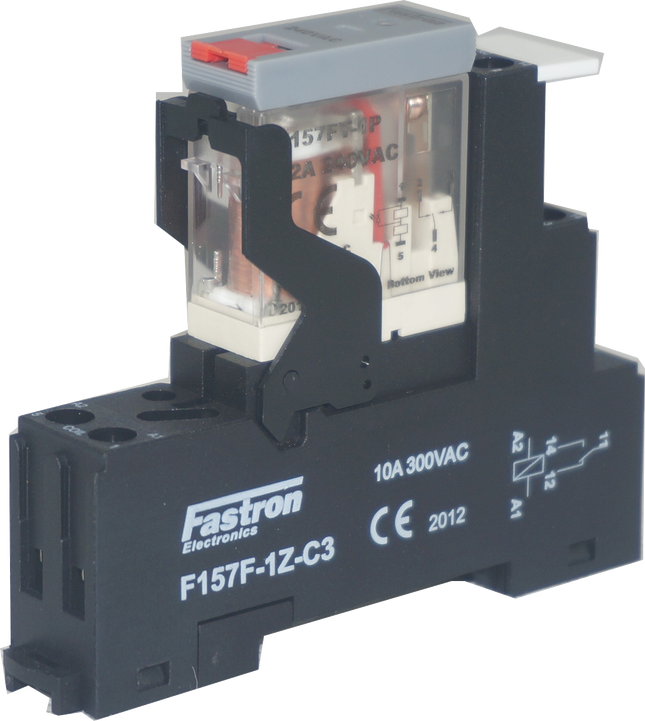

Fastron F157FT 1PL 12A 110VAC + F157F-1Z-C3, Relay, 1 x SPDT 12 Amp Form C, 250VAC/30VDC Load, 110VAC Coil Features 1 x 12 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT 1PL 12A 110VAC + F157F-1Z-C3 Switching Type 1 x SPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 110VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 60g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

Fastron F157FT-1PL 12A 110VAC, Relay, 1 x SPDT 12 Amp Form C, 250VAC/30VDC Load, 110VAC Coil, Socket or PCB Mount Features 1 x SPDT 12 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package UL Approved Compatible with Omron G2R-1-S Series CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT-1PL 12A 110VAC Switching Type 1 x SPDT 30VDC/250VAC C/O??Form C Approvals UL, CE Coil Voltage 110VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20 ?? Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

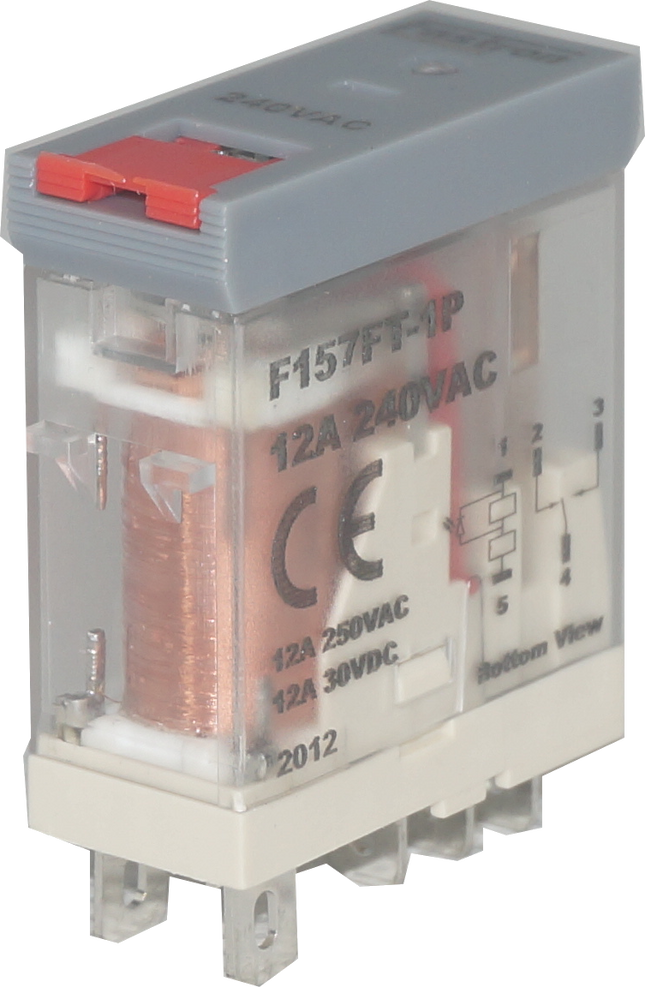

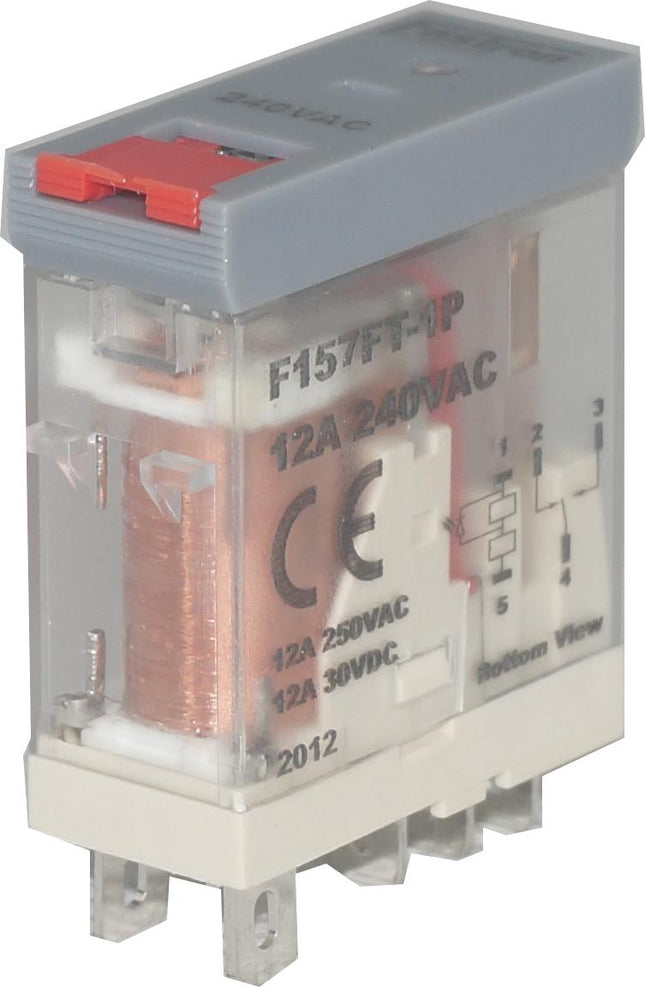

Fastron F157FT-1PL 12A 240VAC Series SPDT 12 Amp Form C,??Socket or PCB Mount AC/DC Relay, 240F157FT-1PL 12A 230VAC Coil Features 1 x SPDT 12 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package UL Approved Compatible with Omron G2R-1-S Series CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT-1PL 12A 240VAC Switching Type 1 x SPDT 30VDC/250VAC C/O??Form C Approvals UL, CE Coil Voltage 240VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20 ?? Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

Crydom ED06E5, EMR plug in Solid State Relay, 18-36VAC control, 5 Amp 1-48V DC output Features Ratings 5 Amp @ 60/80VDC Plug in EMR relay style Motor controller rated Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number ED06E5 Switching Type DC Load ROHS Yes (Details) Control Voltage 18-36VAC Load Current 5 Amp DC Surge Capability (10ms) 60 Amp DC Special Feature Plug in EMR style Mounting Style EMR Base Load Voltage Range 1 - 48VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet Socket DRSED App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

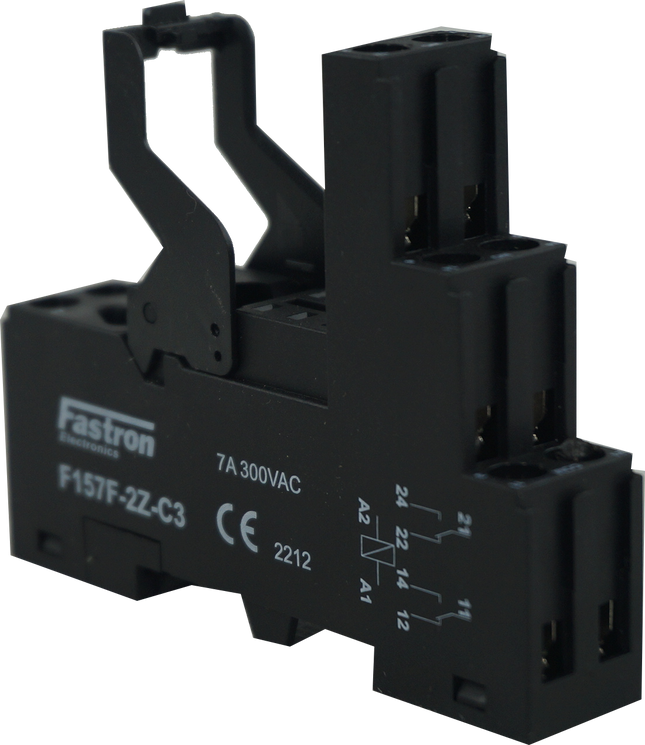

Fastron F157F-2Z-C3, 5 Pin Relay Socket, Rated for 2 x SPDT 10 Amp, 250VAC/30VDC Load, up to 250VAC Coil Features Rated for 2 x SPDT 10/16 Amp @ 250VAC or 30VDC 5 Pin Socket for F157 Series Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Specification Fastron Part Number F157F-2Z-C3 Switching Type 2 x SPDT 30VDC/250VAC C/O No. of Pins 5 Approvals UL, CE Rated Coil Voltage up tp 250VAC/DC Rated Load Current 2 x 10/16 Amp (rms) Special Feature Optional LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Unit Weight 50g Factory Pack Qty 20   Datasheet Relay Datasheet Relay Replacement F157FT/24 1ZT F157FT/250VAC 1ZT

Read more less

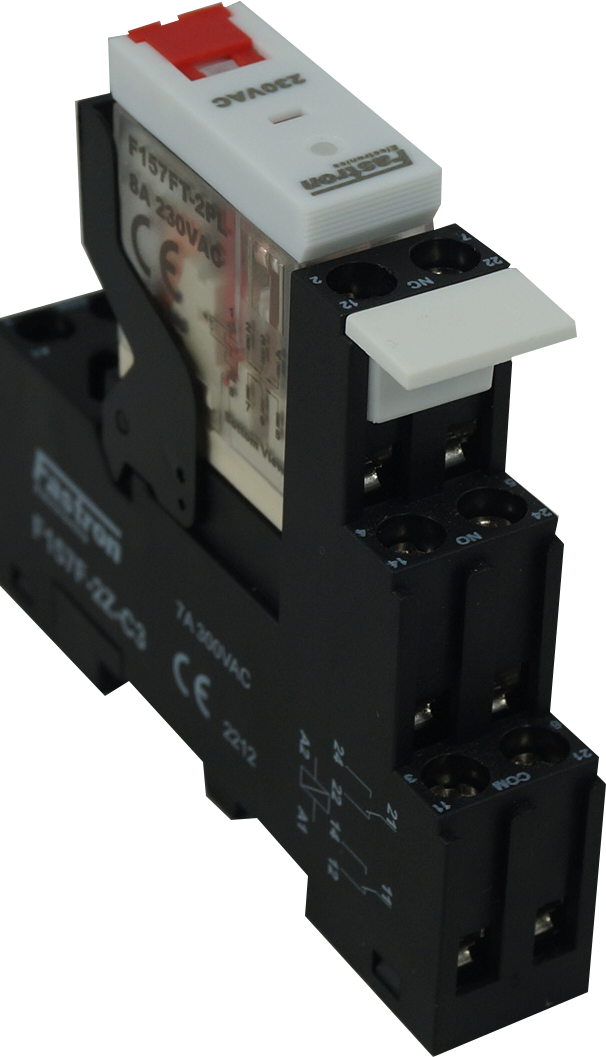

Fastron F157FT 2PL 8A 240VAC F157F-2Z-C3, Relay, DPDT 8 Amp Form C, 250VAC/30VDC Load, 240VAC Coil Features 2 x 8 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT 2PL 8A 240VAC F157F-2Z-C3 Switching Type DPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 240VAC Load Current 2 x 8 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 60g Factory Pack Qty 20 ?? Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

Fastron F157FT 2PL 8A 240VAC, Relay, DSPDT 8 Amp??Form C, 250VAC/30VDC Load, 240VAC Coil, Socket or PCB Mount Features 2 x SPDT 8 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package UL Approved Compatible with Omron G2R-1-S Series CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT 2PL 8A 240VAC Switching Type DPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 240VAC Load Current 2 x 8 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20 Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

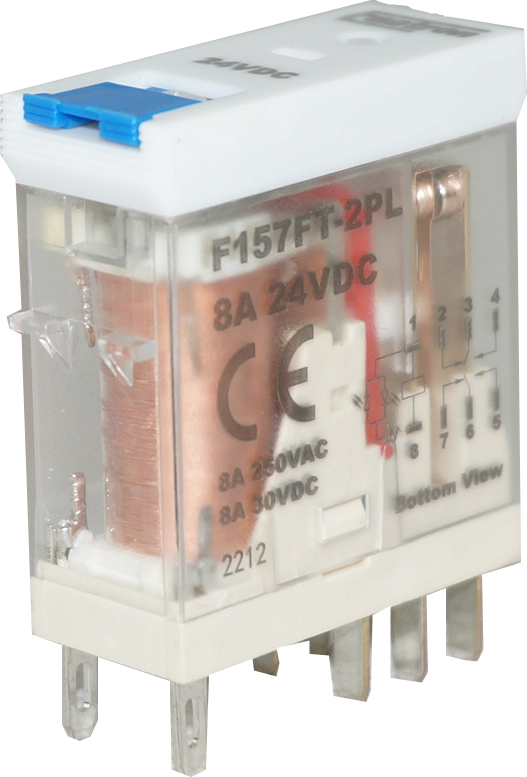

Fastron F157FT 2PL 8A 24VDC, Relay, DSPDT 8 Amp Form C, 250VAC/30VDC Load, 24VDC Coil, Socket or PCB Mount  Features 2 x 8 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 Socket Specification Fastron Part Number F157FT 2PL 8A 24VDC Switching Type DPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 24VDC Load Current 2 x 8 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3

Read more less

Crydom ED10D5, EMR plug in Solid State Relay, 5-15VDC control, 5 Amp 1-80V DC output Features Ratings 5 Amp @ 60/80VDC Plug in EMR relay style Motor controller rated Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number ED10D5 Switching Type DC Load ROHS Yes (Details) Control Voltage 5-15VDC Load Current 5 Amp DC Surge Capability (10ms) 60 Amp DC Special Feature Plug in EMR style Mounting Style EMR Base Load Voltage Range 1 - 80VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet Socket DRSED App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
