DC Surge Protection Device (SPD) for Solar Photo Voltaic Systems and Inverters

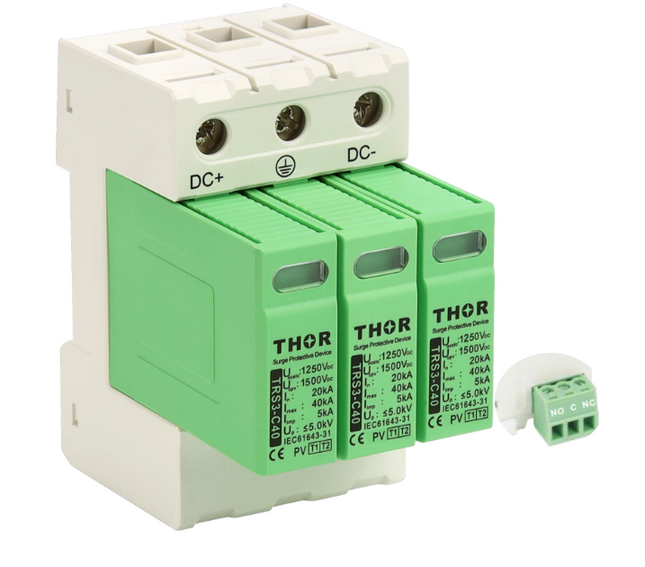

FRS3-C40-1250R, 1250VDC Surge Protection Device for Photovoltaic Systems, Type 1 (Class I) + Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FRS3-C40-1250R Nominal Voltage 1250VDC No of Poles 3 Category IEC / EN / VDE Type 1 (Class I) + Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FRS3-C40-750R, 750VDC Surge Protection Device for Photovoltaic Systems, Type 1 (Class I) + Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FRS3-C40-750R Nominal Voltage 750VDC No of Poles 3 Category IEC / EN / VDE Type 1 (Class I) + Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT B PVM 150 RM, 150VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT B PVM 150 RM Nominal Voltage 150VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT B PVM 600 RM, 600VDC Surge Protection Device for Photovoltaic Systems, Type 1 (CLass I) + Type 2 (CLass II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT B PVM 600 RM Nominal Voltage 600VDC No of Poles 3 Category IEC / EN / VDE Type 1 (CLass I) + Type 2 (CLass II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

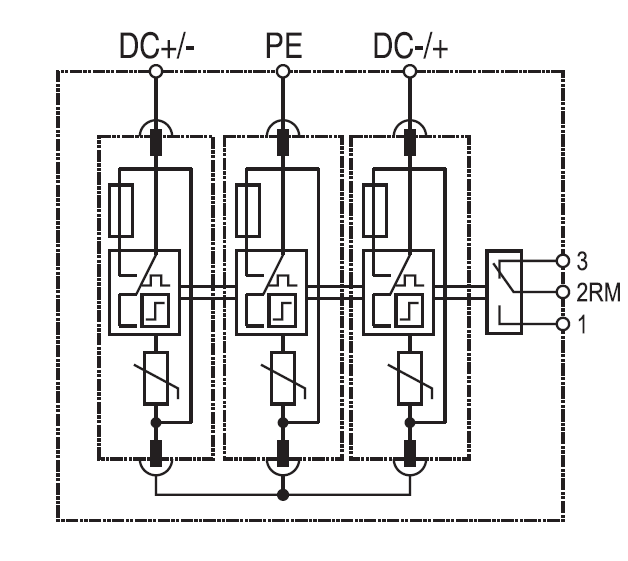

FBT Y PVM 1200 RM, 1200VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT Y PVM 1200 RM Nominal Voltage 1200VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC50539-11 (TUV Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT Y PVM 150 RM, 150VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT Y PVM 150 RM Nominal Voltage 150VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT Y PVM 600 RM, 600VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT Y PVM 600 RM Nominal Voltage 600VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

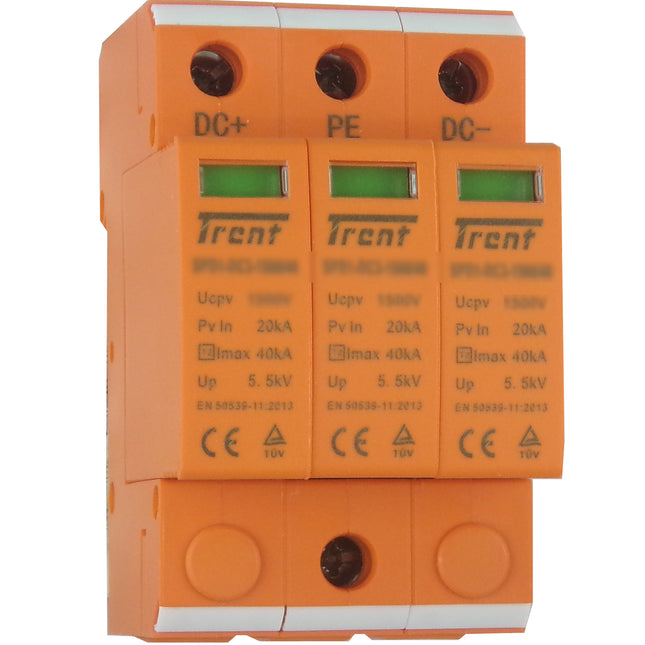

SPD1-DC/3-600/40, 600VDC Surge Protection Device for Photovoltaic Systems, Type 2 40kA   Specifications Trent part number SPD1-DC/3-600/40 Nominal Voltage 600VDC No of Poles 3 Category IEC / EN / VDE Type 2 Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC50539-11 (TUV Approved)   Datasheet Product Datasheet Obsolescence OBSOLETE. SEE FRS3-C40-600R for replacement GDT/MOV/TVS Tester SPD Tester

Read more less
