DC Surge Protection Device (SPD) for Solar Photo Voltaic Systems and Inverters
-
M-FRS3-C40-1500R, MODULE ONLY FOR 1500VDC Surge Protection Device, Type 1 (Class I) + Type 2 (Class II) 40kA
M-FRS3-C40-1500R, MODULE ONLY FOR 1500VDC Surge Protection Device, Type 1 (Class I) + Type 2 (Class II) 40kA  Specifications Trent part number FRS3-C40-1500R Nominal Voltage 1500VDC No of Poles 3 Category IEC / EN / VDE Type 1 (Class I) + Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$139.00
$164.02 inclGST -
M-FRS3-C40-1500R-T2, MODULE ONLY 1500VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA
M-FRS3-C40-1500R-T2, MODULE ONLY 1500VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA  Specifications Trent part number M-FRS3-C40-1500R-T2 MODULE ONLY Nominal Voltage Un 1500VDC No of Poles N/A Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$16.00
$18.88 inclGST -
M-FRS3-C40-1000R-T2, MODULE ONLY 1000VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA
M-FRS3-C40-1000R-T2, MODULE ONLY 1000VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA  Specifications Trent part number M-RS3-C40-1000R-T2 MODULE ONLY Nominal Voltage Un 1000VDC No of Poles N/A Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$15.50
$18.29 inclGST -
M-FRS3-C40-500R-T2, MODULE ONLY 500VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA
M-FRS3-C40-500R-T2, MODULE ONLY 500VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA  Specifications Trent part number M-FRS3-C40-500R-T2 MODULE ONLY Nominal Voltage 500VDC No of Poles N/A Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$15.00
$17.70 inclGST -
FRS3-C40-600R, 600VDC Surge Protection Device for Photovoltaic Systems, Type 1 (Class I) + Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FRS3-C40-600R, 600VDC Surge Protection Device for Photovoltaic Systems, Type 1 (Class I) + Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS3-C40-600R Nominal Voltage 600VDC No of Poles 3 Category IEC / EN / VDE Type 1 (Class I) + Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$99.00
$116.82 inclGST -
FRS3-C40-150R, 150VDC Surge Protection Device for Photovoltaic Systems, Type 1 (Class I) + Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FRS3-C40-150R, 150VDC Surge Protection Device for Photovoltaic Systems, Type 1 (Class I) + Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS3-C40-150R Nominal Voltage 500VDC No of Poles 3 Category IEC / EN / VDE Type 1 (Class I) + Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole Imax = 40kA (8/20uS) 9KA Max, In = 20kA (8/20uS) 9KA Nominal, Iimp = 8kA (10/350us) Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$95.00
$112.10 inclGST -

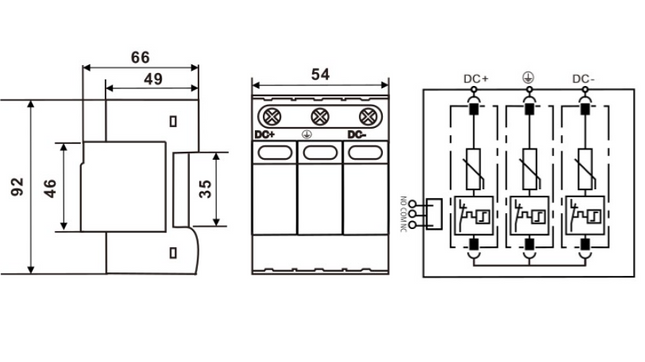

FRS2-C40-1500R, 2 Pole 1500VDC Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FRS2-C40-1500R, 2 Pole 1500VDC Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS2-C40-1500R Nominal Voltage (Un) 1500VDC Maximum PV Operating Voltage (Ucpv) 1800VDC Voltage Protection Level (Up) <5.2kV No of Poles 2 Category IEC / EN / VDE Type 2 (CLass II) Location of use Battery/Solar System/UPS Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 400g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$79.00
$93.22 inclGST -
FRS2-C40-1000R, 2 Pole, 1000VDC Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FRS2-C40-1000R, 2 Pole, 1000VDC Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS2-C40-1000R Nominal Voltage (Un) 1000VDC Maximum PV Operating Voltage (Ucpv) 1200VDC Voltage Protection Level (Up) <4kV No of Poles 2 Category IEC / EN / VDE Type 2 (CLass II) Location of use Battery/Solar System/UPS Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 400g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$79.00
$93.22 inclGST -

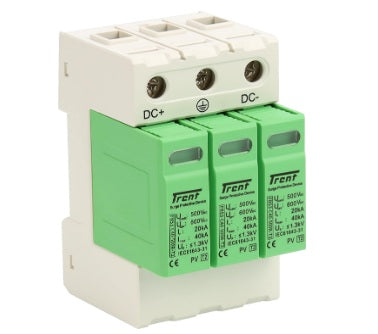

FRS2-C40-800R, 800VDC 2 Pole Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FRS2-C40-800R, 750VDC Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS2-C40-800R Nominal Voltage (Un) 800VDC Maximum PV Operating Voltage (Ucpv) 960VDC Voltage Protection Level (Up) <3.6kV No of Poles 2 + 0 Category IEC / EN / VDE Type 2 (Class II) Location of use Battery/Solar System/UPS Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 400g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$69.00
$81.42 inclGST -
FRS2-C40-500R-T2, 500VDC 2 Pole Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FRS2-C40-500R-T2, 500VDC Surge Protection Device for DC/Solar Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS2-C40-500R-T2 Nominal Voltage (Un) 500VDC Maximum PV Operating Voltage (Ucpv) 600VDC Voltage Protection Level (Up) <1.3kV No of Poles 2 + 0 Category IEC / EN / VDE Type 2 (Class II) Location of use Battery/Solar System/UPS Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 400g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$69.00
$81.42 inclGST -
FRS3-C40-1250R-T2, 1250VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FRS3-C40-1250R-T2, 1250VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS3-C40-1250R-T2 Nominal Voltage Uocst = 1250VDC, Ucpv = 1500VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$69.00
$81.42 inclGST -
FRS3-C40-1500R-T2, 1500VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS
FFRS3-C40-1500R-T2, 1500VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS  Specifications Trent part number FRS3-C40-1500R Nominal Voltage 1500VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)  Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester
$69.00
$81.42 inclGST
