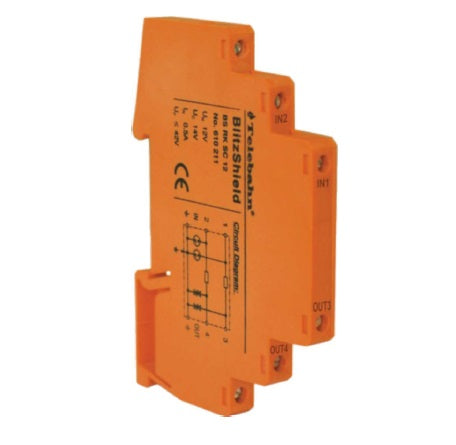

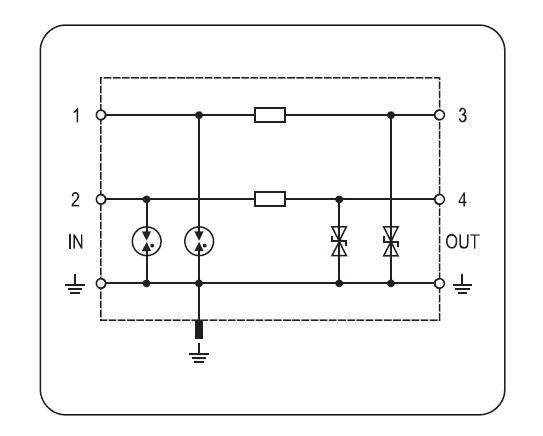

FBS RK SC 110, 110VDC 2 Pole Surge Protection Device for Unbalanced IT Systems, 5kA, LPZ 0 -2 or higher
Application
Unbalanced IT Systems
Coarse and FIne Protection
Industrial Control System
Measurement System
Device Control
Specifications
Trent part number
FBS RK SC 48
Nominal Voltage
48VDC
No of Poles
2
Category IEC / EN / VDE
LPZ 0 -2 or higher
Location of use
Unbalanced IT Communications Line/signals
Protection modes
L1+/L2+/GND
Additional Remote Contacts
N/A
Protective element
MOV
No Fault/Fault Indication
N/A
Surge discharge rating
Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal
Internal protection and safety
Thermal disconnector in each MOV
Weight
50g
Standards
IEC61643-21; GB 18802.21 ; YD/T 1542
Datasheet
Product Datasheet
GDT/MOV/TVS Tester
SPD Tester
FBS LCD 12/4M, 12VDC Pluggable Surge Protection Device for IT Systems, LPZ 0A-2 of higher, 10kA, for Balanced and Unbalanced systems
Specifications
Telebahn part number
FBS LCD 12/4M
Nominal Voltage
12VDC
No of Poles
4
Category IEC / EN / VDE
Type 2
Location of use
Communication/Signal Lines
Protection modes
L1+/L1-, L2+/L2- , for
Additional Remote Contacts
NO
Protective element
MOV
No Fault/Fault Indication
N/A
Surge discharge rating
Per pole 10kA (8/20uS)10KA) Max, 20kA (8/20uS)2.5KA) Nominal
Internal protection and safety
Thermal disconnector in each MOV
Weight
120g
Standards
IEC 61643-21; EN 61643.21; GB 18802.21
Datasheet
Product Datasheet
GDT/MOV/TVS Tester
SPD Tester

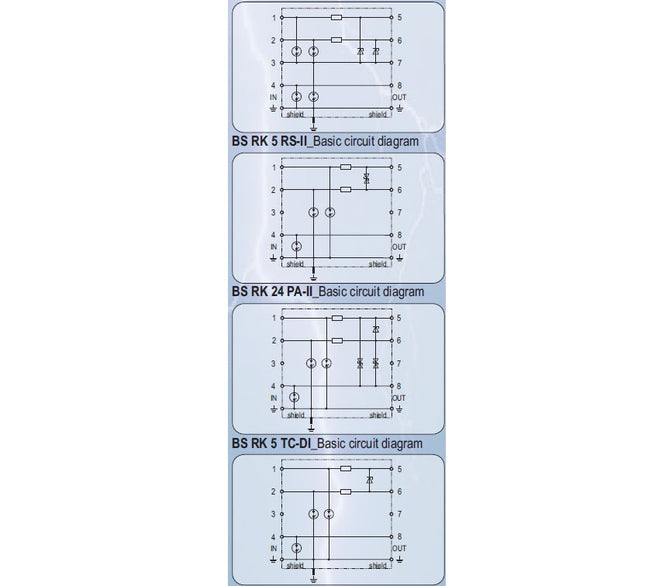

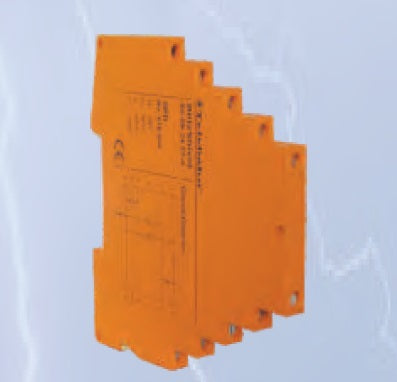

FBS RK 5 RS-II, Surge Protection Device For RS422/RS485 Devices 2 Pole, 5VDC, 5kA Per Line, line @ Imax(8/20uS)(KA), -40 to +80 Deg C Operation; YD/T 1542, Nominal Discharge 5kA, Maximum Discharge 10kA, LPZ 1 -2 or higher, Slim 7mm Wide Module
Application
IT Systems
Coarse and FIne Protection
Industrial Control System
Measurement System
Device Control
Specifications
Trent part number
FBS RK 5 RS-II
Nominal Voltage
5VDC
No of Poles
4
Category IEC / EN / VDE
LPZ 0 -2 or higher
Location of use
IT Communications Line/signals
Protection modes
TX+/TX-/RX+/RX-/GND
Additional Remote Contacts
N/A
Protective element
MOV
No Fault/Fault Indication
N/A
Surge discharge rating
Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal
Internal protection and safety
Thermal disconnector in each MOV
Weight
50g
Standards
IEC61643-21; GB 18802.21 ; YD/T 1542
Datasheet
Product Datasheet
GDT/MOV/TVS Tester
SPD Tester

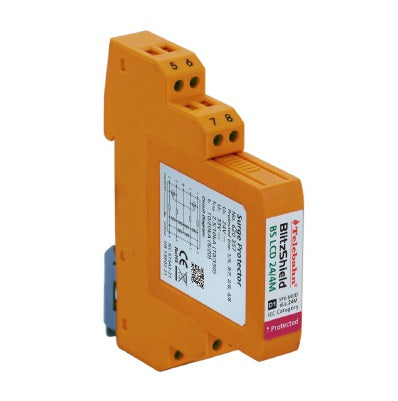

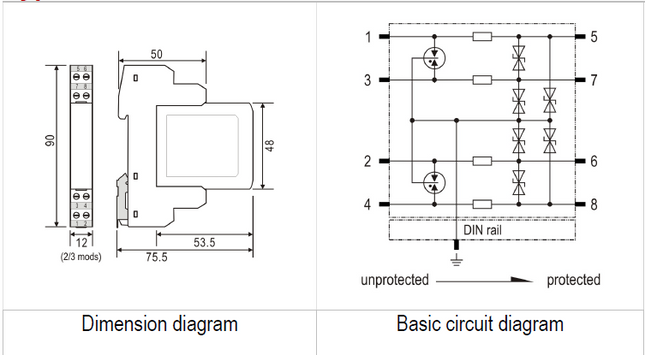

FBS LCD 24/4M, 24VDC Surge Protection Device for IT Systems, LPZ 0A-2 of higher, 10kA
Specifications
Telebahn part number
FBS LCD 24/4M
Nominal Voltage
24VDC
No of Poles
4
Category IEC / EN / VDE
Type 2
Location of use
Communication/Signal Lines
Protection modes
L1+/L1-, L2+/L2- , for
Additional Remote Contacts
NO
Protective element
MOV
No Fault/Fault Indication
N/A
Surge discharge rating
Per pole 10kA (8/20uS)10KA) Max, 20kA (8/20uS)2.5KA) Nominal
Internal protection and safety
Thermal disconnector in each MOV
Weight
120g
Standards
IEC 61643-21; EN 61643.21; GB 18802.21
Datasheet
Product Datasheet
GDT/MOV/TVS Tester
SPD Tester
FBS RK 24 PA-II, Surge Protection Device For RS422/RS485 Devices 4 Pole, 24VDC, 5kA per line @ Imax(8/20uS)(KA), -40 to +80 Deg C Operation; YD/T 1542, Nominal Discharge 5kA, Maximum Discharge 10kA, LPZ 1 -2 or higher, Slim 7mm Wide Module
Application
IT Systems
Coarse and FIne Protection
Industrial Control System
Measurement System
Device Control
Specifications
Trent part number
FBS RK 24 PA-II
Nominal Voltage
24VDC
No of Poles
4
Category IEC / EN / VDE
LPZ 0 -2 or higher
Location of use
IT Communications Line/signals
Protection modes
TX+/TX-/RX+/RX-/GND
Additional Remote Contacts
N/A
Protective element
MOV
No Fault/Fault Indication
N/A
Surge discharge rating
Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal
Internal protection and safety
Thermal disconnector in each MOV
Weight
50g
Standards
IEC61643-21; GB 18802.21 ; YD/T 1542
Datasheet
Product Datasheet
GDT/MOV/TVS Tester
SPD Tester
FBS RK 24 ST-II, Slim Surge Protection Device For RS485, 2 Pole, 24VDC, 5kA per line @ Imax(8/20uS)(KA), -40 to +80 Deg C Operation; YD/T 1542, Nominal Discharge 5kA, Maximum Discharge 10kA, LPZ 1 -2 or higher, Slim 7mm Wide Module
Application
IT Systems
Coarse and FIne Protection
Industrial Control System
Measurement System
Device Control
Specifications
Trent part number
FBS RK 24 ST-II
Nominal Voltage
24VDC
No of Poles
4
Category IEC / EN / VDE
LPZ 0 -2 or higher
Location of use
IT Communications Line/signals
Protection modes
TX+/TX-/RX+/RX-/GND
Additional Remote Contacts
N/A
Protective element
MOV
No Fault/Fault Indication
N/A
Surge discharge rating
Per pole 5kA (8/20uS)9KA) Max, 10kA (8/20uS)9KA) Nominal
Internal protection and safety
Thermal disconnector in each MOV
Weight
50g
Standards
IEC61643-21; GB 18802.21 ; YD/T 1542
Datasheet
Product Datasheet
GDT/MOV/TVS Tester
SPD Tester
