Crydom MP240D3, Solid State Relay, Single Phase PCB Mount 3-32VDC Control, 3A, 24-280VAC Load Features Ratings up to 4 Amp @ 280VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 AC & DC control types EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number MP240D3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 3-15VDC Load Current 3 Amp (rms) Surge Capability 90 Amp (peak) Special Feature None Mounting Style PCB Mount Load Voltage Range 12-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20   Datasheet Product Datasheet   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Crydom DC60S3-B, NORMALLY CLOSED Solid State Relay, DC 3-32VDC control, 3A, 60VDC Load Features Ratings from 3A to 40 Amp @ 3-60VDC Transistor output UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DC60S3-B Switching Type DC Load ROHS Yes (Details) Control Voltage 3-32VDC Load Current 3 Amp DC Surge Capability (10ms) 6 Amp DC Special Feature Normally Closed Mounting Style Panel Mount Load Voltage Range 3 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent See D1D40K with raised terminals (Gen 3) for alternative or DC60S7, D1D20, D1D40, D1D80 for higher current alternatives App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron F1D40-220, Solid State Relay, DC 3.5-32VDC control, 40A, 20-220VDC Load Features Ratings from 7A to 100 Amp @ 1-480VDC Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Fastron Part Number F1D40-220 Switching Type DC Load Control Voltage 3.5-32VDC Load Current 40 Amp DC Surge Capability (10ms) 100 Amp DC Special Feature LED Indicator Mounting Style Panel Mount Load Voltage Range 20 - 220VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20 Datasheet Product Datasheet Equivalent See alternative D1D40K with raised terminals for alternative or D1D80 for higher current alternative App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

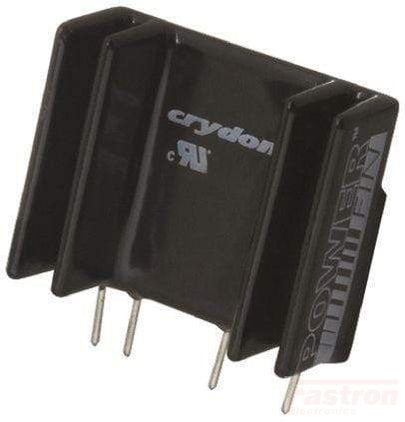

Crydom PF480D25R, SSR SIP, 15-32VDC Control, 25A, 48-530VAC Load, Random Crossing Features Ratings up to 25 Amp @ 660VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number PFE480D25R Switching Type Random Crossing ROHS Yes (Details) Control Voltage 15-32VDC Load Current 25 Amp (rms) Surge Capability 250 Amp (peak) Special Feature None Mounting Style PCB Mount Load Voltage Range 48-480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 25g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Accessories Din Rail Holder   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Fastron FDH8048RD3, Solid State Relay, 480VAC, 80 Amp, 3-32VDC Control, Random Crossing, Panel Mount, w/plastic Cover Ratings from 25A to 125 Amp @ 48-480VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 AC & DC control types Direct bond copper substrate Direct power lead frame Specification Fastron Part Number FDH8048RD3 Switching Type Random Crossing CE Yes Control Voltage 3-32VDC Load Current 80Amp (rms) Surge Capability 910 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 90-480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 250g Factory Pack Qty 20   Datasheet Product Datasheet

Read more less

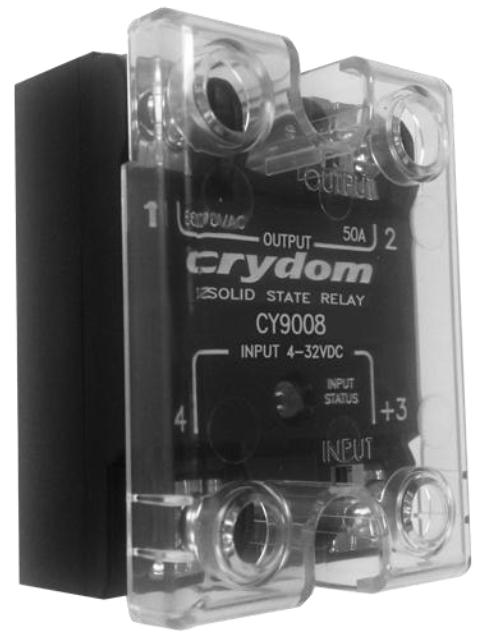

Crydom CY9008, Solid State Relay 660VAC 50A, 4-32VDC Control w/ Terminal Cover and LED Status Indicator. Equivalent to D2450G, HD4850G, HD6050G Features 50 Amp @ 24-660 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number CY9008 Switching Type Zero Crossing ROHS Yes Control Voltage 4-32VDC Load Current 50 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, IP20 Terminal Cover Mounting Style Panel Mount Load Voltage Range 48-660VAC EMC Compliant Level 3 Termination Style Screw Safety Approvals CE, ROHS, REACH, Note no UL approval available Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent D2450 HD4850 HD6050 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron FDH8048ZD3, Solid State Relay, 480VAC, 80 Amp, 90-280VAC Control, Zero Crossing, Panel Mount, w/plastic Cover Ratings from 25A to 125 Amp @ 48-480VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 AC & DC control types Direct bond copper substrate Direct power lead frame Specification Fastron Part Number FDH8048ZD3 Switching Type Zero Crossing CE Yes Control Voltage 3-32VDC Load Current 80Amp (rms) Surge Capability 910 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 90-480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 250g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Parts HD4875

Read more less

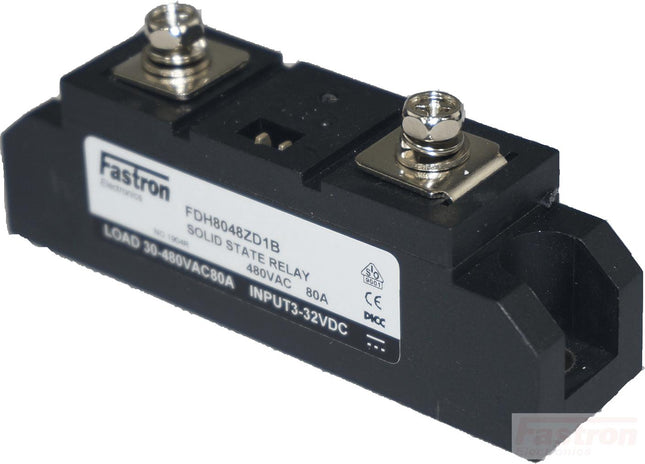

Fastron FDH8048ZD1B, Solid State Relay, 480VAC, 80 Amp, 3-32VDC Control, Zero Crossing, Panel Mount Power Module Style for 80mm rails Ratings from 25A to 125 Amp @ 48-480VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 AC & DC control types Direct bond copper substrate Direct power lead frame Specification Fastron Part Number FDH8048ZD1B Switching Type Zero Crossing CE Yes Control Voltage 3-32VDC Load Current 80Amp (rms) Surge Capability 910 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 90-480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 105g Factory Pack Qty 20   Datasheet Product Datasheet

Read more less

Crydom DC60S7, Solid State Relay, DC 3-32VDC control, 7A, 60VDC Load Features Ratings from 3A to 40 Amp @ 3-60VDC Transistor output UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DC60S7 Switching Type DC Load ROHS Yes (Details) Control Voltage 3-32VDC Load Current 7 Amp DC Surge Capability (10ms) 14 Amp DC Special Feature None Mounting Style Panel Mount Load Voltage Range 3 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent See D1D40K with raised terminals (Gen 3) for alternative or D1D20, D1D40, D1D80 for higher current alternatives App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom CMX60D10, Solid State Relay, PCB or Socket Mount, 3-10VDC Control, 10 Amp, 0-60VDC Load Features Ratings from 3A to 20 Amp @ 60-200VDC Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 Redesigned housing with anti-rotation barriers EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number CMX60D10 Switching Type DC Load ROHS Yes (Details) Control Voltage 3-10VDC Load Current 10 Amp DC Surge Capability (10ms) 100 Amp DC Special Feature None Mounting Style PCB Mount Load Voltage Range 0 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20 Datasheet Product Datasheet Equivalent Contact Us for Possible Replacement DIN Rail Holder Din Rail Holder App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
