Sealed DC Contactors
-
RER03B1BX, MiniTactor Contactor, 1500VDC, 25Amp, SPST-NO, 24VDC Coil, 500,000 Cycles, 3kV Isolation, 4.3mm Fastron Coil Terminals, 6.3mm Faston Power Terminals
Rincon Power RER03B1BX, MiniTactor Contactor, 1500VDC, 25Amp, SPST-NO, 24VDC Coil, 500,000 Cycles, 3kV Isolation, 4.3mm Fastron Coil Terminals, 6.3mm Faston Power Terminals Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24VDC options Ideal for battery powered systems or where low power is needed Small and lightweight Flexible package for installation Specification Rincon Power Part Number RER03B1BX Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 20A @ 85°C Mechanical Life @ 0 Amp 500,000 Operations Impulse Withstand 3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1500VDC Standards See datasheet Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1 Datasheet Product Datasheet
$79.00
$93.22 inclGST -
P125FDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 48VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69
Gigavac P125FDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 48VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P125FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1 Datasheet Product Datasheet
$118.16
$139.43 inclGST -
RER02P5BX, MiniTactor Contactor, 1000VDC, 25Amp, SPST-NO, 24VDC Coil, 500,000 Cycles, 3kV Isolation, M4 Load, M3 Coil
Rincon Power RER02P5BX, MiniTactor Contactor, 1000VDC, 25Amp, SPST-NO, 24VDC Coil, 500,000 Cycles, 3kV Isolation, M4 Load, M3 Coil Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24DC options Ideal for battery powered systems or where low power is needed Small and lightweight Flexible package for installation Specification Rincon Power Part Number RER02P5BX Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 20A @ 85°C Mechanical Life @ 0 Amp 500,000 Operations Impulse Withstand 3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1000VDC Standards See datasheet Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1 Datasheet Product Datasheet
$119.00
$140.42 inclGST -
P125BDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 12VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals
Gigavac P126BDA, Contactor SPST-NO, 30 AMP, 1200VDC, 12VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P126BDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 12VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1 Datasheet Product Datasheet
$123.82
$146.11 inclGST -
P125CDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 24VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69
Gigavac P125CDA, Contactor SPST-NO, 30 AMP, 1200VDC, 24VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P125CDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1 Datasheet Product Datasheet
$131.95
$155.70 inclGST -
P126CDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 24VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69
Gigavac P126CDA, Contactor SPST-NO, 30 AMP, 1200VDC, 24VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P126CDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1 Datasheet Product Datasheet
$141.90
$167.44 inclGST -
P126FDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 48VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69
Gigavac P126FDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 48VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P126FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1 Datasheet Product Datasheet
$141.90
$167.44 inclGST -

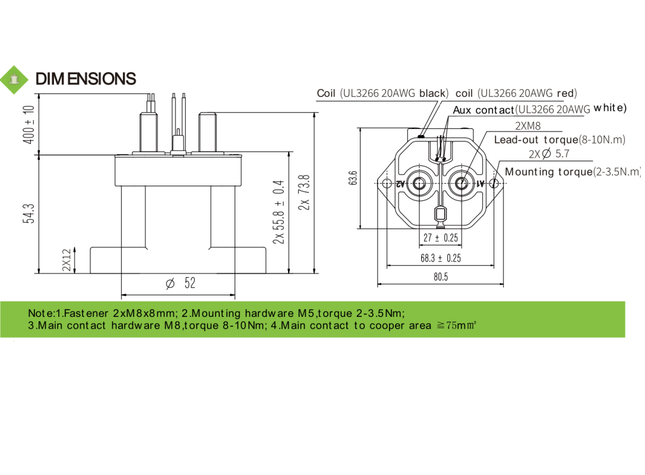

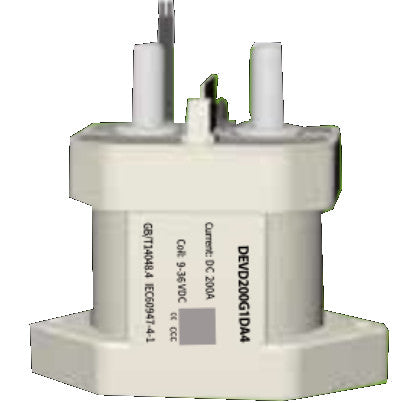

DEVD200E2DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 36-72VDC Coil, SPST-NO Auxiliary Contact
Fastron Electronics DEVD200E2DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 36-72VDC Coil, SPST-NO Auxiliary Contact Features Hermetically Sealed with inert gas CE, CCC Approved Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Side mounted version available Specification Fastron Part Number DEVD200E2DA4 Main Contact Type SPST-NO(silver plated copper) Auxiliary Contact Type SPST-NO Coil Voltage 36-72VDC Load Current 200 Amp Mechanical Life @ 0 Amp 200,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals Lead Wire Connection Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, CCC Termination Style M8 Unit Weight 550g Factory Pack Qty 1 Datasheet Product Datasheet
$155.00
$182.90 inclGST -
P195BDA, MiniTactor Contactor SPST-NO, 80 AMP, 1200VDC, 12VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals
Gigavac P195BDA, Contactor SPST-NO, 80 AMP, 1200VDC, 12VDC Coil Contactor Features Perfect for Photovoltaic/Battery Systems Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Chassi level power terminals Specification Gigavac Part Number P195BDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 12VDC Load Current 80 Amp Mechanical Life @ 0 Amp 100,000 Operations Dielectric at Sea Level 4.3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1 Datasheet Product Datasheet
$157.26
$185.57 inclGST -
P195CDA, MiniTactor Contactor SPST-NO, 80 AMP, 1200VDC, 24VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals
Gigavac P195CDA, Contactor SPST-NO, 80 AMP, 1200VDC, 24VDC Coil Contactor Features Perfect for Photovoltaic/Battery Systems Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Chassi level power terminals Specification Gigavac Part Number P195CDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 80 Amp Mechanical Life @ 0 Amp 100,000 Operations Dielectric at Sea Level 4.3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1 Datasheet Product Datasheet
$157.26
$185.57 inclGST -
P115CDA, MiniTactor Contactor, 1000VDC, 50A @ 25°C, 25A @ 85°C, SPST-NO, 24VDC Coil, 1,000,000 Cycles, 6kV Isolation, M4 Load, M3 Coil
Gigavac P115CDA, MiniTactor Contactor, 1000VDC, 50A @ 25°C, 25A @ 85°C, SPST-NO, 24VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Specification Gigavac Part Number P115CDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 50A @ 25°C, 25A @ 85°C Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1500VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1 Datasheet Product Datasheet
$158.90
$187.50 inclGST -
P115FDA, MiniTactor Contactor, 1000VDC, 50A @ 25°C, 25A @ 85°C, SPST-NO, 48VDC Coil, 1,000,000 Cycles, 6kV Isolation, M4 Load, M3 Coil
Gigavac P115FDA, MiniTactor Contactor, 1000VDC, 50A @ 25°C, 25A @ 85°C, SPST-NO, 48VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Specification Gigavac Part Number P115FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 50A @ 25°C, 25A @ 85°C Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1500VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1 Datasheet Product Datasheet
$158.90
$187.50 inclGST
