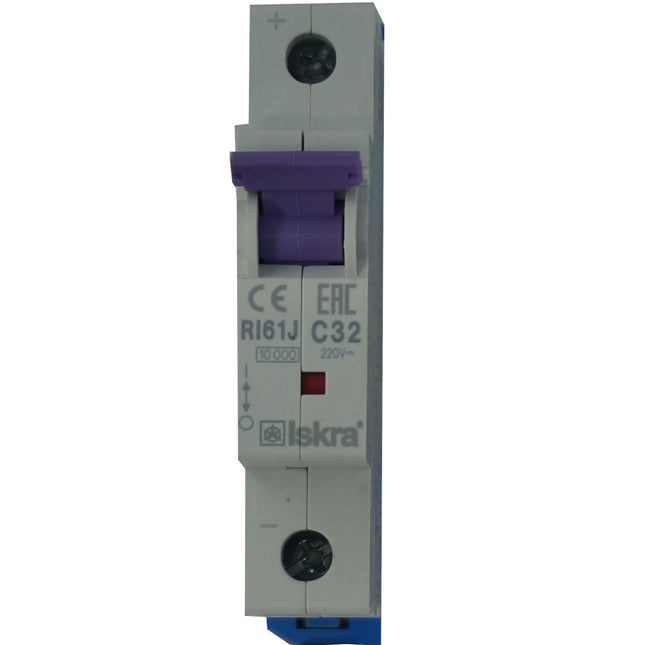

Iskra Doo RI61J C 32-10kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 32 Amp, 220VDC, 10kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C32 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 32 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 10kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Iskra Doo RI61J C 63-10kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 63 Amp, 220VDC, 10kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C63 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 63 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 10kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Iskra Doo RI61J C 25-10kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 25 Amp, 220VDC, 10kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C25 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 25 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 10kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Iskra Doo RI61J C 16-10kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 16 Amp, 220VDC, 10kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C16 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 16 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 10kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Iskra Doo RI61J C 40-10kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 40 Amp, 220VDC, 10kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C40 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 40 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 10kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

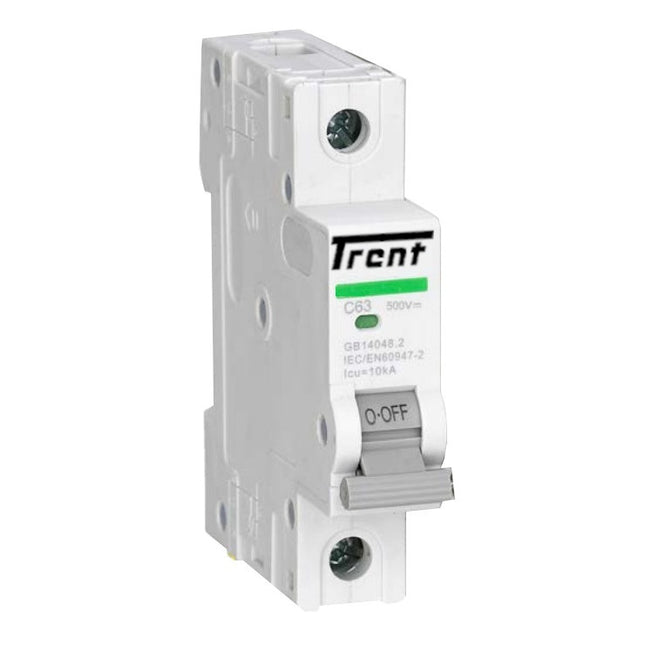

TRENT TGD-1PL C 6-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 6 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 6-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 6 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

Iskra Doo RI61J C 50-4.5kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 50 Amp, 220VDC, 4.5kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 4.5kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C50 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 50 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 4.5kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

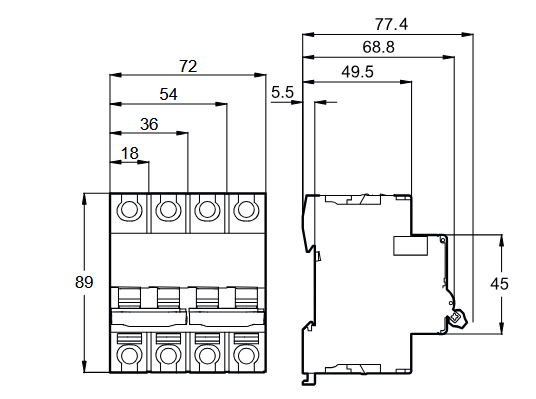

TRENT TGD-1PL C 32-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 32 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 32-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 32 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

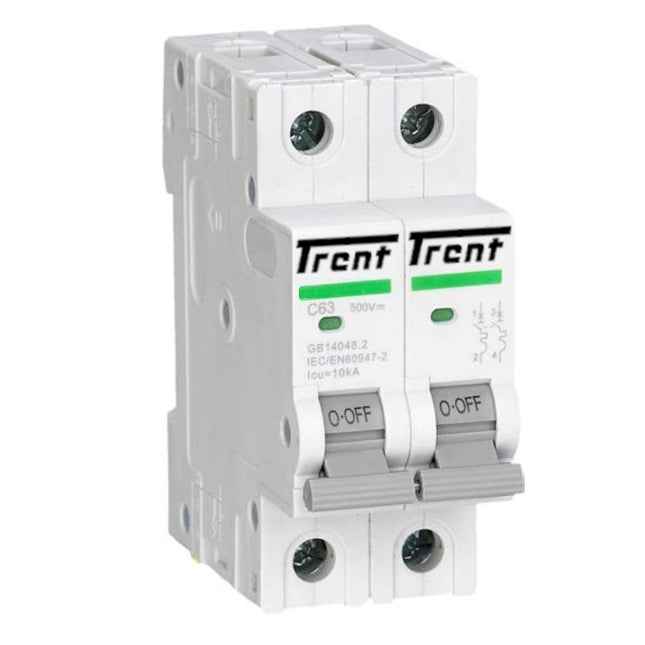

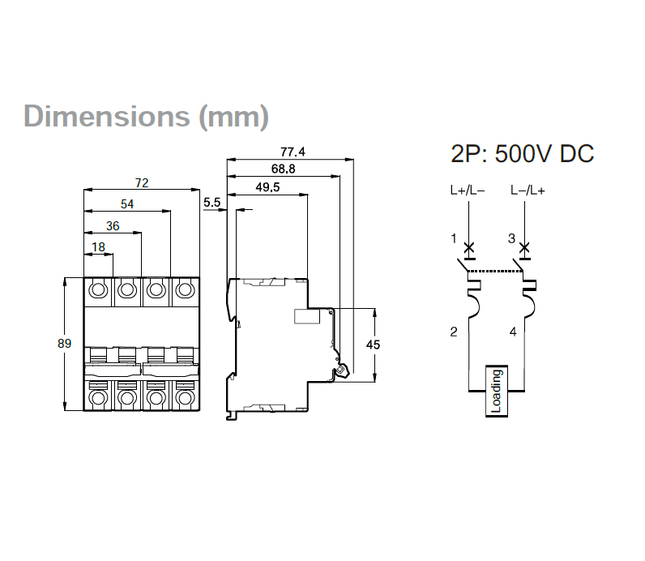

TRENT TGD-2PL C 10-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 10 Amp, 10kA, 500VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 2 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-2PL C 10-10kA Functions 2 Pole MCB - C Curve Nominal Voltage 500VDC @ 50/60Hz Nominal Current Range 10 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

Iskra Doo RI61J C 6-10kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 6 Amp, 220VDC, 4.5kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 4.5kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C6 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 6 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 4.5kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Iskra Doo RI62J C 32-4.5kA, 2 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 32 Amp, 440VDC, 4.5kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 4.5kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI62J C32 Functions 2 Pole MCB - C Curve Nominal Voltage 440VDC Nominal Current Range 32 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 500V Short Circuit Current 4.5kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 200g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Iskra Doo RI62J C 40-10kA, 2 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 40 Amp, 440VDC, 10kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI62J C40 Functions 2 Pole MCB - C Curve Nominal Voltage 440VDC Nominal Current Range 40 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 500V Short Circuit Current 10kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 200g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less
