DIN Rail Mount AC or DC Current Transducers

61 products

  • ACSP-300-010, Self Powered Split Core AC Current Transducer, 300 Amp AC, 0-10V Average RMS Output, 31mm aperture ACSP-300-010, Self Powered Split Core AC Current Transducer, 300 Amp AC, 0-10V Average RMS Output, 31mm aperture

    View options

    ACSP-300-010, Self Powered Split Core AC Current Transducer, 300 Amp AC, 0-10V Average RMS Output, 31mm aperture

    Out of stock

    ACSP-300-010, Self Powered Split Core AC Current Transducer, 300 Amp AC, 0-10V Average RMS Output, 31mm aperture Compact and versatile Self Powered Split Core AC Current Transducer, Comes with 0-10V/0-5V, or 4-20mA Average RMS Analogue Output Features ⌀31mm Aperture Split Core AC Average RMS Measurement +/-10V analogue output Busbar, or panel mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number ACSP-300-010 Technology AC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage Self Powered  Nominal Current (DC) 300 Amp RMS Response Time < 200mS Output 0-10VDC Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

    Read more

    Out of stock

    $249.00
    $293.82 inclGST

    View options

  • ACSP-200-010, Self Powered Split Core AC Current Transducer, 200 Amp AC, 0-10V Average RMS Output, 31mm aperture ACSP-200-010, Self Powered Split Core AC Current Transducer, 200 Amp AC, 0-10V Average RMS Output, 31mm aperture

    View options

    ACSP-200-010, Self Powered Split Core AC Current Transducer, 200 Amp AC, 0-10V Average RMS Output, 31mm aperture

    Out of stock

    ACSP-200-010, Self Powered Split Core AC Current Transducer, 200 Amp AC, 0-10V Average RMS Output, 31mm aperture Compact and versatile Self Powered Split Core AC Current Transducer, Comes with 0-10V/0-5V, or 4-20mA Average RMS Analogue Output Features ⌀31mm Aperture Split Core AC Average RMS Measurement +/-10V analogue output Busbar, or panel mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number ACSP-200-010 Technology AC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage Self Powered  Nominal Current (DC) 200 Amp RMS Response Time < 200mS Output 0-10VDC Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

    Read more

    Out of stock

    $249.00
    $293.82 inclGST

    View options

  • Last stock! ACSP-50-010, Self Powered Split Core AC Current Transducer, 50 Amp AC, 0-10V Average RMS Output, 31mm aperture ACSP-50-010, Self Powered Split Core AC Current Transducer, 50 Amp AC, 0-10V Average RMS Output, 31mm aperture

    ACSP-50-010, Self Powered Split Core AC Current Transducer, 50 Amp AC, 0-10V Average RMS Output, 31mm aperture

    3 pcs in stock

    ACSP-50-010, Self Powered Split Core AC Current Transducer, 50 Amp AC, 0-10V Average RMS Output, 31mm aperture Compact and versatile Self Powered Split Core AC Current Transducer, Comes with 0-10V/0-5V, or 4-20mA Average RMS Analogue Output Features ⌀31mm Aperture Split Core AC Average RMS Measurement +/-10V analogue output Busbar, or panel mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number ACSP-50-010 Technology AC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage Self Powered  Nominal Current (DC) 50 Amp RMS Response Time < 200mS Output 0-10VDC Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

    Read more

    3 pcs in stock

    $249.00
    $293.82 inclGST

  • ACSP-100-010, Self Powered Split Core AC Current Transducer, 100 Amp AC, 0-10V Average RMS Output, 31mm aperture ACSP-100-010, Self Powered Split Core AC Current Transducer, 100 Amp AC, 0-10V Average RMS Output, 31mm aperture

    View options

    ACSP-100-010, Self Powered Split Core AC Current Transducer, 100 Amp AC, 0-10V Average RMS Output, 31mm aperture

    Out of stock

    ACSP-100-010, Self Powered Split Core AC Current Transducer, 100 Amp AC, 0-10V Average RMS Output, 31mm aperture Compact and versatile Self Powered Split Core AC Current Transducer, Comes with 0-10V/0-5V, or 4-20mA Average RMS Analogue Output Features ⌀31mm Aperture Split Core AC Average RMS Measurement +/-10V analogue output Busbar, or panel mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number ACSP-100-010 Technology AC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage Self Powered  Nominal Current (DC) 100 Amp RMS Response Time < 200mS Output 0-10VDC Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

    Read more

    Out of stock

    $249.00
    $293.82 inclGST

    View options

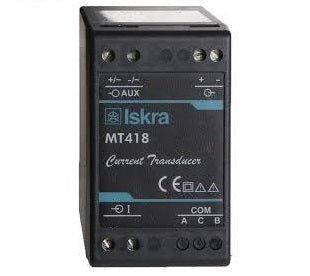

  • MT418 SUNAA, Programmable AC Current Transducer, Single Phase, 50/60Hz 12A AC input, 20-300VDC or 48-276VAC Aux Supply, Fully Programmable 0-10V or 4-20mA output, Standard Verison

    View options

    MT418 SUNAA, Programmable AC Current Transducer, Single Phase, 50/60Hz 12A AC input, 20-300VDC or 48-276VAC Aux Supply, Fully Programmable 0-10V or 4-20mA output, Standard Verison

    Out of stock

    Iskra Doo MT418 SUNAA, Programmable AC Current Transducer, Single Phase, 50/60Hz 12A AC input, 20-300VDC or 48-276VAC Aux Supply, Fully Programmable 0-10V or 4-20mA output, Standard Verison Class 0.5 (EN 60688) USB Comms as standard 0-10V or 4-20mA analogue output modules RMS values of current Simpel setting with USB self powered port Features : Measurement of nominal CT Current 0-12Amp Accuracy class 0.5 Input frequency 16 - 400 Hz RS 232/RS485 communication up to 115,200 bit/s or USBcommunication MODBUS RTU communication protocol Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs) Universal Supply 24-300VDC or 40-276VAC User-friendly PC MiQen software Specification Iskra Doo Part Number MT418 SUNAA Functions Single Phase AC Current Transducer Supply Voltage 24-300VDC or 40-276VAC Nominal Measurement Range 1,5,10 Amp Maximum Measurement Range 12 Amp Alarm N/A Tariff Input N/A Accuracy Class 0.5 Battery Backup N/A Real Time Clock 1min/month (30ppm) Isolation 3.5kV Comms USB (standard) RS232 2400-115200 b/s (Optional RS485) Weight 340g Enclosure Material UL94 Factory Pack Qty 1 EU Directives EN61010, EN60688,EN61326-1,60529,60068-2-1/-2/-6/-27/-30 Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP20   Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Software MiQen Setting Software

    Read more

    Out of stock

    $336.00
    $396.48 inclGST

    View options

  • AT-AA9-D-4, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 0-10V output

    AT-AA9-D-4, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 0-10V output

    Out of stock

    Current Transducer, AT-AA9-D-4, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 0-10V output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA9-D-4 Control Output 0-10V Average RMS Input 0-10 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22 - 60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    Out of stock

    $209.00
    $246.62 inclGST

  • Last stock! AT-AA9-D-1, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 4-20mA output

    AT-AA9-D-1, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 4-20mA output

    3 pcs in stock

    Current Transducer, AT-AA9-D-1, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA9-D-1 Control Output 4-20mA Average RMS Input 0-10 Amp rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22 - 60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    3 pcs in stock

    $209.00
    $246.62 inclGST

  • Last stock! AT-AA8-C-4, AC Current Transducer, Average RMS, 5 Amps, 24VDC Aux, 0-10V output

    AT-AA8-C-4, AC Current Transducer, Average RMS, 5 Amps, 24VDC Aux, 0-10V output

    1 pcs in stock

    Current Transducer, AT-AA9-D-4, AC Current Transducer, Average RMS, 5 Amps, 24VDC Aux, 0-10V output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA8-D-4 Control Output 0-10V Average RMS Input 0-5 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 24VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    1 pcs in stock

    $209.00
    $246.62 inclGST

  • AT-AA9-A-1, AC Current Transducer, Average RMS, 10 Amps, 100-240VAC/DC Aux, 4-20mA output

    AT-AA9-A-1, AC Current Transducer, Average RMS, 10 Amps, 100-240VAC/DC Aux, 4-20mA output

    Out of stock

    Current Transducer, AT-AA9-A-1, AC Current Transducer, Average RMS, 10 Amps, 100-240VAC/DC Aux, 4-20mA output output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA9-A-1 Control Output 4-20mA Average RMS Input 0-10 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    Out of stock

    $209.00
    $246.62 inclGST

  • AT-AAO(0-1)-A-1, AC Current Transducer, 1 Amp Average RMS, 100-240VAC/DC Aux, 4-20mA output

    AT-AAO(0-1)-A-1, AC Current Transducer, 1 Amp Average RMS, 100-240VAC/DC Aux, 4-20mA output

    Out of stock

    Current Transducer, AT-AAO(0-1)-A-1, AC Current Transducer, 1 Amp Average RMS, 100-240VAC/DC Aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AAO(0-1)-A-1 Control Output 4-20mA Average RMS Input 0-1 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    Out of stock

    $209.00
    $246.62 inclGST

  • Last stock! AT-AA8-A-4, AC Current Transducer, Average RMS, 5 Amps, 22-60VAC/DC Aux, 0-10V output

    AT-AA8-A-4, AC Current Transducer, Average RMS, 5 Amps, 22-60VAC/DC Aux, 0-10V output

    3 pcs in stock

    Current Transducer, AT-AA8-A-4, AC Current Transducer, Average RMS, 5 Amps, 22-60VAC/DC Aux, 0-10V output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA8-A-4 Control Output 0-10V Average RMS Input 0-5 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    3 pcs in stock

    $209.00
    $246.62 inclGST

  • AT-DAO(0-10)-A-1, DC Current Transducer, 0-10Amp DC, 100-240VAC/DC Aux, 4-20mA output

    AT-DAO(0-10)-A-1, DC Current Transducer, 0-10Amp DC, 100-240VAC/DC Aux, 4-20mA output

    Out of stock

    AT-DAO(0-10)-A-1, DC Current Transducer, 0-10Amp DC, 100-240VAC/DC Aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-DAO(0-10)-A-1 Control Output 4-20mA Input 0-10 Amp DC Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    Out of stock

    $209.00
    $246.62 inclGST
