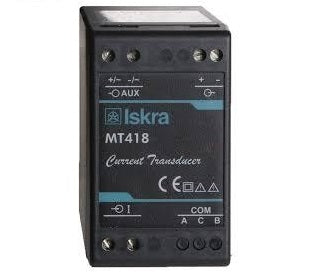

MT418 SUNAA, Programmable AC Current Transducer, Single Phase, 50/60Hz 12A AC input, 20-300VDC or 48-276VAC Aux Supply, Fully Programmable 0-10V or 4-20mA output, Standard Verison

MT418 SUNAA, Programmable AC Current Transducer, Single Phase, 50/60Hz 12A AC input, 20-300VDC or 48-276VAC Aux Supply, Fully Programmable 0-10V or 4-20mA output, Standard Verison

Product form

Out of stock

$336.00 $369.60 inclGST Excl. VAT

        SKU: FE-MT418 SUNAA

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Iskra Doo MT418 SUNAA, Programmable AC Current Transducer, Single Phase, 50/60Hz 12A AC input, 20-300VDC or 48-276VAC Aux Supply, Fully Programmable 0-10V or 4-20mA output, Standard Verison

        • Class 0.5 (EN 60688)
        • USB Comms as standard
        • 0-10V or 4-20mA analogue output modules
        • RMS values of current
        • Simpel setting with USB self powered port

        Features :

        • Measurement of nominal CT Current 0-12Amp

        • Accuracy class 0.5

        • Input frequency 16 - 400 Hz
        • RS 232/RS485 communication up to 115,200 bit/s or USBcommunication
        • MODBUS RTU communication protocol
        • Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
        • Universal Supply 24-300VDC or 40-276VAC
        • User-friendly PC MiQen software
          Specification
          Iskra Doo Part Number MT418 SUNAA
          Functions Single Phase AC Current Transducer
          Supply Voltage 24-300VDC or 40-276VAC
          Nominal Measurement Range 1,5,10 Amp
          Maximum Measurement Range 12 Amp
          Alarm N/A
          Tariff Input N/A
          Accuracy Class 0.5
          Battery Backup N/A
          Real Time Clock 1min/month (30ppm)
          Isolation 3.5kV
          Comms USB (standard) RS232 2400-115200 b/s (Optional RS485)
          Weight 340g
          Enclosure Material UL94
          Factory Pack Qty 1
          EU Directives

          EN61010, EN60688,EN61326-1,60529,60068-2-1/-2/-6/-27/-30
          Safety

          Protection Class II

          600V rms, installation category II

          300V rms, installation category III

          Pollution Degree 2 in compliance with SIST EN 61010-1:2002
          Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
          Enclosure Protection IP20


          Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes
          Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes
          Operating Temperature -20 →+70 °C



          Datasheet
          Software
