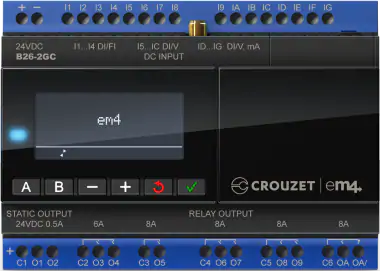

Crouzet 88981106 Crouzet em4 Local PLC Starter Kit, 16 x Inputs, 2 (PWM), 8 (Relay) Outputs, 24 V ac/dc Up to 104 I/Os - 16 DI (4 High Speed / 8 AI) 10 x DO (2 x Solid State 0.5Amp PWM, 2 Relays 6 Amp, and 6 Relays 8 Amp) Optional Wireless Programming & Control with native 3G and Crouzet Virtual Display Optional Modbus RTU Network (Master/Slave) Local datalog management Up to 1000 programing blocks with intuitive Crouzet Soft to go from simple to complex applications HMI Screens Available Specification Crouzet Part Number 88981106 (em4 Local) Analogue Inputs 12 x 0 - 10VDC, (4 High Speed) Digital Inputs 24VAC/DC @ 2.1mA (8 Standard and 4 High Speed) Digital Outputs Relay, 12 or 24VAC/DC, 250VAC @ 100mA minimum (2 x 6 Amp, 6 x 8 Amp) PWM SSR Output 2 Expandable Yes Comms None (RS485, Bluetooth,3G,Standard, Ethernet) and Wifi versions available LCD Display Yes Mounting Style DIN Rail Mount (124.6mm) Supply Voltage Range 24VAC/DC (21.6 - 28.8VAC) Termination Style Screw Weight 350g Environmental Reach, RoHS, Halogen free 1272/2008/CE Certification CE, cULus Listed Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22   Datasheet Product Datasheet Software Crouzet Touch Soft V6.00.02.173 Software M3-soft-AC9-V3.1.2.0_ML Remote Control Software CVD_PC_V2_3_01_02 Crouzet Soft EVO EM4 1.12.01.14

Read more less

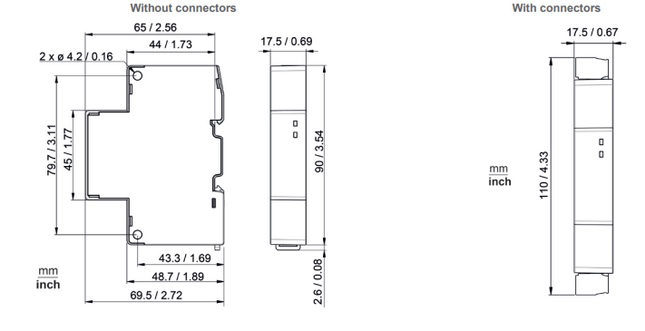

88983902 Millenium Slim CB8S8, 8 I/O, Incl 2 Convertable Digital/Analogue/High Speed Inputs, 2 Convertable Digital/Analogue/PWM, 4 Static/PWM Outputs, 24VDC Supply, Bluetooth, Virtual Display, Dtalogger, Free software Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting Allow the use of the entire library of specific functions blocs of the software workshop Operating temperature range (-20 °C →+60 °C) Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters) Non Expandable Specification Crouzet Part Number 88983902 Millenium Slim CB8S8 Analogue Inputs 0-10VDC (x4) Digital Inputs 12/24VDC (4.4mA @ 12VDC) (x4) Digital Outputs 4 x Relay, 5-30VDC,24-250VAC @ 10mA minimum PWM SSR Output 12-24VDC @ 500mA (x4) Expandable No LCD Display No Bluetooth App YES Mounting Style DIN Rail Mount (17.5mm) Supply Voltage Range 24VDC (21.6 - 28.8VDC) Termination Style Screw Weight 200g Certification CE, UL, CSA, GL Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+60 °C except CB and XB versions in VDC : -30 →+60 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Millenium CBS8 Datasheet Software Crouzet Touch Soft V6.00.02.173 Software M3-soft-AC9-V3.1.2.0_ML Remote Control Software CVD_PC_V2_3_01_02 Crouzet Soft EVO EM4 1.12.01.14

Read more less

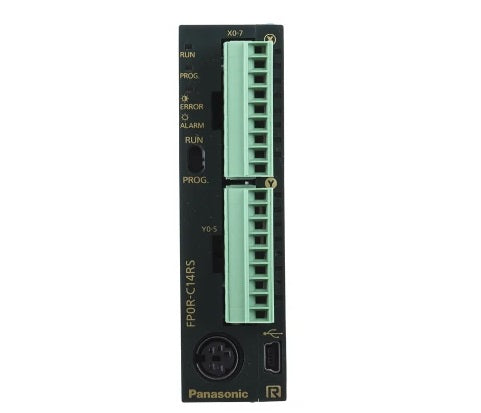

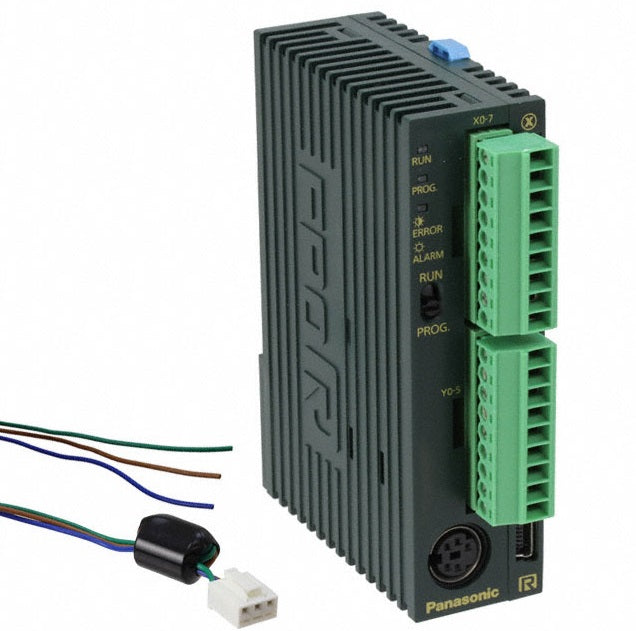

AFP0RC14RS, Progammabel Logic Controller (PLC) 8 x On/Off inputs, 6 x Relay Outputs, 24VDC Allow the use of the entire library of specific functions blocs of the software workshop Expandable   Datasheet Datasheet

Read more less

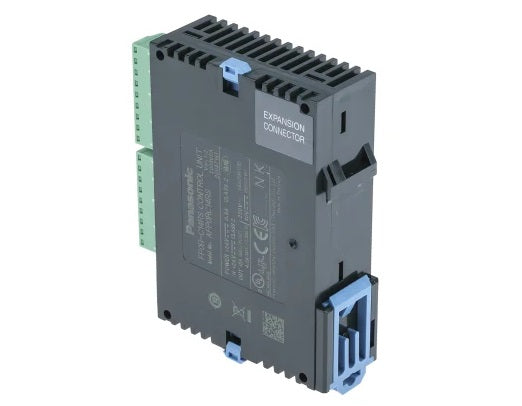

AFP0RE16RS, Expansion for FP0R Series Progammable Logic Controller (PLC) 8 x On/Off inputs, 8 x Relay Outputs, 24VDC Allow the expansion of outrouts for AFP0 Series , Expansion for Progammable Logic Controller (PLC) 8 x On/Off inputs, 8 x Relay Outputs, 24VDC.  Datasheet Datasheet
