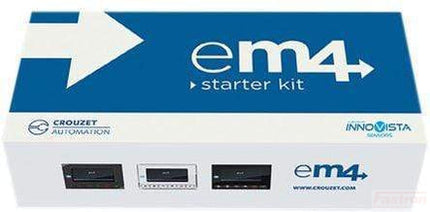

88981106 Crouzet em4 Local Nano PLC Starter Kit, 16 x Inputs, 2 (PWM), 8 (Relay) Outputs, 24 V ac/dc

88981106 Crouzet em4 Local Nano PLC Starter Kit, 16 x Inputs, 2 (PWM), 8 (Relay) Outputs, 24 V ac/dc

Product form
Free pickup in our shop(s)

1 pcs in stock

$919.34 $1,011.27 inclGST Excl. VAT

        SKU: FE-88981106

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

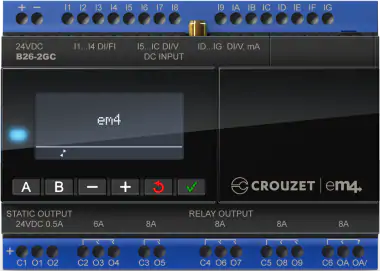

        Crouzet 88981106 Crouzet em4 Local PLC Starter Kit, 16 x Inputs, 2 (PWM), 8 (Relay) Outputs, 24 V ac/dc

        • Up to 104 I/Os - 16 DI (4 High Speed / 8 AI)
        • 10 x DO (2 x Solid State 0.5Amp PWM, 2 Relays 6 Amp, and 6 Relays 8 Amp)
        • Optional Wireless Programming & Control with native 3G and Crouzet Virtual Display
        • Optional Modbus RTU Network (Master/Slave)
        • Local datalog management
        • Up to 1000 programing blocks with intuitive Crouzet Soft to go from simple to complex applications
        • HMI Screens Available
            Specification
            Crouzet Part Number 88981106 (em4 Local)
            Analogue Inputs 12 x 0 - 10VDC, (4 High Speed)
            Digital Inputs 24VAC/DC @ 2.1mA (8 Standard and 4 High Speed)
            Digital Outputs Relay, 12 or 24VAC/DC, 250VAC @ 100mA minimum (2 x 6 Amp, 6 x 8 Amp)
            PWM SSR Output 2
            Expandable Yes
            Comms None (RS485, Bluetooth,3G,Standard, Ethernet) and Wifi versions available
            LCD Display Yes
            Mounting Style DIN Rail Mount (124.6mm)
            Supply Voltage Range 24VAC/DC (21.6 - 28.8VAC)
            Termination Style Screw
            Weight 350g
            Environmental Reach, RoHS, Halogen free 1272/2008/CE
            Certification CE, cULus Listed
            Factory Pack Qty 1
            Over Voltage Category 3 in accordance with IEC/EN 60664-1
            Pollution Degree 2 in accordance with IEC/EN 61131-2
            Protection rating IP40 (Front), IP20 (Rear)
            Mechanical Resistance

            Immunity to vibrations IEC/EN 60068-2-6, test Fc

            Immunity to shock IEC/EN 60068-2-27, test Ea
            Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
            Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
            Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22



            Datasheet
            Software

            Read more

            Specifications

            • Weight: 200gr
            • Usage: Indoor & outdoor
