Fastron FIR-1622-24VAC/12VDC, 4 Pole 2 x SPST NO, 2 x SPST NC, Bistable Relay with Manual Override 440VAC 16 Amp, 24VAC/12VDC Control Voltage, 50/60Hz Features 16 Amp (rms) @ 240VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-1622-24VAC/12VDC Switching Type 2 x SPST NO, 2 x SPST NC Approvals CE Coil Voltage 24VAC/12VDC 50/60Hz Load Current Rating 16 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

Fastron FIR-1622-24VDC / 48VAC, 4 Pole 2 x SPST NO, 2 x SPST NC, Bistable Relay with Manual Override 440VAC 16 Amp, 24VDC / 48VAC Control Voltage, 50/60Hz Features 16 Amp (rms) @ 240VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-1622-24VDC / 48VAC Switching Type 2 x SPST NO, 2 x SPST NC Approvals CE Coil Voltage 24VDC / 48VAC Load Current Rating 16 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

Iskra BI463-2C-24VAC, Four Pole 2 x SPDT CO Bistable Switch/Latching Relay with Manual Control, 440VAC, 63 Amp 24VAC Coil Voltage (Resistive) Features 63 Amp (rms) @ 440VAC DIN Rail Mount Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI463-2C-24VAC Switch/Latching Relay Type 2 x SPDT CO 440VAC/220VDC Approvals CE Coil Voltage 24VAC Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature With Manual Control Mounting Style DIN Rail Mount Load Voltage Range 63 Amp (rms) @ 440VAC Isolation 4kV Termination Style Screw Unit Weight 195g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

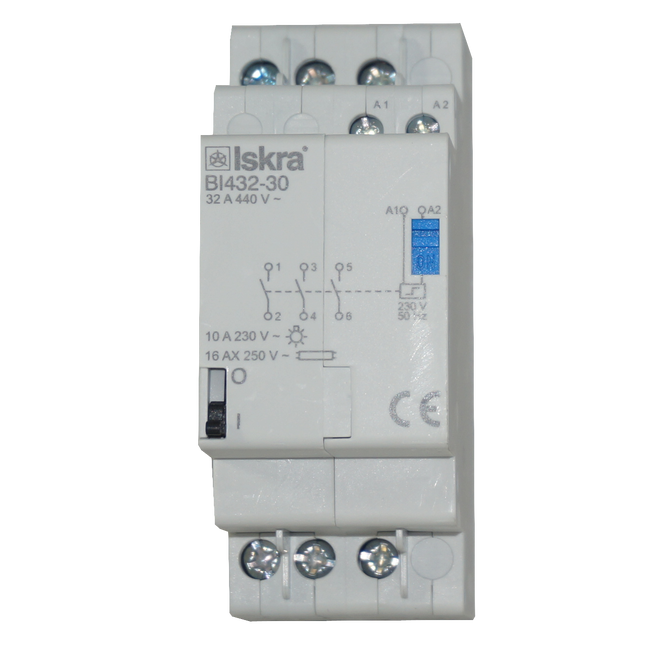

Iskra BI432-30-24VAC, Three Pole 3 x SPST Bistable Switch/Latching Relay with Manual Control, 440VAC, 32 Amp 24VAC Coil Voltage (Resistive) Features 32 Amp (rms) @ 250VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC DIN Rail Mount Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI432-30-24VAC Switch/Latching Relay Type 3 x SPST 440VAC/220VDC Approvals CE Coil Voltage 24VAC Load Current (RMS/DC) 32 Amp (rms) @ 440VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC Special Feature With Manual Control Mounting Style DIN Rail Mount Load Voltage Range 32 Amp (rms) @ 440VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC Isolation 4kV Termination Style Screw Unit Weight 195g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

Iskra BI232-11-24VDC, Two Pole 1 x NO SPST, 1 x NC SPST, 230VAC @ 32 Amp (Resistive), 24VDC @ 32 Amp Bistable Switch/Latching Relay with Manual Control, with 24VDC Coil Voltage Features 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC DIN Rail Mount Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI232-11-24VDC Switch/Latching Relay Type 1 x SPST NO 250VAC/220VDC, 1 x SPST NC 250VAC/220VDC Approvals CE Coil Voltage 24VDC Load Current (RMS/DC) 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC Special Feature Manual and Impulse Controlled Mounting Style DIN Rail Mount Load Voltage Range 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC Isolation 4kV Termination Style Screw Unit Weight 60g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

Iskra BI432-2C-24VAC, Four Pole 2 x SPDT CO Bistable Switch/Latching Relay with Manual Control, 440VAC, 32 Amp 230VAC Coil Voltage (Resistive) Features 32 Amp (rms) @ 440VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC DIN Rail Mount Changeover Contact Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI432-2C-24VAC Switch/Latching Relay Type 2 x SPDT CO 440VAC/220VDC Approvals CE Coil Voltage 24VAC Load Current (RMS/DC) 32 Amp (rms) @ 440VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC Special Feature With Manual Control Mounting Style DIN Rail Mount Load Voltage Range 32 Amp (rms) @ 440VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC Isolation 4kV Termination Style Screw Unit Weight 195g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

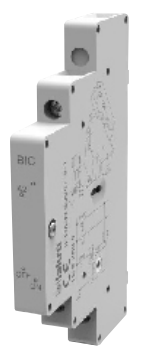

BIN20, Auxiliary Contact for Iskra Bistable Switch/Latching Relays, 2 x NO, 6 Amp @ 230VAC

Read more less

Iskra BI480-22-230VAC, Four Pole 2 x SPST NO, 2 x SPST NC Bistable Switch/Latching Relay with Manual Control, 440VAC, 80 Amp 230VAC Coil Voltage (Resistive) Features 80 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI480-22-230VAC Switch/Latching Relay Type 4 x SPST NO Approvals CE Coil Voltage 230VAC Load Current (RMS/DC) 80 Amp (rms) @ 440VAC Special Feature With Manual Control Mounting Style DIN Rail Mount Load Voltage Range 80 Amp (rms) @ 440VAC Isolation 4kV Termination Style Screw Unit Weight 390g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

Iskra BI480-31-230VAC, Four Pole 3 x SPST NO, 1 x SPST NC Bistable Switch/Latching Relay with Manual Control, 440VAC, 80 Amp 230VAC Coil Voltage (Resistive) Features 80 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI480-31-230VAC Switch/Latching Relay Type 4 x SPST NO Approvals CE Coil Voltage 230VAC Load Current (RMS/DC) 80 Amp (rms) @ 440VAC Special Feature With Manual Control Mounting Style DIN Rail Mount Load Voltage Range 80 Amp (rms) @ 440VAC Isolation 4kV Termination Style Screw Unit Weight 390g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

Iskra BI463-22-230VAC, Four Pole 2 x SPST NO, 2 x SPST NC Bistable Switch/Latching Relay with Manual Control, 440VAC, 63 Amp 230VAC Coil Voltage (Resistive) Features 63 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI463-22-230VAC Switch/Latching Relay Type 2 x SPST NO, 2 x SPST NC Approvals CE Coil Voltage 230VAC Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature With Manual Control Mounting Style DIN Rail Mount Load Voltage Range 63 Amp (rms) @ 440VAC Isolation 4kV Termination Style Screw Unit Weight 195g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less
