Bistable Relay/Switch Latching Relay/Impulse Contactors

BI463-22-240VAC, Four Pole 2 x SPST NO 2 x SPST NC Bistable Switch/Latching Relay with Manual Control, 440VAC, 63 Amp 240VAC Coil Voltage (Resistive)-Bistable Switch/Latching Relay-Iskra Doo-Fastron Electronics Store

BI463-2C-230VAC, Four Pole 2 x SPDT CO Bistable Switch/Latching Relay with Manual Control, 440VAC, 63 Amp 230VAC Coil Voltage (Resistive)

7 pcs in stock

Iskra BI463-2C-230VAC, Four Pole 2 x SPDT CO Bistable Switch/Latching Relay with Manual Control, 440VAC, 63 Amp 230VAC Coil Voltage (Resistive) Features 63 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI463-2C-230VAC Switch/Latching Relay Type 2 x SPDT CO 440VAC/220VDC Approvals CE Coil Voltage 230VAC Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature With Manual Control Mounting Style DIN Rail Mount Load Voltage Range 63 Amp (rms) @ 440VAC Isolation 4kV Termination Style Screw Unit Weight 195g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

7 pcs in stock

$62.00
$73.16 inclGST

BI232-10-24VDC, Single Pole 1 x NO SPST, 240VAC @ 32 Amp (Resistive), 24VDC @ 18 Amp Bistable Switch/Latching Relay/Relay with Manual Control, with 24VDC Coil Voltage-Bistable Switch/Latching Relay-Iskra Doo-Fastron Electronics Store

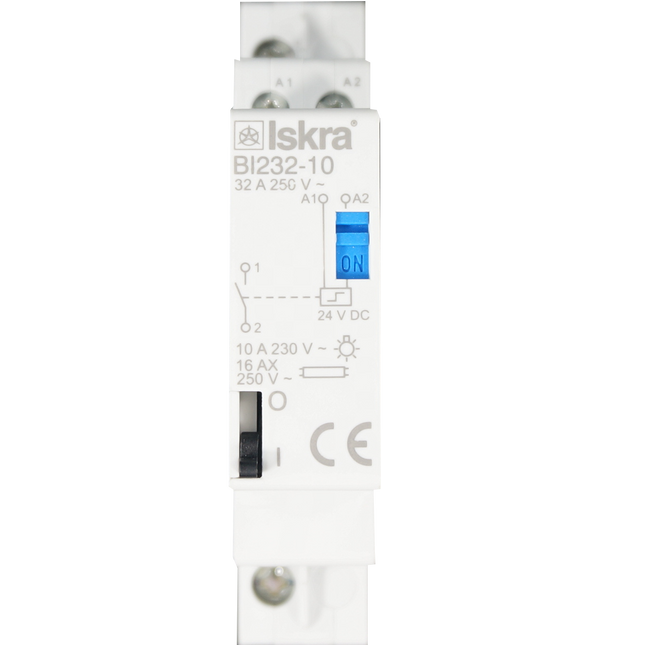

BI232-10-24VDC, One Pole 1 x NO SPST, 230VAC @ 32 Amp (Resistive), 24VDC @ 18 Amp Bistable Switch/Latching Relay with Manual Control, with 24VDC Coil Voltage

Out of stock

Iskra BI232-10-24VDC, One Pole 1 x NO SPST, 230VAC @ 32 Amp (Resistive), 24VDC @ 18 Amp Bistable Switch/Latching Relay with Manual Control, with 24VDC Coil Voltage Features 32 Amp (rms) @ 250VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC DIN Rail Mount Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI232-10-24VDC Switch/Latching Relay Type 1 x SPST 250VAC/220VDC Approvals CE Coil Voltage 24VDC Load Current (RMS/DC) 32 Amp (rms) @ 250VAC/18 Amp @ 24VDC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC Special Feature Manual and Impulse Controlled Mounting Style DIN Rail Mount Load Voltage Range 32 Amp (rms) @ 250VAC/18 Amp @ 24VAC/DC/10 Amp @ 48VDC/4 Amp @ 60VDC/1.2 Amp @ 110VDC/0.3 Amp @ 220VDC Isolation 4kV Termination Style Screw Unit Weight 60g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

Out of stock

$39.00
$46.02 inclGST

View options

BI232-10-240VAC, Single Pole 1 x NO SPST, 240VAC @ 32 Amp (Resistive), 24VDC @ 18 Amp Bistable Switch/Latching Relay/Relay with Manual Control, with 240VAC Coil Voltage-Bistable Switch/Latching Relay-Iskra Doo-Fastron Electronics Store

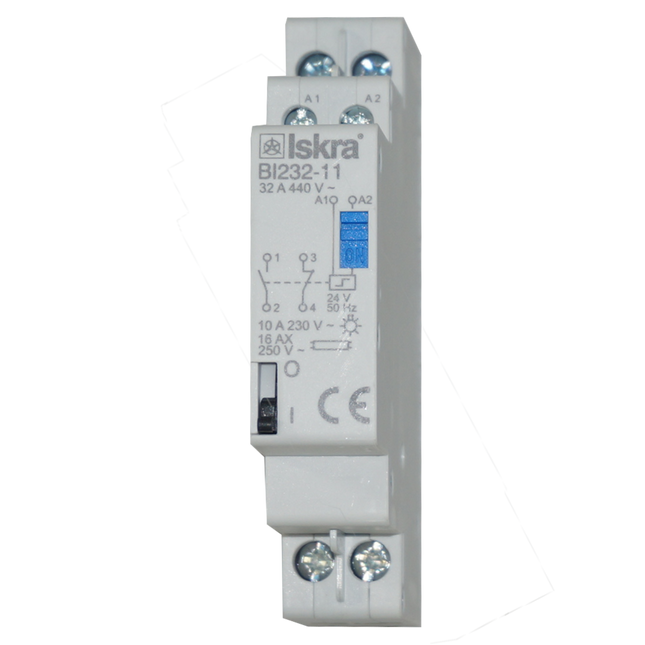

BI232-11-24VAC, Two Pole 1 x NO SPST, 1 x NC SPST, 230VAC @ 32 Amp (Resistive), 24VDC @ 32 Amp Bistable Switch/Latching Relay with Manual Control, with 24VAC Coil Voltage

2 pcs in stock

Iskra BI232-11-24VAC, Two Pole 1 x NO SPST, 1 x NC SPST, 230VAC @ 32 Amp (Resistive), 24VDC @ 32 Amp Bistable Switch/Latching Relay with Manual Control, with 24VAC Coil Voltage Features 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC DIN Rail Mount Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI232-11-24VAC Switch/Latching Relay Type 1 x SPST NO 250VAC/220VDC, 1 x SPST NC 250VAC/220VDC Approvals CE Coil Voltage 24VAC Load Current (RMS/DC) 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC Special Feature Manual and Impulse Controlled Mounting Style DIN Rail Mount Load Voltage Range 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC Isolation 4kV Termination Style Screw Unit Weight 60g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

2 pcs in stock

$39.00
$46.02 inclGST

FIR-3210-24VDC, 1 Pole 1 x SPST NO, Bistable Relay with Manual Override 230VAC/110VDC 32 Amp 50/60Hz, 24VDC / 48VAC Coil Voltage

120 pcs in stock

Fastron FIR-32-20M-24VDC / 48VAC, 1 Pole 1 x SPST NO, Bistable Relay 230VAC/110VDC 32 Amp 50/60Hz, 24VDC / 48VAC Control Voltage Features 32 Amp (rms) @ 230VAC/110VDC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-32-20M-24VDC / 48VAC Switching Type 2 x SPST NO Approvals CE Coil Voltage 24VDC / 48VAC Load Current (RMS/DC) 32 Amp (rms) @ 230VAC/110VDC Special Feature Mounting Style DIN Rail Mount Load Voltage Range 230VAC/110VDC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

120 pcs in stock

$47.00
$55.46 inclGST

FIR-3210-230VAC/110VDC, 1 Pole 1 x SPST NO, Bistable Relay with Manual Override 230VAC/110VDC 32 Amp 50/60Hz, 232VAC Control Voltage

120 pcs in stock

Fastron FIR-32-20M-230VAC/110VDC, 1 Pole 1 x SPST NO, Bistable Relay 230VAC/110VDC 32 Amp 50/60Hz, 232VAC Control Voltage Features 32 Amp (rms) @ 230VAC/110VDC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-32-20M-230VAC/110VDC Switching Type 2 x SPST NO Approvals CE Coil Voltage 230VAC/110VDC 50/60Hz Load Current (RMS/DC) 32 Amp (rms) @ 230VAC/110VDC Special Feature Mounting Style DIN Rail Mount Load Voltage Range 230VAC/110VDC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

120 pcs in stock

$47.00
$55.46 inclGST

FIR-16-C-230VAC/110VDC, One Pole 1 x SPDT CO Bistable Relay with Manual Override 240VAC 16 Amp, 230VAC/110VDC 50/60Hz Control Voltage

Out of stock

Fastron FIR-16-M-230VAC/110VDC, One Pole 1 x SPDT CO Bistable Relay 240VAC 16 Amp, 230VAC/110VDC/220VDC 50/60Hz Control Voltage Features 16 Amp (rms) @ 240VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-16-M-230VAC/110VDC Switching Type 1 x SPDT CO Approvals CE Coil Voltage 230VAC/110VDC 50/60Hz Load Current Rating 16 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 240VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

Out of stock

$38.00
$44.84 inclGST

View options

FIR-16-C-24VDC, One Pole 1 x SPDT CO Bistable Relay with Manual Override 240VAC, 16 Amp, 24VDC / 48VAC Coil Voltage, 50/60Hz

Out of stock

Fastron FIR-16-M-24VDC / 48VAC, One Pole 1 x SPDT NC Bistable Relay 240VAC, 16 Amp, 24VDC / 48VAC Control Voltage, 50/60Hz Features 16 Amp (rms) @ 240VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-16-M-24VDC / 48VAC Switching Type 1 x SPDT CO Approvals CE Coil Voltage 24VDC / 48VAC Load Current Rating 16 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 240VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Datasheet

Read more less

Out of stock

$38.00
$44.84 inclGST

View options

FIR-16-C-24VAC/12VDC, One Pole 1 x SPDT CO Bistable Relay with Manual Override 240VAC, 16 Amp, 24VAC/12VDC Control Voltage, 50/60Hz

Out of stock

Fastron FIR-16-M-24VAC/12VDC, One Pole 1 x SPDT CO Bistable Relay 240VAC, 16 Amp, 24VAC/12VDC Control Voltage, 50/60Hz Features 16 Amp (rms) @ 240VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-16-M-24VAC/12VDC Switching Type 2 x SPDT CO Approvals CE Coil Voltage 24VAC/12VDC Load Current Rating 16 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 240VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Datasheet

Read more less

Out of stock

$38.00
$44.84 inclGST

View options

FIR-16-2C-230VAC/110VDC, 2 Pole 2 x SPDT CO, Bistable Relay with Manual Override 440VAC 16 Amp 50/60Hz, 230VAC/110VDC Control Voltage

Out of stock

Fastron FIR-16-M-230VAC/110VDC, 2 Pole 2 x SPDT CO, Bistable Relay 440VAC 16 Amp 50/60Hz, 216VAC Control Voltage Features 16 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-16-M-230VAC/110VDC Switching Type 2 x SPDT CO Approvals CE Coil Voltage 230VAC/110VDC 50/60Hz Load Current (RMS/DC) 16 Amp (rms) @ 416VAC Special Feature Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

Out of stock

$33.60
$39.65 inclGST

View options

FIR-16-2C-24VAC/12VDC, 2 Pole 2 x SPDT CO, Bistable Relay with Manual Override 440VAC 16 Amp 50/60Hz, 24VAC/12VDC Control Voltage

Out of stock

Fastron FIR-16-M-24VAC/12VDC, 2 Pole 2 x SPDT CO, Bistable Relay 440VAC 16 Amp 50/60Hz, 24VAC/12VDC Control Voltage Features 16 Amp (rms) @ 440VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-16-M-24VAC/12VDC Switching Type 2 x SPDT CO Approvals CE Coil Voltage 24VAC/12VDC Load Current (RMS/DC) 16 Amp (rms) @ 416VAC Special Feature Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

Out of stock

$33.60
$39.65 inclGST

View options

FIR-16-2C-24VDC, 2 Pole 2 x SPDT CO, Bistable Relay with Manual Override 440VAC 16 Amp 50/60Hz, 24VDC / 48VAC Coil Voltage

Out of stock

Fastron FIR-16-M-24VDC / 48VAC, 2 Pole 2 x SPDT CO, Bistable Relay 440VAC 16 Amp 50/60Hz, 24VDC / 48VAC Control Voltage Features 16 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-16-M-24VDC / 48VAC Switching Type 2 x SPDT CO Approvals CE Coil Voltage 24VDC / 48VAC Load Current (RMS/DC) 16 Amp (rms) @ 416VAC Special Feature Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

Out of stock

$33.60
$39.65 inclGST

View options

FIR-1622-240VAC, 4 Pole 2 x SPST NO, 2 x SPST NC, Bistable Relay with Manual Override 440VAC 16 Amp, 240VAC Control Voltage, 50/60Hz

Out of stock

Fastron FIR-1622-240VAC, 4 Pole 2 x SPST NO, 2 x SPST NC, Bistable Relay with Manual Override 440VAC 16 Amp, 240VAC Control Voltage, 50/60Hz Features 16 Amp (rms) @ 240VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-1622-240VAC Switching Type 2 x SPST NO, 2 x SPST NC Approvals CE Coil Voltage 240VAC 50/60Hz Load Current Rating 16 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20 Datasheet Relay Datasheet

Read more less

Out of stock

$41.00
$48.38 inclGST

View options
