Infineon T398N04TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T398N04TOF Vrrm 400V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 398 Amp Package Size ø41 x 14mm Itsm 5.2 kA VF(to) 1V Tj(max) 125°C rF 0.4mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.1°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 70g Clamping Force 3 - 6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives T690N06TOF T430N16TOF Heatsink Heatsink Profiles

Read more less

Infineon T298N08TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T298N08TOF Vrrm 800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 298 Amp Package Size ø41 x 14mm Itsm 4.9 kA VF(to) .85V Tj(max) 125°C rF 0.9mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.088°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 300g Clamping Force 3 - 6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete, See T430N16TOF Heatsink Heatsink Profiles

Read more less

Thyristor(SCR) PUK 178 Amp, 1600V, 41/14 Datasheet Product Datasheet Alternatives T430N16TOF , Obsolete

Read more less

Infineon T1509N16TOF Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number T1509N16TOF Vrrm 1600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 1500 Amp Package Size ø74 x 26mm Itsm 35 kA VF(to) 0.9V Tj(max) 180°C rF 0.15mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.0184°C/W R th(c-h) (double sided cooled) 0.0025°C/W Weight 600g Clamping Force 24 - 56kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives T1510N16TOF Heatsink Heatsink Profiles

Read more less

Infineon T1258N04TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T1258N04TOF Vrrm 400V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 1258 Amp Package Size ø58 x 14mm Itsm 23 kA VF(to) 1V Tj(max) 125°C rF 0.1mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.033°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 160g Clamping Force 12 - 24kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Thyristor Diode Module, 95 Amp, 800V, 20mm package

Read more less

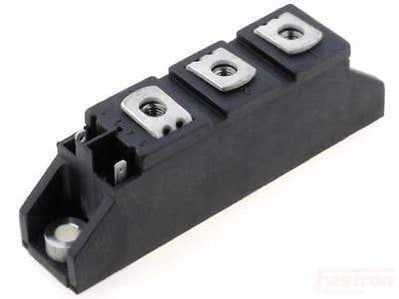

Thyristor Diode Module, 44 Amp, 1400V, 20mm package

Read more less

Thyristor Module, 95 Amp, 1400V, 20mm package

Read more less

Dual Thyristor Module, 100 Amp, 1400V, 22mm Package Name Brand replacement to Vishay VSKT105/14 , Obsolete.

Read more less

Thyristor Diode Module, 56 Amp, 1400V, 22mm Package Name Brand replacement to VSKH56/14 , Obsolete.

Read more less

Infineon D798N16T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 48/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D798N16T Vrrm 1600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 800 Amp Package Size ø48 x 14mm Itsm 14.8 kA VF(to) 0.81V Tj(max) 180°C rF 0.51mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.046°C/W R th(c-h) (double sided cooled) 0.0075°C/W Weight 110g Clamping Force 6 - 15kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives D820N20T Heatsink Heatsink Profiles

Read more less
