Mitsubishi CM300HA-12H Single IGBT 300 Amp, 1200V, 62mm Base Width Specification Schurter Part Number CM300HA-12H Configuration Single Insulated IGBT Nominal Voltage 1200V Collector Current (Ic) 300 Amp Collector Current (Tj < 150 Deg C) 600 Amp Isolation 2500VAC Dimensions 62 x 107 x 36mm Mounting Style Panel Mount Operating Temperature Range (Tj Max) -40°C / 150°C Maximum Collector Dissipation 2100W Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

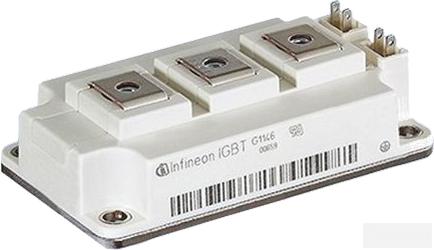

Infineon/Siemens BSM400GB60DN2 IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon/Siemens Part Number BSM400GB60DN2 Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 60 Deg C 400 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.9 - 2.4V Tj(max) 150°C Td(on) @ 25 Deg C 0.2uS Td(off) @ 25 Deg C 0.68uS I(ces) @ 25 Deg C 5mA Rcc N/A Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.09°C/W R th(c-h) N/A Weight 500g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative

Read more less

Crydom D2475-10, Solid State Relay, Single Phase 3-32VDC Control, 75A, 24-280VAC Load, Random Crossing Features • Ratings from 25A to 125 Amp @ 24-280 VAC • SCR output for heavy industrial loads • Zero voltage or instantaneous turn-on outputs • UL/CSA/VDE Approved, CE Compliant to EN60950-1 • Improved SEMS screw and washer • Redesigned housing with anti-rotation barriers • AC & DC control types • Direct bond copper substrate • EMC compliant to Level 3 • Direct power lead frame • Epoxy free design Spec Crydom Part Number D2475-10 Switching Type Random Crossing ROHS Yes (Details) Control Voltage 3-32VDC Load Current 40 Amp (rms) Surge Capability 954 Amp (peak) Special Feature None Mounting Style Panel Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet Please note Changes from Gen 3 to Gen 4 (current) package design here Alternatives See HD48125-10 or Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Infineon BSM150GB60DLC IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM150GB60DLC Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 150 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.25 - 1.6V Tj(max) 150°C Td(on) @ 25 Deg C 0.115uS Td(off) @ 25 Deg C 0.200uS I(ces) @ 25 Deg C 4mA Rcc 1.0mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.4°C/W R th(c-h) 0.02°C/W Weight 180g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative

Read more less

Infineon TT270N16AOF Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT270N16AOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 330 Amp Package Size W:50mm L:115mm D:52mm Itsm 10.05 kA VF(to) 0.8V Tj(max) 125°C rF 0.58mΩ I(gt) @ 25 Deg C 250mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives , Obsolete, See MCC312-16io1 or TT330N16AOF

Read more less

Infineon T879N16TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T879N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 879 Amp Package Size ø58 x 14mm Itsm 17.5 kA VF(to) 0.85V Tj(max) 125°C rF 0.27mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.032°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 160g Clamping Force 10.5 - 21kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. See T880N16TOF for replacement Heatsink Heatsink Profiles

Read more less

Infineon T828N04TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 48/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T828N04TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 828 Amp Package Size ø48 x 14mm Itsm 13.5 kA VF(to) 1V Tj(max) 125°C rF 0.23mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.045°C/W R th(c-h) (double sided cooled) 0.01°C/W Weight 110g Clamping Force 5.5 - 8kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives T1410N04TOF T880N16TOF Heatsink Heatsink Profiles

Read more less

Infineon T589N16TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T589N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 590 Amp Package Size ø58 x 14mm Itsm 9.4 kA VF(to) 0.8V Tj(max) 125°C rF 0.5mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.045°C/W R th(c-h) (double sided cooled) 0.007°C/W Weight 300g Clamping Force 6 - 12kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete, See T590N16TOF replacement Heatsink Heatsink Profiles

Read more less

Infineon T588N16TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 48/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T588N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 588 Amp Package Size ø48 x 14mm Itsm 9.4 kA VF(to) .8V Tj(max) 125°C rF 0.5mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.045°C/W R th(c-h) (double sided cooled) 0.007°C/W Weight 110g Clamping Force 6 - 12kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives T590N16TOF Heatsink Heatsink Profiles
