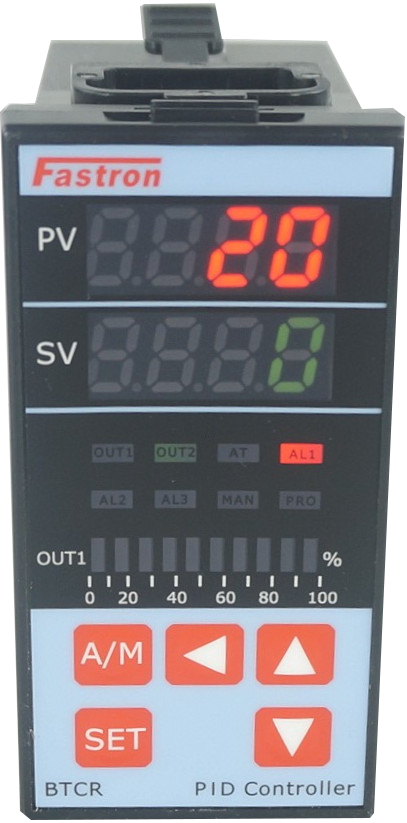

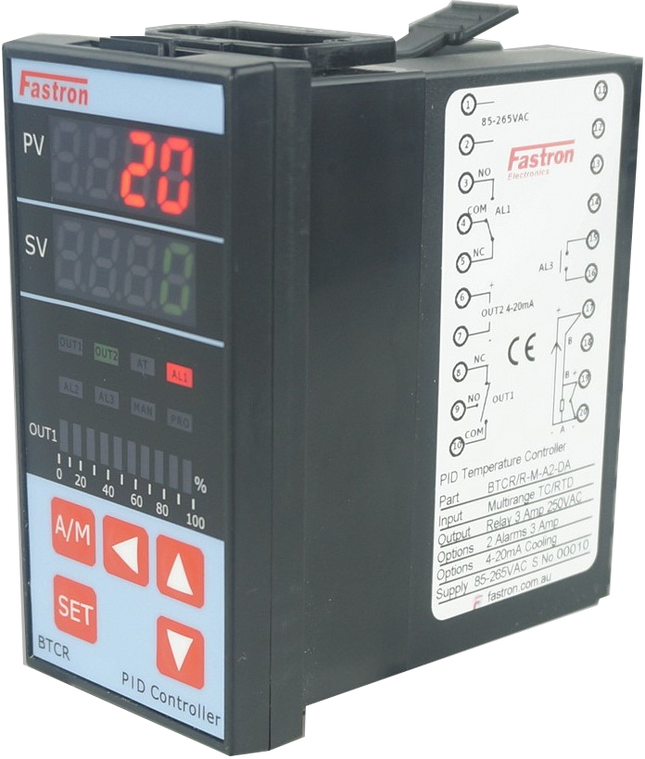

Fastron Electronics BTCR/A-M-A3-EI, PID Controller 48x96mm, 85-265VAC, 4-20mA output 3 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/A-M-A3-EI Control Output 4-20mA Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd and 3rd Alarm Option 2 Event Input (2 x SV) Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCR/A-M-A2, PID Controller 48x96mm, 85-265VAC, 4-20mA output 2 Alarms, RS485 Comms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/A-M-A2 Control Output 4-20mA Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd Alarm Option 2 None Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Shinko BCR2R1016 Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number BCR2R1000 Control Output SSR 12VDC +/-15%, 40mA with (short circuit protected) Input Multirange (refer to datasheet) Option 1 2nd Alarm Relay Option 2 RS485 Comms Mounting Style 48 x 96mm Panel Mount Load Voltage Range 24VAC/DC Termination Style Screw Weight 170g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet BC Series Brochure BC Series User Manual BC Series RS485 Comms Manual Shinko Product Guide Fine Tuning Adjustments

Read more less

Shinko BCR2A1009 Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number BCR2A1009 Control Output 4-20mA Input Multirange (refer to datasheet) Option 1 None Option 2 Event Input Mounting Style 48 x 96mm Panel Mount Load Voltage Range 24VAC/DC Termination Style Screw Weight 170g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet BC Series Brochure BC Series User Manual BC Series RS485 Comms Manual Shinko Product Guide Fine Tuning Adjustments

Read more less

Shinko ACR13AR/M EA1 Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number ACR13AR/M EA1 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange (refer to datasheet) Alarm 2 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 External Setting Input (4 - 20mA) Mounting Style 48 x 96mm Panel Mount Supply Voltage 100 - 240VAC Termination Style Screw Weight 240g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet ACR Series Brochure ACR Series Instruction Manual ACR Series RS485 Comms Instruction Manual Delivery 2-3 weeks delivery if not in stock

Read more less

Shinko ACR13AA/M TA1 Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number ACR13AA/M TA1 Control Output 4 - 20mA Input Multirange (refer to datasheet) Alarm 2 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 Retransmission (4 - 20mA) Mounting Style 48 x 96mm Panel Mount Supply Voltage 100 - 240VAC Termination Style Screw Weight 240g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet ACR Series Brochure ACR Series Instruction Manual ACR Series RS485 Comms Instruction Manual Delivery 2-3 weeks delivery if not in stock

Read more less

Shinko ACR13AA/M Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number ACR13AA/M Control Output 4 - 20mA Input Multirange (refer to datasheet) Alarm 2 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 None Mounting Style 48 x 96mm Panel Mount Supply Voltage 100 - 240VAC Termination Style Screw Weight 240g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet ACR Series Brochure ACR Series Instruction Manual ACR Series RS485 Comms Instruction Manual Delivery 2-3 weeks delivery if not in stock

Read more less
