Fastron FC5-H-1A-2-G-4 PID Controller, 24VDC with 2 x Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-1A-2-G-4 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 x Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-H-W-2-G-4, 24VDC PID Controller with 2 x Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-W-2-G-4 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/12VDC @ 20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 x Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Approvals CE   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

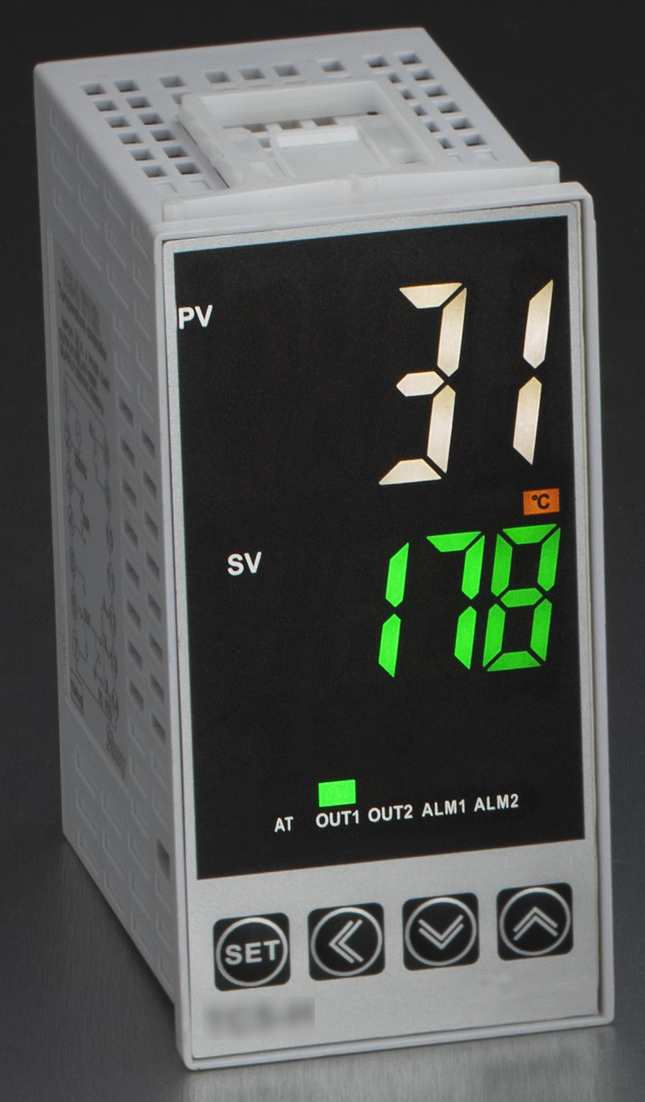

Fastron FC5-H-W-2-G-2, 100-240VAC PID Controller with 2 Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-W-2-G-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/12VDC @ 20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Approvals CE   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-H-1U-2-G-2 PID Controller, 100-240VAC with 2 Relay Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm, 0-10V Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-1U-2-G-2 Control Output 0-10V Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron TC5-H-W-2-G-2, 100-240VAC PID Controller with 2 3 Amp Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Now available will full Multirange input (K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,4-20mA Output) Specification Fastron Part Number TC5-H-W-2-G-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/12VDC @ 20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 3 Amp Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Approvals CE   Datasheet TC5 Datasheet and User Manual

Read more less

Fastron TC5-H-W-2-T/R-2, 100-240VAC PID Controller with 2 3 Amp Relay Alarms, K,E,J Thermocouple, Pt100 or Cu20, Optional Linear Current/Voltage, 48x96mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Now available will full Multirange input (K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,4-20mA Output) Specification Fastron Part Number TC5-H-W-2-T/R-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/12VDC @ 20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 3 Amp Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Approvals CE   Datasheet TC5 Datasheet and User Manual

Read more less

Fastron TC5-H-1A-2-T/R-2 PID Controller, 100-240VAC with 2 3 Amp Relay Alarms, K,E,J Thermocouple, Pt100 or Cu20, Optional Linear Current/Voltage, 48x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Now available will full Multirange input (K,E,J Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,4-20mA Output) Specification Fastron Part Number TC5-H-1A-2-T/R-2 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 3 Amp Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Datasheet TC5 Datasheet and User Manual

Read more less

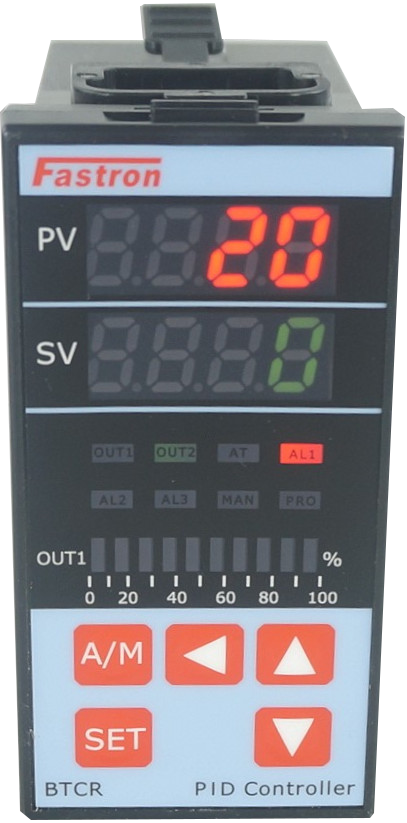

Fastron Electronics BTCR/S-M-A2, PID Controller 48x96mm, 85-265VAC, SSR output 2 Alarms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/S-M-A2 Control Output SSR 24VDC @ 30mA Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd Alarm Option 2 None Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCR/R-M-A3-EI, PID Controller 48x96mm, 85-265VAC, Relay Output 2 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/R-M-A3-EI Control Output Relay 3 Amp (Resistive) Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd and 3rd Alarm Option 2 Event Input (2 x SV) Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

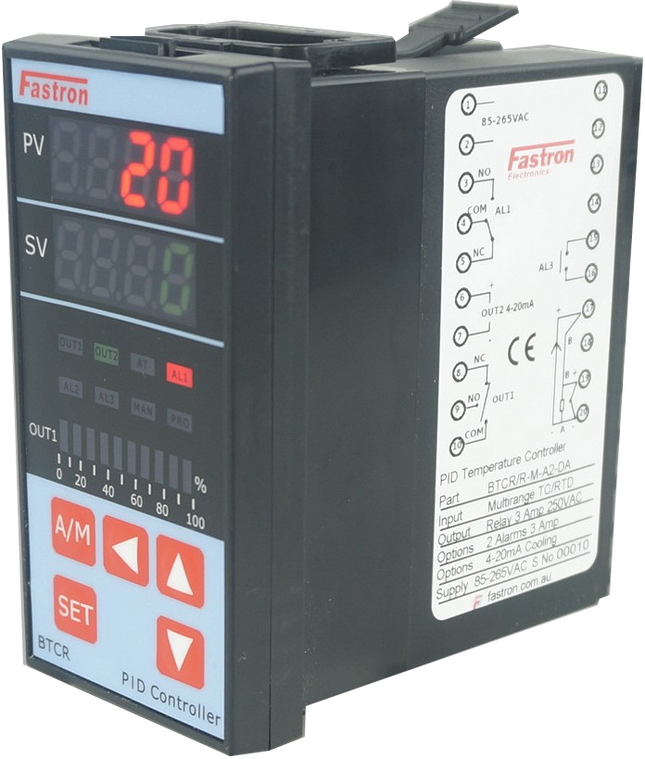

Fastron Electronics BTCR/R-M-A2-DS, PID Controller 48x96mm, 15-50VDC, Relay Output 2 Alarms, SSR Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/R-M-A2-DS Control Output Relay 3 Amp (Resistive) Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd Alarm Option 2 SSR Cooling Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCR/R-M-A2-DR, PID Controller 48x96mm, 85-265VAC, Relay Output, Relay Cooling Output, 2 Alarms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/R-M-A2-DR Control Output Relay 3 Amp (Resistive) Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd Alarm Option 2 Relay Cooling Mounting Style 48 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCR/R-M1-A2-DS-C5, PID Controller 48x96mm, 15-50VDC, Relay Output 2 Alarms, SSR Cooling, RS485 Modbus Comms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/R-M1-A2-DS-C5 Control Output Relay 3 Amp (Resistive) Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd Alarm Option 2 RS485 Modbus RTU, SSR Cooling Mounting Style 48 x 96mm Panel Mount Load Voltage Range 15-50VDC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less
