Hanyoung Nux UP12RD-4PA-C, Inductive Proximity Sensor M12 Cylindrical Unshielded, 4mm Sensing Distance (0-3.2mm Set), 12-24VDC PNP Output, Normally Open NO, Connector Type 400HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP12RD-4PA-C Sensor Type Inductive Proximity Sensor M12 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 4mm (0-3.2mm Set) Frequency Response 400Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 80g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

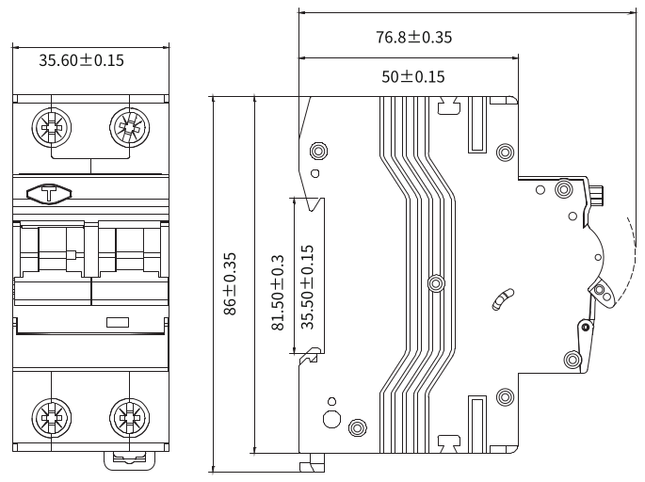

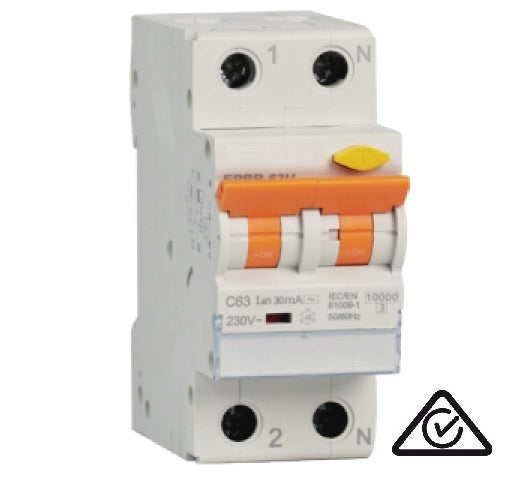

TPR-10kA-25/C/A/30mA, 2 Pole RCBO, C Curve 25 Amp, 30mA Trip, 240VAC, Type A, IP20 (IP40 Installed) AS/NZS 61009-1, RCM (TUV-026319-EA) Residual Current Circuit Breakers Combo's are used for RCD and Overcurrent protection against indirect contact, fire protection and direct contact Features : 30mA Detection AC & DC Sensing (Type A) 2 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Overload & Short Circuit Protection Residual Current Fault Detection Protects Person from Electrocution Standards : IP20 (IP40 Installed) IEC 61009-1 Din Rail EN 60715 CB,CE TUV, RCM Specification TRENT Part Number TPR-10kA-25/C/A/30mA Functions 2 Pole RCD 30mA and Overcurrent Disconnect (Circuit Breaker) Nominal Voltage 230VAC @ 50Hz Electrical Endurance 4000 Operations Mechanical Endurance 10000 Operations Nominal Current Range 25 Amp RMS Tripping Characteristic C Curve Trip Delay Time (In x 1) 300ms Trip Delay Time (In x 5) 40ms Operating Temperature -25 to 40 Deg C Rated Impulse Voltage 4kV Surge Current N/A Breaking Capacity 10kA Approvals CE, CB, RCM (TUV-026319-EA) Standards IP20 (IP40 Installed) IEC 61009-1 ;AS/NZS 61009-1 Weight 230g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

FN600-5T0075G/0110PB, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 11kW 17 Amp (Normal Duty)/25 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0075G/0110PB Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 17 Amp(Normal Duty) / 25 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 240x140x175mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 4.5kg Factory Pack Qty 1 Datasheet User Manual

Read more less

Kavlico (Sensata) 112CP3-9 Series Combined Pressure & Temperature Sensor Features Temperature and Pressure Measurement in one Package Fast In Stream Temperature Measurement Precise Superheat Measurement Pressure Ranges 0-150psi through 0-650psi Excellent Linearity Wide Operating Temperature -55°C to 125°C Applications Air Conditioning and Refridgeration Alternative Energy Management Engine Controls and Monitors Compressors and Pumps   Specification Kavlico (Sensata) Part Number 112CP3-9 Pressure Range 9-510psi Thermistor Resistance Range 10KΩ Supply Voltage (Vcc) 4.5 to 5.5 Vdc Output Voltage 0.5 to 4.5 Vdc typical Supply Current 15mA max Output Current 8mA Output Load Range 10KΩ to 50KΩ Response Time 10mS Overvoltage Protection 16 Vdc Reverse Voltage -14 Vdc Pressure Connection M12 x 1.25 - 6g plated steel Internal Seal Neoprene with no thread Oring Life Cycle 1 Million Cycles Termination Style 4 Pin AMP Micro-Quadlok System Connector Unit Weight 50g Factory Pack Qty 100   Datasheet Product Datasheet

Read more less

FN600-5T0110G/0150PB, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 11/15kW 25 Amp (Normal Duty)/33 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0075G/0110PB Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 25 Amp(Normal Duty) / 15 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 304x180x189mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 4.5kg Factory Pack Qty 1 Datasheet User Manual

Read more less

Hanyoung Nux UP12RD-4NA-C, Inductive Proximity Sensor M12 Cylindrical Unshielded, 4mm Sensing Distance (0-3.2mm Set), 12-24VDC NPN Output, Normally Open NO, Connector TypeUP12RD-4NA-C, Inductive Proximity Sensor M12 Cylindrical Unshielded, 4mm Sensing Distance (0-3.2mm Set), 12-24VDC NPN Output, Normally Open NO, Connector Type 400HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part NumberFastron NArt Number UP12RD-4NA-C Sensor Type Inductive Proximity Sensor M12 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 4mm (0-3.2mm Set) Frequency Response 400Hz Output Type 12-24VDC NPN Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, NPN:Navy Protection Class IP67 Approvals CE Weight 80g Factory NAck Qty 1 Datasheet Product Datasheet ??

Read more less

Hanyoung Nux UP30RD-15NA-C, Inductive Proximity Sensor M30 Cylindrical Unshielded, 15mm Sensing Distance (0-12mm Set), 12-24VDC NPN Output, Normally Open NO, Connector TypeUP30RD-15NA-C, Inductive Proximity Sensor M30 Cylindrical Unshielded, 15mm Sensing Distance (0-12mm Set), 12-24VDC NPN Output, Normally Open NO, Connector Type 100HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part NumberFastron NArt Number UP18RD-8NA-C Sensor Type Inductive Proximity Sensor M30 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 4mm (0-3.2mm Set) Frequency Response 100Hz Output Type 12-24VDC NPN Normally Open Sensor Thread Size M18 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, NPN:Navy Protection Class IP67 Approvals CE Weight 130g Factory NAck Qty 1 Datasheet Product Datasheet ??

Read more less

Rish Xmer 74-20 (45) 150/5 Class 0.2S, 2.5VA, 21mm Aperture Features High Accuracy Class 0.2S Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish Xmer 74-20 (45) 150/5 Class 0.2S Technology AC Current Transformer Ratio 800/5 Aperture Size 21x11mm VA Rating 2.5VA Accuracy Class Class 0.2S Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

LEM FRS 2500-SUI, O/L Coreless Current Transducer, 2500 Amp, +12V...24VDC Supply, 111.4 x 18.7 Square Aperture, 4-20mA Unipolar Output Features Bandwidth DC to 1000kHz Open loop transducer using Coreless Hall effect Technology Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses Low power consumption Applications Wind Turbines Electrolyser AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number FRS 2500-SUI Technology Open Loop Coreless Hall Effect Aperture 111.4 x 18.7mm Square ROHS Yes Supply Voltage +12...24VDC, Isolated Load Current (RMS + DC) 2500 Amp Measurement Range +/-7500 Amp Overload Rating N/A Output 4-20mA Unipolar Isolation 5.3 kV Bandwidth DC-1000 kHz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 85°C Accuracy 1% Termination Style Molex 5045-04A Unit Weight 1500g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Hanyoung Nux UP18RD-8PA-C, Inductive Proximity Sensor M18 Cylindrical Unshielded, 8mm Sensing Distance (0-6.4mm Set), 12-24VDC PNP Output, Normally Open NO, Connector Type 200HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP18RD-8PA-C Sensor Type Inductive Proximity Sensor M18 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 4mm (0-3.2mm Set) Frequency Response 200Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M18 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 130g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Crydom HS211A + A2450EG, Panel Mount Solid State Relay, 24VAC Control Input, LED Status, 24-280VAC Output, 25 Amps Features Ratings from 25A to 125 Amp @24-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Panel Mount only Spec Part Number HS211A + A2450EG Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 24VAC Load Current 22 Amp (rms) @ 40 Deg C Surge Capability 597 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 24-280VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS211A Series 1 AC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Schurter FMAC-0932-2510, 1 Stage EMC (RFI) Line Filter for 3-Phase 3 Wire Solar or Industrial Systems, 25 Amp, 480VAC Features 3 phase line filter with standard attenuation Available as high voltage filter (up to 520 VAC) Applications Voltage rating 480 and 520 VAC for world wide acceptance Protection against interference voltage from the mains For photovoltaic systems and industrial applications Suitable for use in equipment according to IEC/UL 60950 Specification Schurter Part Number FMAC-0932-2510 Rated Voltage 480V Rated Current 25A Filter Stages 1 Stage (3 Phase) Operating Temperature -25°C to 85°C Connection 3 Wire + Earth Filter Type Excellent Attenuation Leakage Current 5mA Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 4kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet
