Fastron FRTD-PT100-50, Pt100 Air Temperature Sensor, 50mm shaft length, 77 x 77 x 55mm Body 4-20mA Output 2 Wire Temp Measurement for 0 to 100 Deg C Max 190 x 18mm with 1M Cable 20 Second Response Time 12-30VDC Supply 150mA max Pt100 Temp Sensing Elements Specification Fastron Part Number FRTD-PT100-50 Sensor Type RTD (Temperature) & Thin Film Capacitor (Humidity) No of Wires 3 Shaft Length 190mm Shaft Thickness 18mm Approvals CE, ROHS Cable length 1 Meter Temperature Range 0 to 100 Deg C Mounting Style Through Hole Weight 45g Factory Pack Qty 1 Datasheet Datasheet Installation Guide Wiring Diagram

Read more less

Current Transducer, AT-AA9-D-4, AC Current Transducer, Average RMS, 5 Amps, 24VDC Aux, 0-10V output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA8-D-4 Control Output 0-10V Average RMS Input 0-5 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 24VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Current Transducer, AT-AA9-D-1, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA9-D-1 Control Output 4-20mA Average RMS Input 0-10 Amp rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22 - 60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Current Transducer, AT-AA9-D-4, AC Current Transducer, Average RMS, 10 Amps, 22-60VAC/DC Aux, 0-10V output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA9-D-4 Control Output 0-10V Average RMS Input 0-10 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22 - 60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Electronicon E50.N11-903NT0 620uF 2kVDC, DC Link, 40Amp, H:110mm x D:85mm, M12 Mounting Stud, M6 Terminals Characteristics and utility 620uF, 2000VDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E50.N11-903NT0 90uF 2kVDC Technology DC Link Dimensions H:100mm x D:85mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 2kVDC Inom 40 Amps Capacitance 90uF Tolerance On Capacitance +/- 10% Lifetime 200,000 Hours Termination Style M6 Screw Inserts Unit Weight 1kg Factory Pack Quantity 2   Datasheet Product Catalogue

Read more less

VA8022, Wind Speed (Vane Anemometer) & Temperature & Wind Volume Tester. Range 0.4-20m/s, 80-4000 fpm, Temperature -10 to 50 Deg C, Wind Volume 0-9999 m3/s Accuracy +/-3% of reading M3/s, Resolution 1m3/s Features Portable /Battery Powered 3 x AAA Internal Sensor Range 0.4-20m/s, 80-4000 fpm +/-2% + 0.3m/s (+/- 2% + 60fpm). 0.1m/s Resolution Temperature -10 to 50 Deg C Accuracy +/-1 Deg C. Resolution 0.1 Deg C 0.5 Second Sampling Rate Wind Volume 0-9999 m3/s Accuracy +/-3% of reading M3/s Specification   Datasheet Datasheet

Read more less

VAT810, CO2 Indoor Air Quality Monitor. Desktop Mount, 5VDC Supply (1.5W). Temperature Measurement Range -20 to 50 Deg C Accuracy +/-0.5 Deg C. Humidity 0-100% +/-3%RH, CO2 300-3000ppm +/-(50ppm + 3%). With Sound and Light Alarm, Modbus RS485 Features Desktop Mount 5VDC Supply (1.5W) Temperature Measurement Range -20 to 50 Deg C Accuracy +/-0.5 Deg C Humidity 0-100% +/-3%RH CO2 300-3000ppm +/-(50ppm + 3%) With Sound and Light Alarm Capacitive Humidity Sensor NDIR CO2 sensor IP40 125x85x30mm Touch Key Operation Specification   Datasheet Datasheet

Read more less

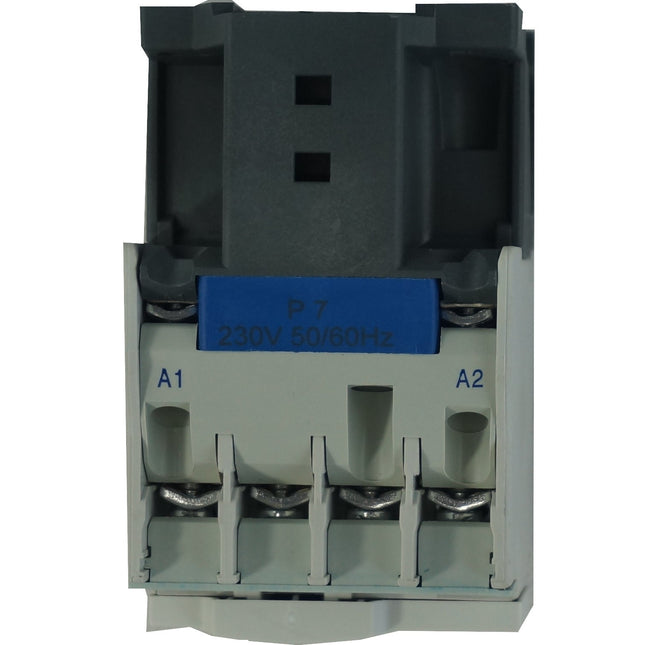

Fastron Electronics FGC1-D3210-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole 3 x NO + 1NO, Nominal Current = 32 Amps(AC-3) @ 240/400/500/690V Contactors are designed to meet the requirements of heavy Duty applications. Contactors may be fitted with auxiliary contacts. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp CE, CB Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Fastron Electronics Part Number FGC1-D3210-230VAC Functions 3 Pole + 1NO Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 32 Amp Continuous @ 55 Deg C Main Contacts 3 x NO Auxiliary Contacts  1 x NO Trip Delay Time 2-10ms Electrical Life 200,000 Ops Operating Temperature -25 to 55 Deg C Mechanical Operations 10.000,000 Ops Control Voltage 240VAC Power Dissipation 2.3W Approvals UL, CSA Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 200g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

LEM CD 100-S/SP5, O/L Hall Effect Current Sensor, 2 x 1000 Amp, +/-5V Output Features Bandwidth DC to 5kHz Closed loop transducer using Hall effect (Compensated) Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Single or 3 Phase Inverter Propulsion and Breaking Chopper Propulsion Converter Auxiliary Converter Railway Security System Specification LEM Part Number CD100-S/SP5 Technology Closed Loop Hall Effect Aperture ø40mm ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 2 x1000 Amp Output +/-5 V Isolation 6 kV Bandwidth DC-5 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 80°C Accuracy 2.5% Unit Weight 1kg Factory Pack Quantity 10   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Fastron FPC1-SPACER, Module Spacer for DIN Rail Mount Modular Contactors FPC1 Series  Features UL94V0 IP20 Specification Fastron Part Number FPC1-SPACER Switching Type Any Approvals CE Coil Voltage N/A Load Rating N/A Special Feature Module Spacer Mounting Style DIN Rail Mount Load Voltage Range N/A Isolation 4kV Unit Weight 40g Factory Pack Qty 480   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

Electronicon 275.166-804800, 12.5kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 95 x 230(+32 +5/-2)mm Gas Filled, 3 x 48.1uF Characteristics and utility 12.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.166-804800 Technology Gas Filled, Low Loss, Self Healing Dimensions 95 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 12.5 Kvar Capacitance 3 x 48.1uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 13.7 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.6kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Electronicon 275.546-703800/221K02, 10kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 75 x 230(+32 +5/-2)mm Gas Filled, 3 x 38.5uF Characteristics and utility 10kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.546-703800/221K02 Technology Gas Filled, Low Loss, Self Healing Dimensions 75 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 10 Kvar Capacitance 3 x 38.5uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 11 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.6kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog
