Fastron FPC1-SPACER, Module Spacer for DIN Rail Mount Modular Contactors FPC1 Series  Features UL94V0 IP20 Specification Fastron Part Number FPC1-SPACER Switching Type Any Approvals CE Coil Voltage N/A Load Rating N/A Special Feature Module Spacer Mounting Style DIN Rail Mount Load Voltage Range N/A Isolation 4kV Unit Weight 40g Factory Pack Qty 480   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

HF121-12/0.4-16.7-7%K, 16.7kVar 400VAC 7% Detuned Reactor for Power Factor Correction Capacitor Banks Specification Technical Features HF121-12/0.4-16.7-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH @ 400VAC) 3.678mH Inductance (mH @ 525VAC) Nominal Power 16.7kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 21kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Electronicon 275.166-804800, 12.5kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 95 x 230(+32 +5/-2)mm Gas Filled, 3 x 48.1uF Characteristics and utility 12.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.166-804800 Technology Gas Filled, Low Loss, Self Healing Dimensions 95 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 12.5 Kvar Capacitance 3 x 48.1uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 13.7 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.6kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Electronicon 275.266-607700/221K02, 20kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 95 x 230(+32 +5/-2)mm Gas Filled, 3 x 77uF, Internal Discharge Resistors Included, Single Sided Terminals Characteristics and utility 20kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.266-607700 Technology Gas Filled, Low Loss, Self Healing Dimensions 75 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 20 Kvar Capacitance 3 x 77uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 22 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.5kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

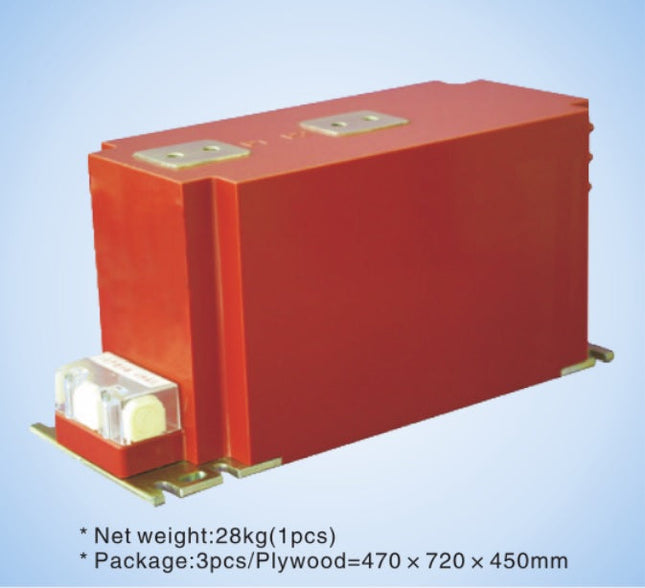

Fastron Electronics LZZBJ6-12/185h/2 100/1A 5P20 10VA 6.6kV, HV Protection Class Current Transformer Features Panel Mount 1 Amp Output Self Powered Rated System Voltage 6.6kV Applications Indoor Substations Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number LZZBJ6-12/185h/2 100/1A 5P20 10VA 6.6kV Technology HV AC Current Transformer Ratio 100/1 Amp Aperture Size N/A VA Rating 10VA Accuracy Class Class 5P20 Output 1 Amp (+20%) Isolation 28kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 100Amp x 1.2 Termination Style M12 Inserts Unit Weight 28kg Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

Fastron Electronics LZZBJ6-12/185h/2 500/1A 5P20 10VA 6.6kV, HV Protection Class Current Transformer Features Panel Mount 1 Amp Output Self Powered Rated System Voltage 6.6kV Applications Indoor Substations Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number LZZBJ6-12/185h/2 500/1A 5P20 10VA 6.6kV Technology HV AC Current Transformer Ratio 500/1 Amp Aperture Size N/A VA Rating 10VA Accuracy Class Class 5P20 Output 1 Amp (+20%) Isolation 28kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 500Amp x 1.2 Termination Style M12 Inserts Unit Weight 28kg Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

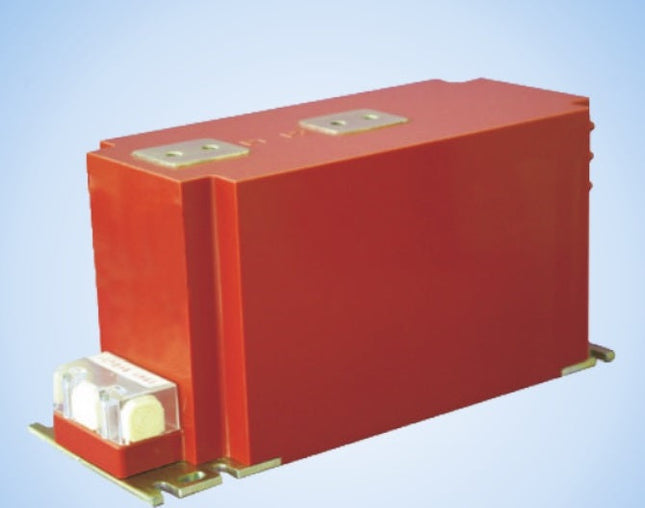

Fastron Electronics LZZBJ6-12/185h/2 800/1A 5P20 10VA 6.6kV, HV Protection Class Current Transformer Features Panel Mount 1 Amp Output Self Powered Rated System Voltage 6.6kV Applications Indoor Substations Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number LZZBJ6-12/185h/2 800/1A 5P20 10VA 6.6kV Technology HV AC Current Transformer Ratio 800/1 Amp Aperture Size N/A VA Rating 10VA Accuracy Class Class 5P20 Output 1 Amp (+20%) Isolation 28kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 800Amp x 1.2 Termination Style M12 Inserts Unit Weight 28kg Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

DR6760D75P, Solid State Relay, and Heatsink Assembly, 3 Phase 4-32VDC Control, 62.5 Amp per phase @ 40 Deg C, 48-600VAC Load, LED Status Indicator, Overvoltage Protection Features Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number DR6760D75P Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 75 Amp (rms) per Phase @ 30 DeG C Surge Capability 1290 Amp (peak) Special Feature LED Status Indicator, Overvoltage Protection Mounting Style Din Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 961g Factory Pack Qty 10   Datasheet DR6760D75P 3 Phase SSR and Heatsink Mounted App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

DR6760D60P, Solid State Relay, and Heatsink Assembly, 3 Phase 4-32VDC Control, 50 Amp per phase @ 40 Deg C, 48-600VAC Load, LED Status Indicator, Overvoltage Protection Features Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number DR6760D60P Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 60 Amp (rms) per Phase @ 30 DeG C Surge Capability 1290 Amp (peak) Special Feature LED Status Indicator, Overvoltage Protection Mounting Style Din Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 961g Factory Pack Qty 10   Datasheet DR6760D60P 3 Phase SSR and Heatsink Mounted Alternative in stock DR676075P App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

DR6760DR75P, Solid State Relay, and Heatsink Assembly, 3 Phase 4-32VDC Control, Random Crossing, 75 Amp per phase @ 40 Deg C, 48-600VAC Load, LED Status Indicator, Overvoltage Protection Features Ratings from 60A to 75 Amp @ 70-530 VAC Motor Control SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number DR6760DR75P Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 75 Amp (rms) per Phase @ 30 DeG C Surge Capability 1290 Amp (peak) Special Feature LED Status Indicator, Overvoltage Protection Mounting Style Din Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 961g Factory Pack Qty 10   Datasheet DR6760D75P 3 Phase SSR and Heatsink Mounted   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Fastron Electronics SCT-Y36-400A-100mV, 400A/100mV Measurement, Class 1 Split Core CT's, 36mm Aperture, with HY2.0 Connector for Eastron Meter EasyClick System Features Quick Release Split Core System Cable Mount 100mVmp Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads with HY-2.0 Connector Applications Eastron Modular Metering Equipment Energy Monitoring Load Balancing Power Quality Measurements   Specification Fastron Part Number SCT-Y36-400A-100mV Technology Split Core AC Current Transformer Ratio 400/100mV Aperture Size ø 36 mm VA Rating 1VA Accuracy Class Class 1 Output 100mV (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (mVx) 400Amp x 1.2 Termination Style 0.9M Flying leads with HY-2.0 Connector Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide CRJ-31 Connector User Guide

Read more less

Fastron Electronics SCT-Y36-500A-100mV, 500A/100mV Measurement, Class 1 Split Core CT's, 36mm Aperture, with HY2.0 Connector for Eastron Meter EasyClick System Features Quick Release Split Core System Cable Mount 100mVmp Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads with HY-2.0 Connector Applications Eastron Modular Metering Equipment Energy Monitoring Load Balancing Power Quality Measurements   Specification Fastron Part Number SCT-Y36-500A-100mV Technology Split Core AC Current Transformer Ratio 500/100mV Aperture Size ø 36 mm VA Rating 1VA Accuracy Class Class 1 Output 100mV (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (mVx) 500Amp x 1.2 Termination Style 0.9M Flying leads with HY-2.0 Connector Unit Weight 170g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide CRJ-31 Connector User Guide
