VA1021B, Liquid PH Tester & Temperature Tester Portable with External BNC Connected Sensor. Range 0-14PH, 0-50 Deg C Accuracy 0.02PH/0.5 Deg C, WITH BLUETOOTH AND APP Features Portable /Battery Powered 3 x AAA (500 Hours) External Sensor (BNC) Range 0-14PH, 0-50 Deg C Accuracy 0.02PH/0.5 Deg C Bluetooth Comms Free App Specification   Datasheet Datasheet

Read more less

VA8022, Wind Speed (Vane Anemometer) & Temperature & Wind Volume Tester. Range 0.4-20m/s, 80-4000 fpm, Temperature -10 to 50 Deg C, Wind Volume 0-9999 m3/s Accuracy +/-3% of reading M3/s, Resolution 1m3/s Features Portable /Battery Powered 3 x AAA Internal Sensor Range 0.4-20m/s, 80-4000 fpm +/-2% + 0.3m/s (+/- 2% + 60fpm). 0.1m/s Resolution Temperature -10 to 50 Deg C Accuracy +/-1 Deg C. Resolution 0.1 Deg C 0.5 Second Sampling Rate Wind Volume 0-9999 m3/s Accuracy +/-3% of reading M3/s Specification   Datasheet Datasheet

Read more less

VAT810, CO2 Indoor Air Quality Monitor. Desktop Mount, 5VDC Supply (1.5W). Temperature Measurement Range -20 to 50 Deg C Accuracy +/-0.5 Deg C. Humidity 0-100% +/-3%RH, CO2 300-3000ppm +/-(50ppm + 3%). With Sound and Light Alarm, Modbus RS485 Features Desktop Mount 5VDC Supply (1.5W) Temperature Measurement Range -20 to 50 Deg C Accuracy +/-0.5 Deg C Humidity 0-100% +/-3%RH CO2 300-3000ppm +/-(50ppm + 3%) With Sound and Light Alarm Capacitive Humidity Sensor NDIR CO2 sensor IP40 125x85x30mm Touch Key Operation Specification   Datasheet Datasheet

Read more less

Fastron Electronics FGC1-D3210-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole 3 x NO + 1NO, Nominal Current = 32 Amps(AC-3) @ 240/400/500/690V Contactors are designed to meet the requirements of heavy Duty applications. Contactors may be fitted with auxiliary contacts. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp CE, CB Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Fastron Electronics Part Number FGC1-D3210-230VAC Functions 3 Pole + 1NO Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 32 Amp Continuous @ 55 Deg C Main Contacts 3 x NO Auxiliary Contacts  1 x NO Trip Delay Time 2-10ms Electrical Life 200,000 Ops Operating Temperature -25 to 55 Deg C Mechanical Operations 10.000,000 Ops Control Voltage 240VAC Power Dissipation 2.3W Approvals UL, CSA Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 200g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

LEM CD 100-S/SP5, O/L Hall Effect Current Sensor, 2 x 1000 Amp, +/-5V Output Features Bandwidth DC to 5kHz Closed loop transducer using Hall effect (Compensated) Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Single or 3 Phase Inverter Propulsion and Breaking Chopper Propulsion Converter Auxiliary Converter Railway Security System Specification LEM Part Number CD100-S/SP5 Technology Closed Loop Hall Effect Aperture ø40mm ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 2 x1000 Amp Output +/-5 V Isolation 6 kV Bandwidth DC-5 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 80°C Accuracy 2.5% Unit Weight 1kg Factory Pack Quantity 10   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

HF121-12/0.4-16.7-7%K, 16.7kVar 400VAC 7% Detuned Reactor for Power Factor Correction Capacitor Banks Specification Technical Features HF121-12/0.4-16.7-7%K Electrical Voltage 400V/525V Network Frequency 50/60Hz Inductance (mH @ 400VAC) 3.678mH Inductance (mH @ 525VAC) Nominal Power 16.7kvar Value of p% 7% (189Hz) Type of Conductor Aluminium/Copper(optional) Tolerance L 5% Linearity (5% L) 1.8 x In Isolation Voltage kV Maximum Room Temperature -10 to 45 Deg C Internal isolation Class F(155°C), Class H (180°C Optional) Maximum Overload Permanent 1.17 x In Temporary 2 x In Safety Protection Thermostat Opens at 90 °C Degree Protection IP00 Installation Indoor Standards EN-60289, IEC60076 Weight 21kg Datasheet Product Datasheet Installation Guide HF121 Series Installation Guide

Read more less

Electronicon 275.546-703800/221K02, 10kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 75 x 230(+32 +5/-2)mm Gas Filled, 3 x 38.5uF Characteristics and utility 10kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.546-703800/221K02 Technology Gas Filled, Low Loss, Self Healing Dimensions 75 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 10 Kvar Capacitance 3 x 38.5uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 11 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.6kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Electronicon 275.546-604800/221K02, 12.5kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 75 x 230(+32 +5/-2)mm Gas Filled, 3 x 48.1uF, Internal Discharge Resistors Characteristics and utility 12.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.546-604800/221K02 Technology Gas Filled, Low Loss, Self Healing Dimensions 75 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 12.5 Kvar Capacitance 3 x 48.1uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 13.7 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.6kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Electronicon 275.266-607700/221K02, 20kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 95 x 230(+32 +5/-2)mm Gas Filled, 3 x 77uF, Internal Discharge Resistors Included, Single Sided Terminals Characteristics and utility 20kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.266-607700 Technology Gas Filled, Low Loss, Self Healing Dimensions 75 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 20 Kvar Capacitance 3 x 77uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 22 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.5kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Fastron Electronics LZZBJ6-12/185h/2 400/1A 5P20 10VA 6.6kV, HV Protection Class Current Transformer Features Panel Mount 1 Amp Output Self Powered Rated System Voltage 6.6kV Applications Indoor Substations Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number LZZBJ6-12/185h/2 400/1A 5P20 10VA 6.6kV Technology HV AC Current Transformer Ratio 400/1 Amp Aperture Size N/A VA Rating 10VA Accuracy Class Class 5P20 Output 1 Amp (+20%) Isolation 28kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 400Amp x 1.2 Termination Style M12 Inserts Unit Weight 28kg Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

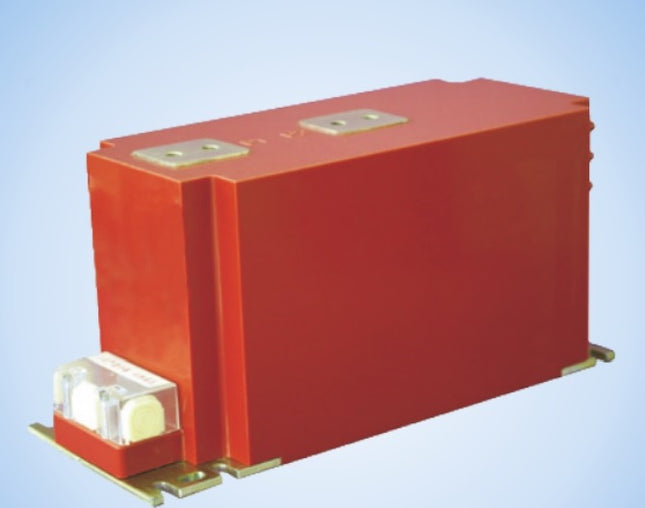

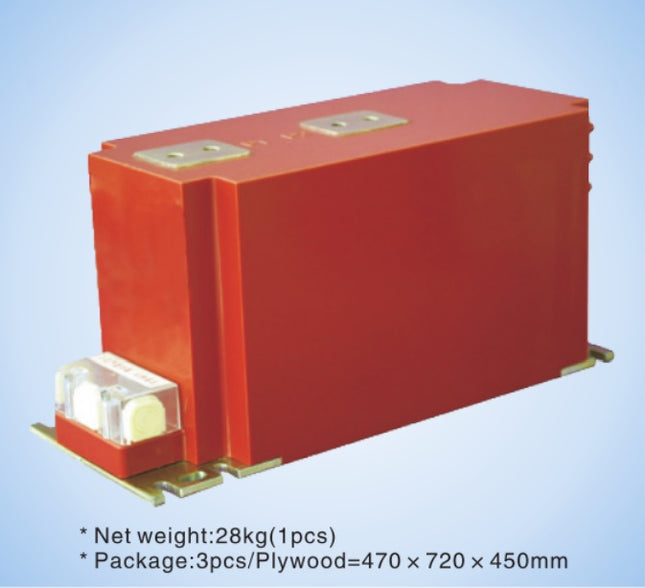

Fastron Electronics LZZBJ6-12/185h/2 200/1A 5P20 10VA 6.6kV, HV Protection Class Current Transformer Features Panel Mount 1 Amp Output Self Powered Rated System Voltage 6.6kV Applications Indoor Substations Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number LZZBJ6-12/185h/2 200/1A 5P20 10VA 6.6kV Technology HV AC Current Transformer Ratio 200/1 Amp Aperture Size N/A VA Rating 10VA Accuracy Class Class 5P20 Output 1 Amp (+20%) Isolation 28kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 200Amp x 1.2 Termination Style M12 Inserts Unit Weight 28kg Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

Trent FGM6DC-2PL-500 350A, 2 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type 20kA 350 Amp, 1000VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : 2 Pole Disconnect 20kA Short Circuit Rating @1000VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-2PL-400 350A Functions 2 Pole DC MCCB Nominal Voltage 1000VDC Nominal Current Range 350 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 20kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 5.7kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less
