FC5-L-1A-1-G-4-C PID Controller, 24VDC with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x96mm,4-20mA Output
Fastron FC5-L-1A-1-G-4-C PID Controller, 24VDC with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Fastron Part Number FC5-L-1A-1-G-4-C Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 96x96mm with SSR/Relay output) Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol
$235.00
$277.30 inclGST -

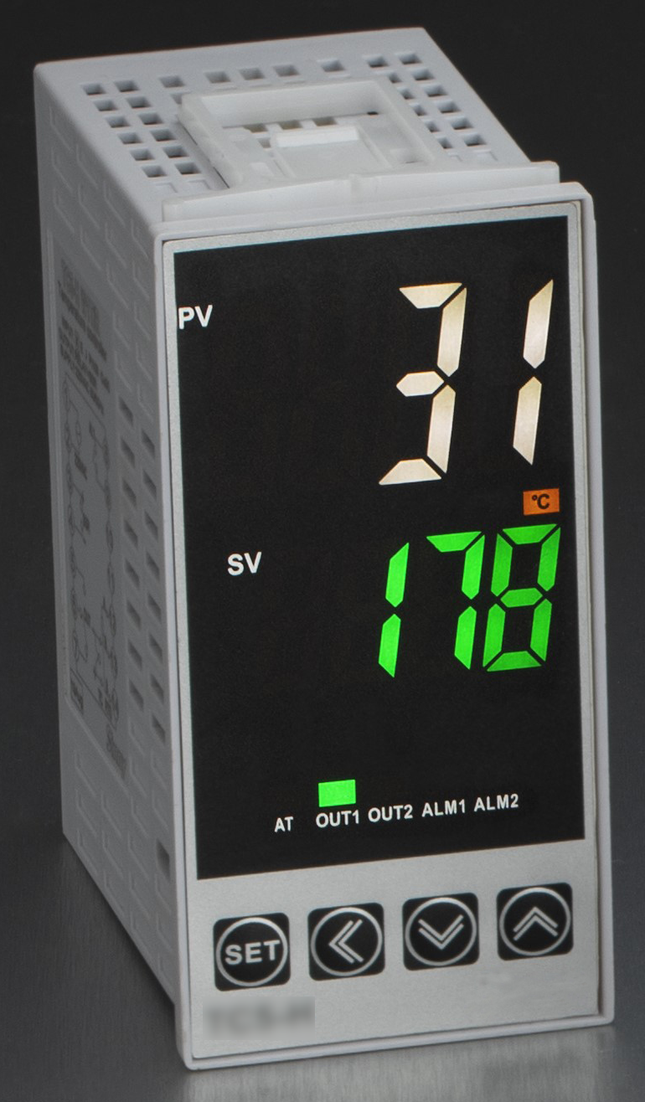

FC5-H-W-1-G-4-C, 24VDC PID Controller with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,Relay + 12VDC Output
Fastron FC5-H-W-1-G-4-C, 24VDC PID Controller with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-W-1-G-4-C Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/12VDC @ 20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Approvals CE Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol
$217.00
$256.06 inclGST -
SCT-F16-100-50mA-2M, 50mA, 100Amp Measurement, Class 1 Split Core Current Transformer, Special model with 2m Cable length
Fastron Electronics SCT-F16-100-50mA-2M, 50mA, 100Amp Measurement, Class 1 Split Core Current Transformer, Special model with 2m Cable length Features Quick Release Split Core System Cable Mount 50 mAmp Output Self Powered Rated System Voltage 0.60/3kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number SCT-F16-100-50mA Technology Split Core AC Current Transformer Ratio 100/50mA Aperture Size ø 15 mm VA Rating N/A Accuracy Class Class 0.5 Output 50 mAmp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 100Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 100g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$58.00
$68.44 inclGST -
XY12038B 24VDC, Cooling Fan, Axial, 24VDC 120x120x38mm, 94CFM, 6 Watt, 2600-3000RPM, Ball bearing with Frequency Generator Signal (FG)
Somreal XY12038B 24VDC, Cooling Fan, Axial, 24VDC 120x120x38mm, 94CFM, 6 Watt, 2600-3000RPM, Ball bearing with Frequency Generator Signal (FG) Datasheet Product Datasheet
$27.00
$31.86 inclGST -
VCB10-30X15, DIN Rail Mount Fuse Holder Single Pole for 1500VDC Solar gPV Fuse
VCB10-30X15, DIN Rail Mount Fuse Holder Single Pole for 1500VDC Solar gPV Fuse Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems For PV10 series 1500VDC gPV Fuses Specification Schurter Part Number VCB10-30X15 Nominal Voltage 1500VDC Tested Breaking Capacity 100kA @1000VDC Fuse Dimensions Fuse Holder Dimensions 127mm x 65.8mm x 22.3mm Suitable Fuses PV 10 1500V Series Operating Temperature Range -40°C / 130°C Unit Weight 100g Factory Pack Qty 10 Datasheet VCB10x15 Fuse Holders
$15.00
$17.70 inclGST -
PV10-3A1500VDCgPV, GpV Solar Fuse 3Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
PV10-3A1500VDCgPV, GpV Solar Fuse 3Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Vicfuse Part Number 8020.2053 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15
$13.90
$16.40 inclGST -
E62.M17-103C60, 10uF, Heavy Duty AC Film Capacitor ø75 x 176mm, M8x25 terminals with Bushing. C6 Design, Voltage: 2000VAC/3400VDC
E62.M17-103C60, 10uF, Heavy Duty AC Film Capacitor ø75 x 176mm, M8x25 terminals with Bushing. C6 Design, Voltage: 2000VAC/3400VDC Characteristics and utility 10uF 2000VAC/3400VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.M17-103C60 Technology Metalized Polypropylene Film Capacitor Dimensions ø75 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 2000VAC/3400VDC Operating Temperature Range -40 to 85 °C Capacitance 68uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M8 x 25 studs Unit Weight 1kg Factory Pack Quantity 21 (MOQ = 105) Datasheet Product Datasheet
$204.00
$240.72 inclGST -
KM01.1105.11, IEC Appliance Inlet C14 with 2 Pole Switch and Fuse
Schurter KM01.1105.11, IEC Appliance Inlet C14 with 1 Stage EMC (RFI) Line Filter, Switch and Fuse Features Panel Mount : Screw-on mounting from front side 4 Functions : Appliance Inlet Protection class I, EMC Line Filter 1 Stage, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 2-pole Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 Specification Schurter Part Number KM01.1105.11 Rated Voltage 250V Rated Current 10A Filter Stages N/A Operating Temperature -25°C to 85°C Filter Type N/A Fuse Holder 2 Pole Line Switch 2 Pole Mounting Panel Mount - Case 50 Material Nickel Plated Steel Termination Style C14/Faston Weight 30g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes Datasheet Product Datasheet
$39.00
$46.02 inclGST -
E62.P17-153C60, 15uF, Heavy Duty AC Film Capacitor ø95 x 176mm, M6x12 terminals with Bushing. C2 Design, 2000VAC/3400VDC
E62.P17-153C60, 15uF, Heavy Duty AC Film Capacitor ø95 x 176mm, M6x12 terminals with Bushing. C2 Design, 2000VAC/3400VDC Characteristics and utility 15uF 2000VAC/3400VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.P17-153620 Technology Metalized Polypropylene Film Capacitor Dimensions ø95 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 2000VAC/3400VDC Operating Temperature Range -40 to 85 °C Capacitance 15uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 1.3kg Factory Pack Quantity 21 (MOQ = 105) Datasheet Product Datasheet
$307.00
$362.26 inclGST -
E62.E81-153E20, 15uF, 40x81mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, Voltage: 640VAC/1000VDC
E62.E81-153E20, 15uF, 40x81mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, Voltage: 640VAC/1000VDC Characteristics and utility 15uF 640VAC/1000VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.E81-153E20 Technology Metalized Polypropylene Film Capacitor Dimensions ø40x81mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 640VAC/1000VDC Operating Temperature Range -40 to 85 °C Capacitance 15uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style 4 x Faston Terminals Unit Weight 0.14kg Factory Pack Quantity 21 (MOQ = 105) Datasheet Product Datasheet Alternative See E62.G85-153D10 for the closest replacement
$51.00
$60.18 inclGST -
FESCT-055-100-5-IP65, 100Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture
Fastron Electronics FESCT-055-100-5-IP65, 100Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture Features Quick Release Split Core System 10m Flying Leads ø 55mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement, 5 Amp Outputs Specification Fastron Electronics Part Number FESCT-055-100-5-IP65 Technology Split Core AC Current Transformer Ratio 100/5A Aperture Size ø 55mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 100Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 2000g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$465.00
$548.70 inclGST -
FESCT-055-150-5-IP65, 150Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture
Fastron Electronics FESCT-055-150-5-IP65, 150Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture Features Quick Release Split Core System 10m Flying Leads ø 55mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement, 5 Amp Outputs Specification Fastron Electronics Part Number FESCT-055-150-5-IP65 Technology Split Core AC Current Transformer Ratio 150/5A Aperture Size ø 55mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 150Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 2000g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$465.00
$548.70 inclGST
