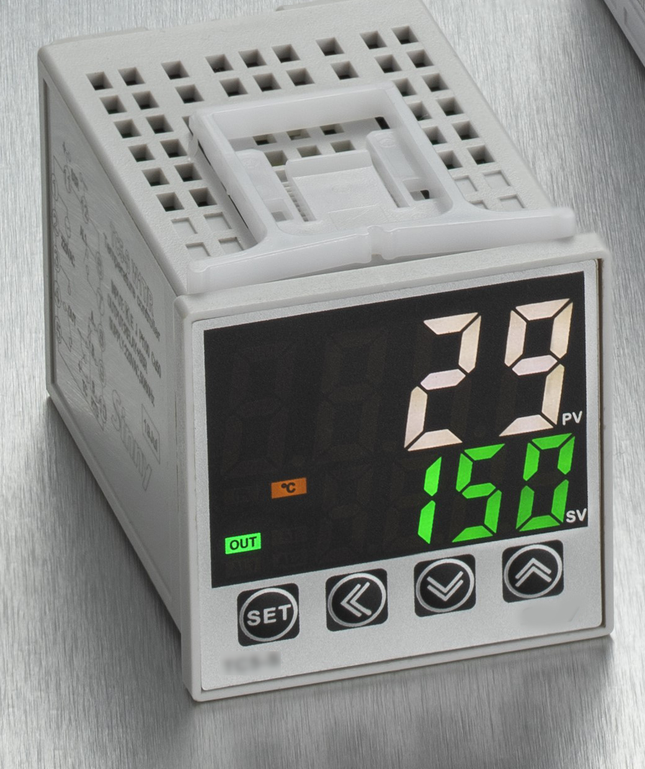

Fastron FC5-S-R-1-G-4-C PID Controller, 24VDC with 1 Alarm, RS485, K,E,J,N,T,S,R,B Thermocouple, Pt100 or Cu20, Optional Linear Current/Voltage, 48x48mm,Relay Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-S-R-2-T/R-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange Type,K,E,J,N,T,S,R,B, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x48mm with SSR/Relay output) Mounting Style 48 x 48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Fastron FC5-M-W-1-G-4-C PID Controller, 24VDC with 1 Alarm, RS485, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, 72x72mm, Relay + SSR Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-M-W-1-G-4-C Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/ SSR 12VDC 40mA Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 72x72mm with SSR/Relay output) Comms RS485 Modbus RTU 38400 Max Baud Rate Mounting Style 72x72mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

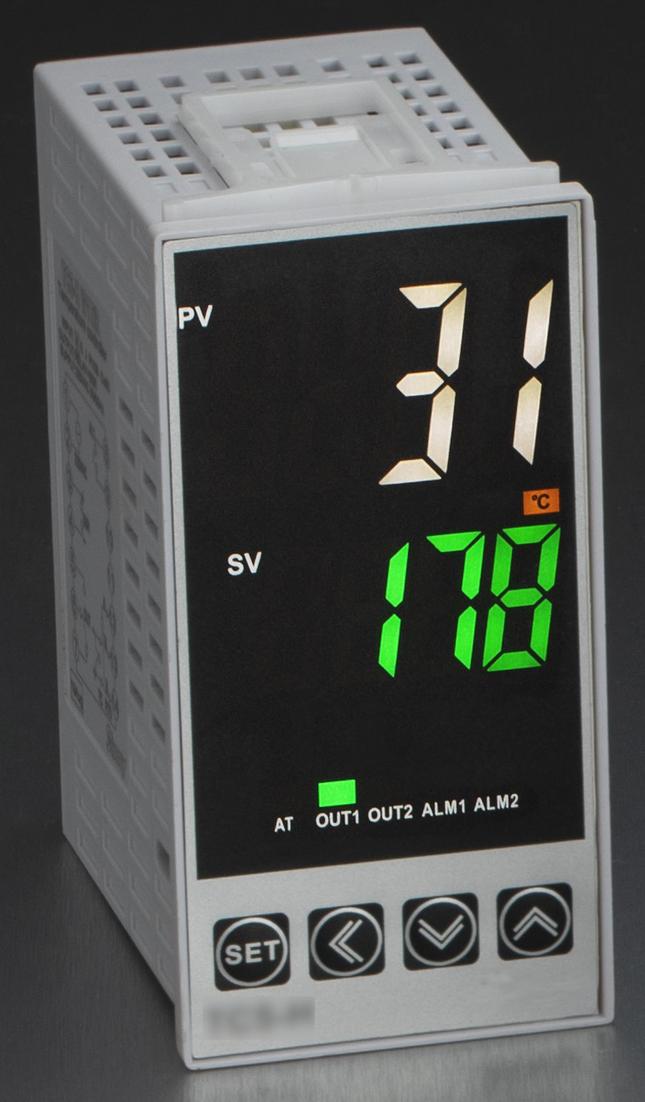

Fastron FC5-H-1U-1-G-4-C PID Controller, 24VDC with 1 Alarm, RS485, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm, 0-10V Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-1U-1-G-4-C Control Output 0-10V Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

XY12038HBL 230VAC, AC FAN 120mm sq X 38mm 230V, 32 Watts, 94CFM, 2600-3000RPM Ball bearing, CE Approved Datasheet Product Datasheet

Read more less

Somreal XY12038B 24VDC, Cooling Fan, Axial, 24VDC 120x120x38mm, 94CFM, 6 Watt, 2600-3000RPM, Ball bearing with Frequency Generator Signal (FG) Datasheet Product Datasheet

Read more less

Gigavac GV244FPB, Contactor SPST-NO, 400+ AMP, 100-800VDC, 48VDC Coil, PCB MOUNT, SPST-NO Auxiliary Contact, IP67 Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV244FPB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 48VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals PCB Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 100 - 800VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

VCB10-30X15, DIN Rail Mount Fuse Holder Single Pole for 1500VDC Solar gPV Fuse Features Mountable on 35mm DIN Rail Easy installation and replacement of fuses Fuses up to 100 kA breaking capacity Applications Combiner Boxes in Photovoltaic Systems For PV10 series 1500VDC gPV Fuses Specification Schurter Part Number VCB10-30X15 Nominal Voltage 1500VDC Tested Breaking Capacity 100kA @1000VDC Fuse Dimensions Fuse Holder Dimensions 127mm x 65.8mm x 22.3mm Suitable Fuses PV 10 1500V Series Operating Temperature Range -40°C / 130°C Unit Weight 100g Factory Pack Qty 10   Datasheet VCB10x15 Fuse Holders

Read more less

PV10-2A1500VDCgPV, GpV Solar Fuse 2Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses   Specification Vicfuse Part Number 8020.2053 Fuse Type I²t  GpV Class Fast Blow Nominal Voltage 1000VDC, 275VAC I²t Rating (Pre-Arcing) 3150 A²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder VCB10-30X15 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder VCB10-30X15

Read more less

E62.P17-153C60, 15uF, Heavy Duty AC Film Capacitor ø95 x 176mm, M6x12 terminals with Bushing. C2 Design, 2000VAC/3400VDC Characteristics and utility 15uF 2000VAC/3400VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.P17-153620 Technology Metalized Polypropylene Film Capacitor Dimensions ø95 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 2000VAC/3400VDC Operating Temperature Range -40 to 85 °C Capacitance 15uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 1.3kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

Fastron Electronics FESCT-055-300-5-IP65, 300Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture Features Quick Release Split Core System 10m Flying Leads ø 55mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement, 5 Amp Outputs   Specification Fastron Electronics Part Number FESCT-055-300-5-IP65 Technology Split Core AC Current Transformer Ratio 300/5A Aperture Size ø 55mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 300Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 2000g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FESCT-055-500-5-IP65, 500Amp Measurement, 5 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture Features Quick Release Split Core System 10m Flying Leads ø 55mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement, 5 Amp Outputs   Specification Fastron Electronics Part Number FESCT-055-500-5-IP65 Technology Split Core AC Current Transformer Ratio 500/5A Aperture Size ø 55mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 500Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 2000g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FESCT-055-200-1-IP65, 200Amp Measurement, 1 Amp Output Split Core CT's, Class 1, w/10M Flying leads, ø 55mm Aperture Features Quick Release Split Core System 10m Flying Leads ø 55mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement, 1 Amp Outputs   Specification Fastron Electronics Part Number FESCT-055-200-1-IP65 Technology Split Core AC Current Transformer Ratio 200/5A Aperture Size ø 55mm VA Rating 2.5VA Accuracy Class Class 1 Output 1 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 200Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 2000g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less
