Trent FGM6SM-3P-800H 800A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal and Magnetic, Adjustable Type 75kA 800 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 75kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6SM-3P-800H 800A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 800 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 75kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 8kg Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

FTA-400-420-24, Hall Effect DC Current Transducer, 0-400 Amp , 4-20mA Unipolar Output, 24VDC supply, 21mm Aperture Compact and versatile Split Core DC current sensor, 0-400 Amp , 4-20mA Unipolar Output Features ⌀21mm Aperture DC Unipolar Measurement 4-20mA Instantaneous output 120mS Response (for 0- 0-10mA ~0-10A AC) 10uS Response (0-0-400A ~0-400A AC) Panel mount Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Kit available Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number FTA-400-420-24 Technology DC Hall Effect Current Transducer with Instant Output Yes Supply Voltage 24VDC Nominal Current (RMS + DC) 0-400 Amp Response Time < 10uS Output Unipolar 4-20mA Instant Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth DC Aperture 20mm  Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Molex 4 Pin Unit Weight 300g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

Trent FGM6-3P-1600M 1600A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal & Magnetic, Fixed Type 65kA 1600 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a dis connector in case of electric shock Features : 3 Pole Disconnect 65kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6-3P-1600M 1600A Functions 3 Pole MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 1600 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 65kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 12.9kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGM6-3P-1600M 1250A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal & Magnetic, Fixed Type 65kA 1250 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a dis connector in case of electric shock Features : 3 Pole Disconnect 65kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6-3P-1600M 1250A Functions 3 Pole MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 1250 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 65kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 12.9kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Iskra IKD25-22-230VAC, Iskra 4 Pole 2 x SPST NO, Configuration_2 x SPST (2 x NC), Modular Contactor 440VAC 25 Amp, 240VAC/220VDC Control Voltage, 40-500Hz, Hum Free, Can Replace MC-25-240-2NO2NC Features 25 Amp (rms) @ 240VAC DIN Rail Mount Changeover Contact Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number IKD25-22-230VAC Switching Type 2 x SPST NO, Configuration_2 x SPST (2 x NC) Approvals CE Coil Voltage 230/240VAC/220VDC Load Rating 25 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Contactor Datasheet

Read more less

LEM FRS 1500-SBIH, O/L Coreless Current Transducer, 1500 Amp, +12V...24VDC Supply, 111.4 x 18.7 Square Aperture, 4-20mA Bipolar Output, Traction Version Features Bandwidth DC to 1000kHz Open loop transducer using Coreless Hall effect Technology Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses Low power consumption Applications Wind Turbines Electrolyser AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number FRS 1500-SBIH Technology Open Loop Coreless Hall Effect Aperture 111.4 x 18.7mm Square ROHS Yes Supply Voltage +12...24VDC, Isolated Load Current (RMS + DC) 1500 Amp Measurement Range +/-4500 Amp Overload Rating N/A Output 4-20mA Bipolar Isolation 18.5 kV Bandwidth DC-1000 kHz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 85°C Accuracy 1% Termination Style Molex 5045-04A Unit Weight 1500g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Trent TC-FGM6S-4P-630, Terminal Cover for 4 Pole Moulded Case Circuit Breaker (MCCB) Frame Size 630, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6S-4P-630 Functions 4 Pole MCCB Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

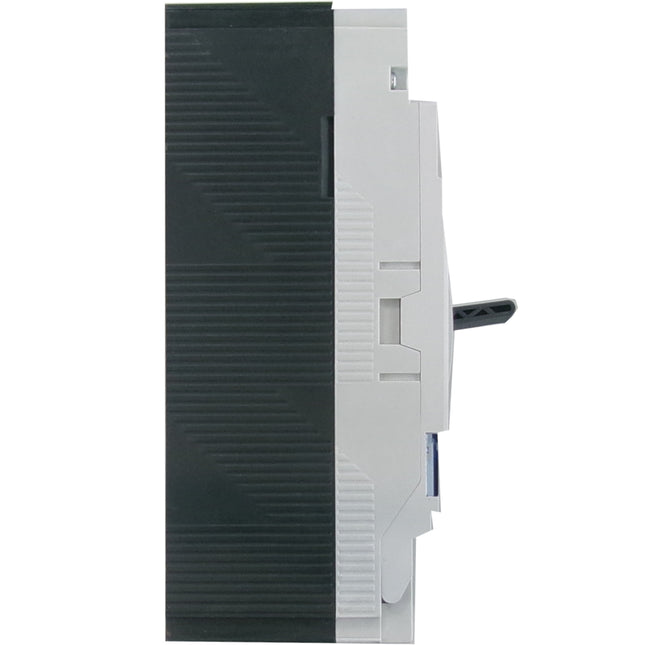

Trent FGM6SM-3P-800H 700A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal and Magnetic, Adjustable Type 75kA 1000 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 75kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6SM-3P-800H 700A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 1000 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 75kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 16kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGM6SM-3P-700H 700A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal and Magnetic, Adjustable Type 75kA 700 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 75kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6SM-3P-700H 700A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 700 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 700V Short Circuit Current 75kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 8kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics FGC1-F800-230VAC, AC Contactor, 240VAC Control Voltage, 3 Pole NO, Nominal Current = 800 Amps(AC-3) @ 240/400/500/690V Contactors are designed to meet the requirements of heavy Duty applications. Contactors may be fitted with auxiliary contacts. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp CE, CB Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Fastron Electronics Part Number FGC1-F800-230VAC Functions 3 Pole Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 800 Amp Continuous @ 55 Deg C Main Contacts 3 x NO  Aux Contacts None Trip Delay Time 2-10ms Electrical Life 1,000,000 Ops Operating Temperature -25 to 55 Deg C Mechanical Operations 6,000,000 Ops Control Voltage 240VAC Pole Resistance (avg) 0.35m Ohm Approvals CE, CB, TUV, LVD Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 2kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Crydom B514F-2T,Single Phase Half Controlled Rectifier Bridge, 25 Amp, 480VAC Line Features For AC or DC Variable Voltage Output Up to 15KW Electrically insulated base plate Industrial standard package 2500V Isolation UL Recognized E72445 Applications Power Supplies Rectifier for drives applications Rectifiers for UPS Battery Chargers Spec Crydom Part Number B514F-2T AC Line voltage 480V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 85 Deg C 25 Amp Package Size W:31.7mm L:63.5mm D:19.7mm Itsm 250 A VF 1.65V Tj(max) 125°C rF Not Published Terminals Faston (6.3mm) Hole Centres 48.2mm (M5) Gate Terminals Faston (6.3mm) R th(j-c) 0.9°C/W R th(c-h) Not Published Weight 42.5g Isolation 2.5kV Factory Pack Qty 20 Certification UL Listed Crydom Headquarters United States   Datasheet Product Datasheet Alternatives See B614F-2T or PSD51/18 for higher rated equivalent App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

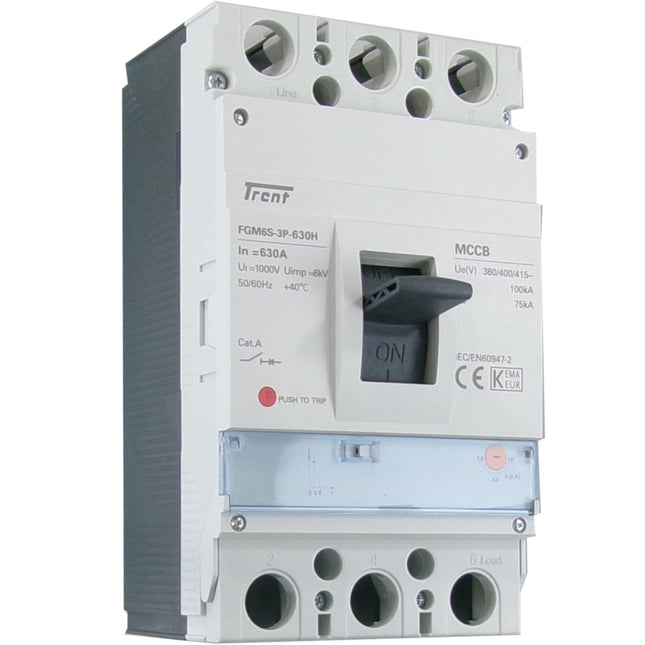

Trent FGM6SM-3P-630H 630A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal and Magnetic, Adjustable Type 75kA 630 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 75kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6SM-3P-630H 630A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 630 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 75kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 6.9kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet
