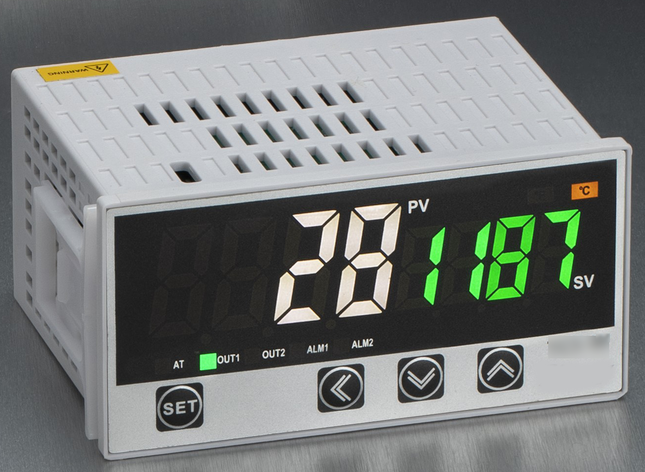

Fastron FC5-W-S-2-G-4 PID Controller, 24VDC with 2 x Relay Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-W-S-2-G-4 Control Output 12VDC @ 20mA Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 x Relay Alarms standard (Excludes 96x48mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 24VDC +/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

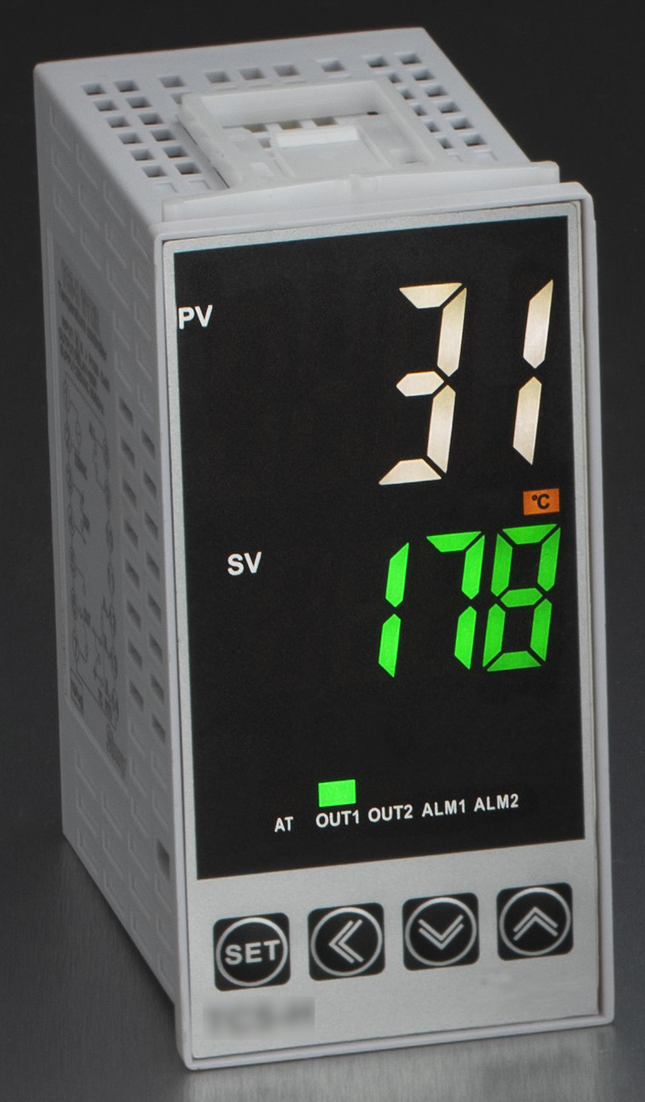

Fastron FC5-H-1A-2-G-2 PID Controller, 100-240VAC with 2 Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-1A-2-G-2 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-L-1A-2-G-2 PID Controller, 100-240VAC with 2 Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Fastron Part Number FC5-L-1A-2-G-2 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 96x96mm with SSR/Relay output) Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

E62.L95-253G10, 25uF, 65 x 95mm Heavy Duty AC Film Power Capacitor w/Stud -25 to 85 °C 200,000 hrs, 850VAC/1200VDC Characteristics and utility 25uF 640VAC/1000VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.L95-253G10 Technology Metalized Polypropylene Film Capacitor Dimensions ø65 x 95mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 850VAC/1200VDC Operating Temperature Range -25 to 85 °C Capacitance 25uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 0.18kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

Fastron Electronics GTD-2A6-A-11, Signal Isolator/Conditioner, 4-20mA Loop Supplied Input, Dual 4-20mA Outputs, 100-240VAC/DC Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted from 4 to 20 mA DC Loop Supply (Sensor Input) to insulated 4-20mA Standard Process Output Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-2A6-A-11 Control Output 2 x 4-20mA Input 4-20mA Sensor Input (Loop Powered) Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron FTH6053ZD3, Solid State Relay, 3 Phase 3-32VDC Control, 60A, 70-530VAC Load, with IP20 Cover Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Fastron Part Number FTH6053ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 60 Amp (rms) per Phase Surge Capability 630 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet Product Datasheet Equivalent Parts Contact Us for Possible Replacement

Read more less

Rishabh Rish Rish SIGMA 75 CTR1+1/1.CL0.5.5VA Summation Current Transformer for 1 Amp CTs Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish SIGMA 75 CTR1+1/1.CL0.5.5VA Technology AC Current Transformer Ratio 1+1/1 VA Rating 5VA Class 0.5 Accuracy Class Class 0.5 Output 1 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1.6 Amp Termination Style Screw Unit Weight 500g Factory Pack Qty 5   Datasheet Product Datasheet

Read more less

Fastron Electronics GTD-2A6-A-11/SP1, Signal Isolator/Conditioner, 4-20mA Loop Supplied Input, Dual 4-20mA Outputs, 100-240VAC/DC, TROPICALIZED CIRCUIIT BOARD Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted from 4 to 20 mA DC Loop Supply (Sensor Input) to insulated 4-20mA Standard Process Output Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-2A6-A-11/SP1 Control Output 2 x 4-20mA  Input 4-20mA Sensor Input (Loop Powered) Special Feature SP1 = Tropicalized Circuit Board Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

FTH12053ZA4 + HS212F, Solid State Relay, and Heatsink Assembly, 3 Phase 90-280VAC Control, 36 Amp per phase @ 40 Deg C, 48-530VAC Load, LED Status Indicator, with IP20 Cover Features Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number FTH12053ZA4 + HS212F Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 36 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Din Rail Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet HS103DR Product Datasheet 3 Phase SSR and Heatsink Mounted App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Semikron SKB 50/16 A3, Single Phase Diode rectifier Bridge, 50Amp, 1600V, Replaces IXYS VBO52-12NO7, Powersem PSB55T/12, PSB 55/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKB 50/16 A3 AC Line voltage 400V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 50 Amp Package Size W:60mm L:60mm D:30mm Itsm 750 A VF(to) 0.85V Tj(max) 150°C rF 8mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 0.64°C/W R th(c-h) 0.06°C/W Weight 250g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

E62.G85-402G10, 4uF, 50x62mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, 1350VAC/2250VDC Characteristics and utility 4uF Voltage: 1350VAC/2250VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.G85-402G10 Technology Metalized Polypropylene Film Capacitor Dimensions ø50x85mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1350VAC/2250VDC Operating Temperature Range -40 to 85 °C Capacitance 4uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 0.2kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

Iskra Systemi KNK3053 15.5KVAR 480V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 245mm Dry Type, 3 x 71.4uF, Possible Replacement to Frako LKT 15.5-480-DPS (70 x 225mm), or LKT 15.5-480-DP (70x265mm) Characteristics and utility Drop In replacement for FRAKO - LKT15.5-480-DPS  15.5kVar @ 480V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - Feed through terminals Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 15.5KVAR 480V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 75 x 245mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 480V @ 50Hz Kvar 15.5 Kvar Capacitance 3 x 71.4uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 18.6 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Double sided Filter Type Terminal Unit Weight 2.9kg Factory Pack Quantity 25   Datasheet Iskra PCF Catalogue Capacitor Datasheet Comparison to Frako LKT 15.5 480 DPS PFC Capacitor Comparison Chart Application Notes Discharge Resistor Usage Power Factor Correction Blog Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet

Read more less
