Fastron FC5-H-W-1-G-2-C, 100-240VAC PID Controller with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-W-1-G-2-C Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/12VDC @ 20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10 Approvals CE   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

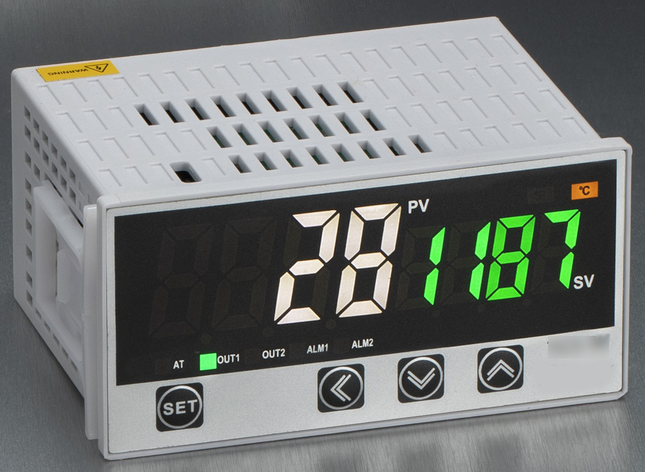

Fastron FC5-W-S-1-G-4-C PID Controller, 24VDC with 1 Alarm, RS485, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-W-S-1-G-4-C Control Output 12VDC @ 20mA Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 96x48mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 24VDC +/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Fastron FC5-H-1A-1-G-2-C PID Controller, 100-240VAC with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-1A-1-G-2-C Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

SQL50A 1000V, 3 Phase Diode rectifier Bridge, 50 Amp @ TC = 55 Deg C, 35 Amp @ Tc = 85 Deg C, 1000V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Part Number SKB 35/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 62 Deg C 25 Amp Package Size W:55mm L:45mm D:24mm Itsm 380 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 9.3°C/W R th(c-h) 0.9°C/W Weight 22g Isolation 3kV Factory Pack Qty 10   Datasheet Product Datasheet Alternatives See PSD51/18 for higher rated equivalent

Read more less

E62.R17-124C60, 120uF, AC Film Capacitor ø116 x 176mm, M6x12 terminals with Bushing. C6 Design. Optimized For High RMS Currents, Voltage: 2000VDC/1200VAC Characteristics and utility 120uF 1200VAC/1680VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.R17-124C60 Technology Metalized Polypropylene Film Capacitor Dimensions ø116 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1075VAC/1680VDC Operating Temperature Range -40 to 85 °C Capacitance 120uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 2kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

SKD 31/16, Three Phase Diode rectifier Bridge, 31 Amp, 1600V replaces Powersem PSD25T/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKD 31/16 AC Line voltage 533V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 85 Deg C 4 Amp Package Size W:63mm L:32mm D:26mm Itsm 370 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals Faston (6.3mm) Hole Centres Single M5 Gate Terminals N/A R th(j-c) 2°C/W R th(c-h) 0.3°C/W Weight 66g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

XLG-240-H-AB, LED Driver/Power Supply with built in PFC, 240W, 100-305VAC input, 56VDC, 4.9Amp, Constant Current/Power/Voltage , Built In POT for Dimming with 0-10V PWM. IP67, Used as LED Driver Wide Supply Voltage: 100-305VAC Output Voltage: 56V Output Current: 4.9A Power Rating: 240W Short Circuit, Overload, Overcurrent, Overvoltage Protected PFC Feature PF>0.93 (93% Efficiency) UL, CE, ROHS Approved Datasheet Product Datasheet

Read more less

FP010080P/40mA, 100/40mA Split Core CT, Class 1,  Series Clip On Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FP010080P/40mA Technology Split Core AC Clip On Current Transformer Ratio 100/40mA Aperture Size 50 x 80mm VA Rating 1.5VA Accuracy Class Class 1 Output 40mA Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 100Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

GO 10-SME/SP3, O/L Hall Effect Current Sensor with evaluation PCB, 10 Amp Features Hall effect measuring principle Galvanic separation between primary and secondary circuit Insulated test voltage 3000 V RMS Low power consumption Extremely low profile Single power supply +5 V Double overcurrent detection Fixed offset & sensitivity Response time 2 µs. Advantages Small size and space saving High immunity to external interference High insulation capability Industrial. Low electrical resistance (0.75 m?) No magnetic hysteresis Robust against external fields and cross-talk. Applications Appliances Small drives HVAC Solar E-Bikes Standards   IEC 62109-1: 2010 IEC 60950-1: 2005 IEC 61800-5-1: 2007 UL 1577: 2014.   Application Domains Industrial Specification LEM Part Number GO 10-SME/SP3 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 10 Amp Overload Capability +/-200 Amp Output 2.5 Vref Isolation 2.5 kV Bandwidth DC-300 kHz Mounting Style Surface Mount - SOIC 8 Pin Operating Temperature Range -40°C / 125°C Accuracy 2% Termination Style N/A Unit Weight 10g Factory Pack Quantity 150   Datasheet Product Datasheet

Read more less

Fastron FT-AV(0-150)-D-1, Signal Isolator/Conditioner, 0-150V AC input, 24VDC aux, 4-20mA Average RMS output Non Adjustable, Fixed Input and output span 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FT-AV(0-150)-D-1 Control Output 4-20mA Average RMS Input 0-150VAC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 24VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics GT-AV(0-150)-D-1, AC Voltage Transducer, 0-150V AC input, 22-60VAC/DC aux, 4-20mA Average RMS output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-AV(0-150)-D-1 Control Output 4-20mA Average RMS Input 0-150VAC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22 - 60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics GT-DV6-D-1, Signal Isolator/DC Voltage Transducer, 0-300VDC input, 22-60VAC/DC aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-DV6-D-1 Control Output 4-20mA Input 0 - 300VDC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22 - 60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
