Crydom DR48D12, Solid State Relay, 4-32VDC control, 12 Amp 600V AC Output, Slimline, LED status Indicator Features Ratings from 6A to 12 Amp @ 48 - 600VAC DIN Rail Mount SCR output for reliable AC switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR48D12 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4-32VDC Load Current 12 Amp (rms) Surge Capability (10ms) 715 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 48 - 600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 38g Factory Pack Qty 20 Datasheet Product Datasheet Equivalent DRA1-CMX60D10 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Rishabh 3PH185-37(45) 630, Class 1, 5VA 630 Amp, 5 Amp Output, 3 Phase Current Transformer, Panel Mount, Busbar Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number 3PH185-37(45) 630 Technology AC Current Transformer Ratio 630/5 Aperture Size ⌀37mm VA Rating 5VA Accuracy Class Class 1 / Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 630Amp x 1.2 Termination Style Screw Unit Weight 1500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

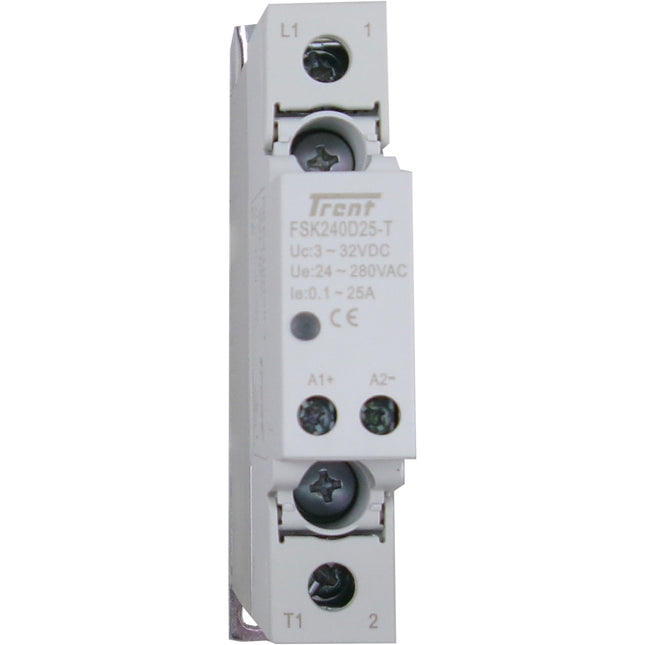

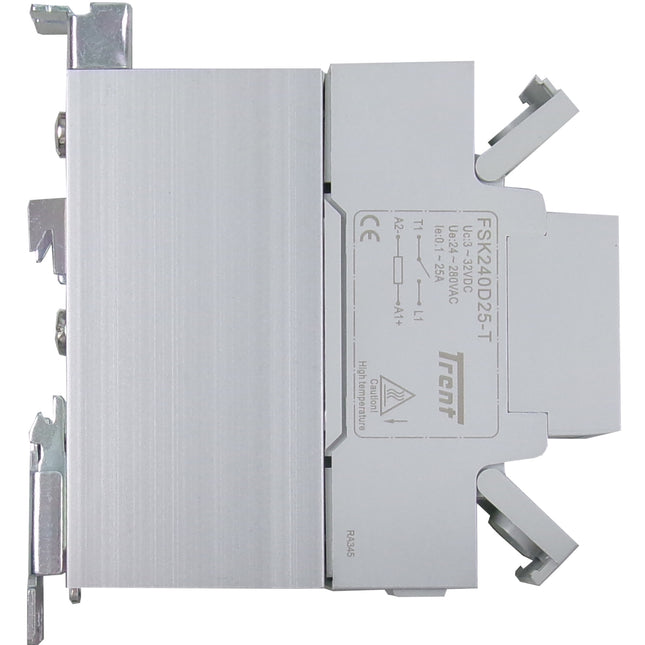

Trent FSK240D25T-K, Solid State Contactor SSR, Single Phase 4-32VDC Control, 25A, 24-240VAC Load, Din Rail Mount, with Internal Transient Overvoltage Suppressor Features Ratings from 20A to 75 Amp @ 24-280VAC or 24-660 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Trent Part Number FSK240D25T-K Switching Type Zero Crossing ROHS Yes  Control Voltage 4 - 32VDC Load Current (single unit) 25 Amp (rms) @ 40 Deg C Ambient Load Current (multiple units) 22 Amp (rms) @ 40 Deg C Ambient (10mm spacing) Surge Capability 800 Amp (peak) Special Feature Contactor Style Terminals Mounting Style DIN Rail Mount Load Voltage Range 24 - 280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 195g Factory Pack Qty 20   Datasheet Product Datasheet Alternatives SSR Style CKRD4830 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom CMX60D10, Solid State Relay, PCB or Socket Mount, 3-10VDC Control, 10 Amp, 0-60VDC Load Features Ratings from 3A to 20 Amp @ 60-200VDC Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 Redesigned housing with anti-rotation barriers EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number CMX60D10 Switching Type DC Load ROHS Yes (Details) Control Voltage 3-10VDC Load Current 10 Amp DC Surge Capability (10ms) 100 Amp DC Special Feature None Mounting Style PCB Mount Load Voltage Range 0 - 60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 11g Factory Pack Qty 20 Datasheet Product Datasheet Equivalent Contact Us for Possible Replacement DIN Rail Holder Din Rail Holder App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron FC5-M-W-2-G-2 PID Controller, 100-240VAC with 2 Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 72x72mm, Relay + SSR Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-M-W-2-G-2 Control Output SSR/Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/ SSR 12VDC @20mA Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 Alarms standard Comms Optional (Modbus RTU 38400 Max Baud Rate) Mounting Style 72x72mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

2.5 URGG 36/350, 350 Amp, 250V Semiconductor Protection Fuse Product Datasheet

Read more less

Shinko BCS2R0019 T7671 Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number BCS2R0019 T7671 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange (refer to datasheet) Option 1 2nd Relay Alarm Option 2 Event Input Mounting Style 48 x 48mm Panel Mount Load Voltage Range 100 - 240VAC Termination Style Screw Weight 170g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet Shinko Product Guide Fine Tuning Adjustments BC Series Brochure BC Series Limit Controller Function BC Series User Manual BC Series RS485 Comms Manual

Read more less

Northern Design Cube 350-M2-C-H Series 3 Phase Power Meter 2 Pulse Input or Outputs Nominal current up to 6 A (For 5A CT Input) and nominal voltage up to 240V L-N Single Line Display Optional RS 232/RS 485 communication up to 19,200 bit/s RMS values of currents and voltages Measurements of active, reactive, apparent power and power factor THD up to 15th Harmonic The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals. Features : 96 x 96mm Panel Mount Accuracy class 1 Simple Menu Optional RS 232/RS 485 communication up to 19,200 bit/s or Ethernet communication MODBUS and Ethernet communication protocol 240V AC power supply Specification Northern Design Part Number Cube 350-M2-C Functions kWh Meter, Energy Meter Supply Voltage 240VAC < 5VA Nominal Measurement Range 415V L-L 240V L-N, 5 Amp Maximum Measurement Range 415V L-L 280V L-N, 6 Amp Display Single Line LCD Pulse Output 2 (input or output) Accuracy Class 1 (kW,kWh) Class 1(Active) Class 2(kVar,PF) Battery Backup N/A Real Time Clock 1min/month (30ppm) Isolation 3.5kV RS232/RS485 2400-19200 b/s Weight 250g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Environment IP54 Safety Protection Class II Enclosure Material Mablex with fire protection to UL94-V-O. Self extinguishing EnclosureSize 96 x 96mm x 83.5mm (72mm behind panel) Terminals Rising Cage 4mm² (12 AWG) cable max Humidity < 75% Non Condensing Operating Temperature -20 →+70 °C Datasheet Product Datasheet Product Manual Product Comms Manual Application Notes Dual Tariff Guide

Read more less

LEM HAX Series Open Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 25kHz Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Wide dynamic range, nominal 100 to 2500 A in one package. Up to 5500 A measurement range Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number HAX 1000-S Technology Open Loop Hall Effect Aperture 64 x 21mm Square ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 1000 Amp Measurement Range +/-3000 Amp Overload Rating +/-30000 At Output +/-4 V Isolation 4.4 kV Bandwidth DC-25 kHz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 85°C Accuracy 1% Termination Style Molex 5045-04A Unit Weight 450g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

PFC 12-12-R-RTC, Power Factor Regulator & Kwh Power Quality Meter 144x144mm (Epcos BR 6000) wit RTC, 12 Step, 30-550V 50/60HZ, 240VAC Aux Single 1/5A CT Sensing Automatic Step Sensing (After start up sequence) Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 12 steps Measurement System - Automatic/Manual 230VAC Aux Supply Modbus RS485 Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Rishabh Part Number PFC 12-12-R-RTC Function Reactive Power Correction Nominal Voltage (Un) 110-480VAC Line to Line Supply Voltage 240VAC (L-N), 15VA 40-70Hz +/-10% Relay Rating 250VAC/10Amp Panel Size 144 x 144mm Switch Delay Time 10s - 1800s User Adjustable Alarm 1 x Relay as above Temperature Alarm 1 x Relay as above Re-connection Delay Time 10 - 1800s User Adjustable Desired Power Factor 0.80 IND - 0.80 CAP Number of Output Relays 13 Smallest Capacitor Current 10mA CT Input Range 1/5 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 Termination Style Screw Weight 700g Certification IEC 61326-1:2012, Table 2 (EMC), IEC 62053-21 (Accuracy), IEC 61010-1-2010 (Safety), IEC60529 (IP Rating Dust & Water) Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to IEC 61010-1-2010, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet Product Datasheet User Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog)

Read more less

LEM CKSR 50-NP KIT 3P Series Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 UL 508: 2004 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number CKSR 50-NP Sample Kit 3 P Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-150 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 0.8% Termination Style PCB Unit Weight 9g Factory Packaging 3 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 50-NP

Read more less

VX2-UCNA-A2D2, Temp Controller, 48x96mm, 100-240VAC, Multirange Input, 4-20mA Output, 2 Alarms, 2 x SV Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX2-UCNA-A2D2 Control Output 1 (Heat) 4-20mA Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 2 x SV Input (2 Setpoint Selection/External Setting Input) Mounting Style 48 x 96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 350g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11
