AMB-DVO(0-60)-A-N, 96x48mm DC Voltmeter, Bipolar 0-60VDC Input, 240VAC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Alish Part Number AMB-DVO(0-60)-A-N Conditioner Output N/A Input 0-60VDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110-240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Infineon TT61N12KOF-K Dual Thyristor Module Features Pressure Contact Technology Optimised for Deep Cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Center Tapped Transformers Specification Infineon Part Number TT61N12KOF-K Vrrm 1200V Diode Configuration Common Cathode Dual Thyristor Module IF(av) @ 85 Deg C 61 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.55 kA VF(to) 0.8V Tj(max) 130°C rF 3.4mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.52°C/W R th(c-h) 0.16°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See VSKC91/16 for Vishay Solder Bonded replacement. See TT104N14KOF-K for Infineon Pressure Contact Alternative

Read more less

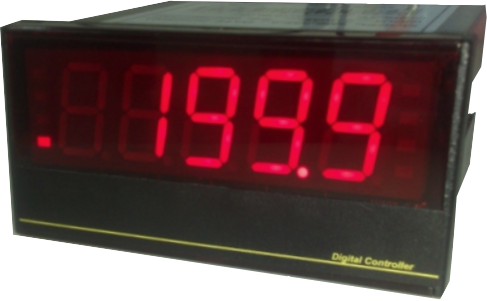

AMB-DVO(0-15)-A, 96x48mm DC Voltmeter, Bipolar 0-15VDC Input, 240VAC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Alish Part Number AMB-DVO(0-15)-A, Conditioner Output N/A Input 0-15VDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110-240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics BTCD/S-M-A2-DA, PID Controller 96x96mm, 85-265VAC, SSR output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/S-M-A2-DA Control Output SSR 24VDC @ 30mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Infineon T720N16TOF, Thyristor(SCR) PUK 720 Amp, 1600V, 58/26, See B1115LC180 or B1230LC160 for drop in replacement Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T720N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 719 Amp Package Size ø58 x 26mm Itsm 14.5 kA VF(to) 0.85V Tj(max) 125°C rF 0.35mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.038°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 160g Clamping Force 9 - 18kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Obsolete. See  B1115LC180 Heatsink Heatsink Profiles

Read more less

Fastron Electronics BTCD/A-M-A2-DA, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

RSP-2000-24, Panel Mount Power Supply, 90-264VAC or 250-370VDC input, 24VDC @ 80A output Supply Voltage: 90-264VAC or 250-370VDC Output Voltage: 24V Output Current: 80A Power Rating: 1920W Short Circuit, Overload, Overcurrent, Overvoltage Protected PFC Feature PF>0.97 (90.5% Efficiency) UL, CE, ROHS Approved Datasheet Product Datasheet

Read more less

Techsem MFC110-12-223F3, Thyristor Diode Module, 110 Amp, 1200V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MFC110-12-223F3 Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKH91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Techsem MDK182-16-216F3, 162 Amp, 1600V, Dual Diode Module, Common Cathode Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MDK182-16-216F3 Vrrm 1600V Diode Configuration Dual Diode Module, Common Cathode IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6.4 kA VF(to) 0.80V Tj(max) 150°C rF 0.96mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

NDR-480-24, Universal Din Rail Mount Power Supply, 85-164VAC or 124-370VDC input, 24VDC @ 20A output Supply Voltage: 85-264VAC or 124-370VDC Output Voltage: 24V Output Current: 20A Power Rating: 480W Short Circuit, Overload, Overcurrent, Overvoltage Protected PFC Feature PF>0.93 (93% Efficiency) UL, CE, ROHS Approved Datasheet Product Datasheet

Read more less

Single Phase Bridge Rectifier, 50 Amp, 600V Product datasheet

Read more less

CSP-3000-120, Panel Mount Power Supply, 85-264VAC or 154-370VDC input, 120VDC @ 25A output Supply Voltage: 85-264VAC or 154-370VDC Output Voltage: 120V Output Current: 25A Power Rating: 3000W Short Circuit, Overload, Overcurrent, Overvoltage Protected PFC Feature PF>0.93 (93% Efficiency) UL, CE, ROHS Approved Datasheet Product Datasheet

Read more less
