Toshiba MG75J2YS50, IGBT Dual, 75 amp, 600V Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 35mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number MG75J2YS50 Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 75 Amp Package Size W:35mm L:94mm D:308mm V(isol) 2.5 kV Vf @ 25 Deg C 1.7 - 2.15V Tj(max) 175°C Td(on) @ 25 Deg C 0.13uS Td(off) @ 25 Deg C 0.3uS I(ces) @ 25 Deg C 1mA Rcc 0.65mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.58°C/W R th(c-h) 0.125°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See FF75R12RT4, BSM100GB120DLCK or Contact Us for Possible Replacement for alternative

Read more less

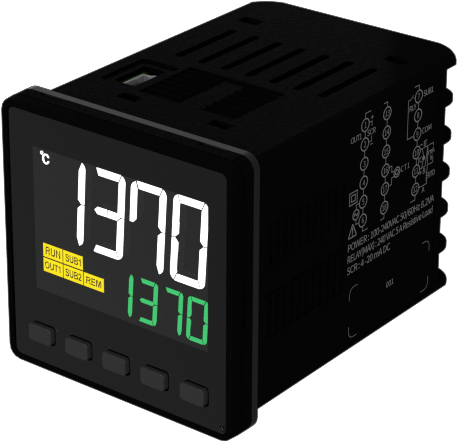

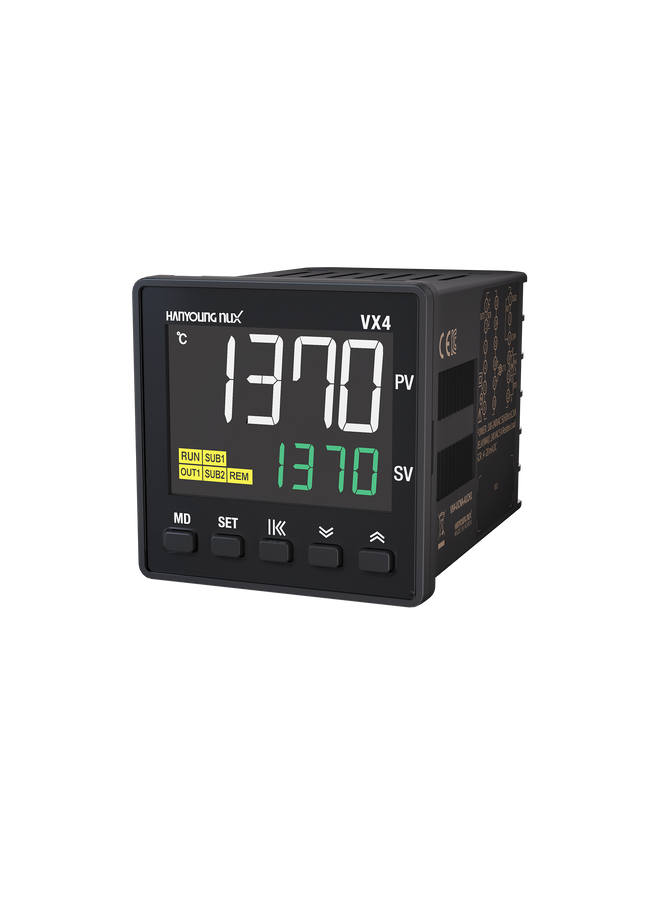

VX4-UCMA-A1, Temp Controller, 48x48mm, 100-240VAC, Multirange Input, 4-20mA Output, Relay Cooling 1 Alarm Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX4-UCMA-A1 Control Output 1 (Heat) 4-20mA Control Output 2 (Cool) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 N/A Option 2 Cooling Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Mounting Style 48 x 48mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Trent FBT P BCM12.5 275 RM (4+0), Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD) with Remote Contacts, 3 Pole 37.5kA,440VAC, DIN Rail Mount, L/N-PE, L-PEN, L-N, N-PE High Energy MOV Type Specifications   Trent part number FBT P BCM12.5 275 RM (4+0) Nominal Voltage 440VAC No of Poles 4 Category IEC / EN / VDE Class I,II / Type 1,2 / B,C Location of use Main Distribution Boards Protection modes L/N-PE, L-PEN, L-N, N-PE High Energy MOV Additional Remote Contacts YES Protective element MOV Surge discharge rating Imax up to 37.5 kA(10/350us) / 100kA(8/20us) or 12.5kA(10/350us) / 60kA(8/20us) per pole Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11   Datasheet Product Datasheet

Read more less

Semikron SKM150GB17E4G IGBT Inverter Module Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM150GB17E4G Vces 1700V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 187 Amp Package Size W:61mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.205uS Td(off) @ 25 Deg C 0.55uS I(ces) @ 25 Deg C 2mA Rcc 0.55mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) 0.017°C/W R th(c-h) 0.027°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

FBT B PVM 150 RM, 150VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT B PVM 150 RM Nominal Voltage 150VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT Y PVM 600 RM, 600VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT Y PVM 600 RM Nominal Voltage 600VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT Y PVM 1200 RM, 1200VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT Y PVM 1200 RM Nominal Voltage 1200VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC50539-11 (TUV Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

Semikron SKM100GAL123D, IGBT Trench Half Bridge/SPT, 100 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM100GAL123D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 90 Amp Package Size W:34mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.030uS Td(off) @ 25 Deg C 0.450uS I(ces) @ 25 Deg C 0.1mA Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) 0.5°C/W R th(c-h) 0.36°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

FBT Y PVM 1500 RM, 1500VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT Y PVM 1500 RM Nominal Voltage 1500VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC50539-11 (TUV Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT Y PVM 1000 RM, 1000VDC Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT Y PVM 1000 RM Nominal Voltage 1000VDC No of Poles 3 Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBT B PVM 600 RM, 600VDC Surge Protection Device for Photovoltaic Systems, Type 1 (CLass I) + Type 2 (CLass II) 40kA WITH REMOTE C/O CONTACTS   Specifications Trent part number FBT B PVM 600 RM Nominal Voltage 600VDC No of Poles 3 Category IEC / EN / VDE Type 1 (CLass I) + Type 2 (CLass II) Location of use String Box, Inverter Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-11:GB/T 18802.11: YD/T 1235.1, CE   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

Infineon FF150R12KS4, IGBT Dual, 150 Amp, 1200V Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 4000V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF150R12RT4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 150 Amp Package Size W:61mm L:94mm D:30mm V(isol) 4 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.13uS Td(off) @ 25 Deg C 0.30uS I(ces) @ 25 Deg C 500uA Rcc 0.65mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.31°C/W R th(c-h) 0.13°C/W Weight 160g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives BSM200GB120DLC or Contact Us for Possible Replacement for alternative

Read more less
