Trent NBR-CH14/UQ/12A/690V, gR Semiconductor Fuse, 12 Amp, 51x14mm 690V Semiconductor I²t Fuse Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 50 A²/s Nominal Current (RMS + DC) 12 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 51 x 14mm Fuse Holder RT18-63L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-63L

Read more less

Trent NBR-CH14/UQ/16A/690V, gR Semiconductor Fuse, 16 Amp, 51x14mm 690V Semiconductor I²t Fuse Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 75 A²/s Nominal Current (RMS + DC) 16 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 51 x 14mm Fuse Holder RT18-63L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-63L

Read more less

Trent NBR-CH14/UQ/20A/690V, gR Semiconductor Fuse, 20 Amp, 51x14mm 690V Semiconductor I²t Fuse Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 180 A²/s Nominal Current (RMS + DC) 20 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 51 x 14mm Fuse Holder RT18-63L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-63L

Read more less

Iskra BI232-11-230VAC, Two Pole 1 x NO SPST, 1 x NC SPST, 230VAC @ 32 Amp (Resistive), 24VDC @ 32 Amp Bistable Switch/Latching Relay with Manual Control, with 230VAC Coil Voltage Features 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC DIN Rail Mount Zero Power Consumption in "ON State" Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number BI232-11-230VAC Switch/Latching Relay Type 1 x SPST NO 440VAC/220VDC, Configuration_SPST (1 x NC) 440VAC/220VDC Approvals CE Coil Voltage 230VAC Load Current (RMS/DC) 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC Special Feature Manual and Impulse Controlled Mounting Style DIN Rail Mount Load Voltage Range 32 Amp (rms) @ 440VAC/32 Amp @ 24VDC/18 Amp @ 48VDC/14 Amp @ 60VDC/5 Amp @ 110VDC/0.8 Amp @ 220VDC Isolation 4kV Termination Style Screw Unit Weight 60g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

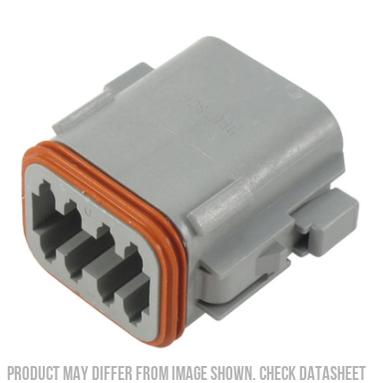

DT06-08SA, Deutsch Connector for GX, MX Gigavac Auto Contactors, Comes with 4 Pins IP67 Specification Part Number: DT06-08SA Series: DT Series Insulation: .088-.145 [2.24-3.68] Wire Size: 14, 16, 18, 20 Required Wedgelock: W8S Keyed: Yes, A key Color: Gray Material: Plastic Shape: Rectangular Connector Style: Plug Cavities: 8 Contact Size: 16 Safety IP67 Rating: 13 Holds Pin/Socket: Socket Flange/In-line/PCB Mount: In-line Features Product Type Features Connector Style : Housing for female terminals Connector System : Wire-to-Wire Sealable : Yes Hybrid Connector : No Primary Locking Feature : Integrated in Housing Connector & Contact Terminates To : Wire & Cable Strain Relief : Add By Accessory Row-to-Row Spacing : 4.45 mm [ .175 in ] Configuration Features Number of Positions : 8 Number of Rows : 2 Blank Cavity Position : 0 Electrical Characteristics Nominal Voltage Architecture (V): 12, 24, 48 Operating Voltage (VAC): 250 Operating Voltage (VDC): 250 Body Features Color : Gray Connector Code : A Cable Exit Angle : 180° Body Material : PA GF Contact Features Mating Pin Diameter : 1.59 mm [ .0625 in ] Contact Rating (Max) (A): 13 Mechanical Attachment Mounting Feature : Without Terminal Position Assurance : Yes Polarized : Yes Housing Features Centerline (Pitch) : 9.12 mm [ .359 in ] Dimensions Width : 19.71 mm [ .776 in ] Height : 37.21 mm [ 1.465 in ] Length : 30.91 mm [ 1.217 in ] Usage Conditions Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ] Operation/Application Circuit Application : Power & Signal Industry Standards Degree of Protection : IP68, IP6K9K UL Flammability Rating : 12mm Flame Test per Standard UL-94 Agency/Standard : SAE J2030 Packaging Features Packaging Method : Box Packaging Quantity : 550 Other Connector Position Assurance Capable : No Serviceable : Yes Datasheet https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDT06-08SA%7FE%7Fpdf%7FEnglish%7FENG_CD_DT06-08SA_E.pdf%7FDT06-08SA SKU A03325 Brand Deutsch/TE Shipping Weight 0.0100kg Shipping Width 0.010m Shipping Height 0.020m Shipping Length 0.010m Shipping Cubic 0.000002000m3

Read more less

GIC Controls 45D331AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 24VDC, Relay Output 3-digit display (0.5s response) CE/ROHS Approved Each unit needs just 17.5mm width Din Rail space EC Compliant Specification GIC Controls Part Number 45D331AR Control Output Relay NO 5 Amp/NC 3 Amp (Resistive) Input External NTC Sensor (Included) Mounting Style 17.5 x 75mm Din Rail Mount Trip Window 5 to 40 Deg C Supply Voltage 24VDC Termination Style Screw Weight 300g Factory Pack Qty 1 ROHS Yes CE Yes   Datasheet Datasheet

Read more less

GIC Controls 45A131AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 230VAC, Relay Output 3-digit display (0.5s response) CE/ROHS Approved Each unit needs just 17.5mm width Din Rail space EC Compliant Specification GIC Controls Part Number 45A131AR Control Output Relay NO 5 Amp/NC 3 Amp (Resistive) Input External NTC Sensor (Included) Mounting Style 17.5 x 75mm Din Rail Mount Trip Window 5 to 40 Deg C Supply Voltage 230VAC Termination Style Screw Weight 300g Factory Pack Qty 1 ROHS Yes CE Yes   Datasheet Datasheet

Read more less

Magnelab HCT-0010-050, Split Core DC Hall Effect Current Sensor, 50 Amp, +/-4V Output, Split Core 10mm Aperture, X = 1% Features Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification Magnelab Part Number HCT-0010-050 Technology Split Core Open Loop Hall Effect Aperture ø10mm ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 50 Amp Measurement Range +/-75 Amp Output +/-4 V Isolation 4 kV Bandwidth DC Mounting Style Panel Mount Operating Temperature Range -25°C / 75°C Accuracy 1% Termination Style Flying Lead Unit Weight 80g Factory Pack Quantity 10 Datasheet Product Datasheet

Read more less

Rishabh Rish Con V(500V)-50-H-O1A2-O2A2-Z-Z-Z, AC Voltage Transducer, 50Hz 65-500VAC Full Scale, Dual 0-20mA Output, 60-300VAC/DC Supply, without Display Dual 0-20mA Output 250mS response time PC 94 UL V0 Each unit needs just 43.75 x 100.9 mm depth DIN Rail cabinet space Specification Rishabh Part Number Rish Con V(500V)-50-H-O1A2-O2A2-Z-Z-Z Measurement Output Dual 0-20mA Input 65 - 500VAC 50/60Hz Overlaod (Continuous) 120% Overload (1 second) 150% Operating Temperature -40 - 70°C Supply Voltage 60 - 300VAC/DC Accuracy 0.2% Response Time 250mS Termination Style Screw Mounting Style DIN Rail Mount Safety IP40/IP20 EN60529 Protection Class II EN61010 Weight 400g Factory Pack Qty 1   Datasheet Product Datasheet Technical Support Rish Con P setup procedure blog

Read more less

Fastron FES521-FD-V10,Solid Core AC Current Transducer, Solid Core Multirange 0-10A,20A, 50A, Self Powered, Average RMS 0-10V Output. 1% Accuracy (FCS521-SD-V10) Compact and versatile current switches for detection of AC Currents, Multirange 0-10Amp, 0-20Amp, 0-50Amp via jumper, 0-10V True RMS output Features Average RMS 0-10V output Multirange selector Panel mounting Eliminates insertion loss Isolated plastic case recognised according to UL94-V0 Advantages Highly accurate low current measurement down to 1Amp High isolation between primary and secondary circuits Easy installation Applications Fault Detection Motor or Fan Protection Application Domain Energy and Automation Specification Fastron Part Number FES521-FD-V10 Technology Solid Core Solid Core AC Current Transducer Range 0-10Amp, 0-20Amp, 0-50Amp via jumper Supply Voltage Self Powered Load Current (RMS) 1Amp to 50 Amp Output 0-10V Average RMS Isolation 2kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style Panel Mount Operating Temperature Range -25°C / 70°C Accuracy 1% Termination Style Screw Terminals Unit Weight 200g Certifications UL E320368, CE, Rohs compliant   Datasheet Product Datasheet Installation Guide

Read more less

Crydom SM-IAC5A, AC Input Module, SM Series 90-140 VAC/DC, 5mA, 5VDC Supply Product Datasheet

Read more less

Fastron Electronics GTD-DA6-D-11, Signal Conditioner/Voltage Transducer, 4-20mA input, 22-60VAC/DC aux, Dual 4-20mA outputs Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-DA6-D-11 Conditioned Output 2 x 4-20mA Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22 - 60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
