Fastron Electronics BTCD/A-M-A2-DA, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Timonta Series IEC Inlet w/ 1 Stage EMC (RFI) line filter, w/ 2 Pole Fuse 250VAC, 6 Amp Datasheet Product Datasheet

Read more less

Secure Meters DPM96P360-2, 96mm x 96mm LCD Digital Power Factor Meter, 3 Phase 0-500VAC, 0-6 Amp Inputs, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)   Features LCD Dual Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 96mm Panel Space 52mm Depth CE Approved ROHS and REACH Specification Secure Part Number DPM96P360-2 Frequency Range 45-65 Hz Accuracy 0.5% Input 5/6 Amp 3 Phase CT inputs, 100-500VAC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 40-300VAC/DC Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Standards IEC / EN 61010-1; IEC / EN 61010-2-030, IEC / EN 62053-21 Protection Degree IP54 (IP65 Optional) Weight 450g Factory Pack Qty 1   Datasheet Product Datasheet Manual DPM Series User Manual Application Notes Panel Meters Blog Articles

Read more less

Trent TC-FGM6DC-2P-400, Terminal Cover for 2 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 400, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-2P-400 Functions Terminal Cover for 2 Pole DC Moulded Case Circuit Breaker Frame Size 400 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

SI-102-3-2-L, Signal Isolator/Conditioner, 4-20mA input, 20-40VAC/20-60VDC aux, 2 x 4-20mA outputs, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI-102-3-2-L Control Output 2 x 4-20mA Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 20-40VAC/20-60VDC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron FC5-H-1U-1-G-2-C PID Controller, 100-240VAC with 1 Alarm, RS485, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x96mm, 0-10V Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-H-1U-1-G-2-C Control Output 0-10V Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x96mm with SSR/Relay output) Mounting Style 48x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-M-1U-1-G-2-C PID Controller, 100-240VAC with 1 Alarm, RS485, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 72x72mm,0-10V Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-M-1U-1-G-2-C Control Output 0-10V Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 72x72mm with SSR/Relay output) Comms RS485 Modbus RTU 38400 Max Baud Rate Mounting Style 72x72mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

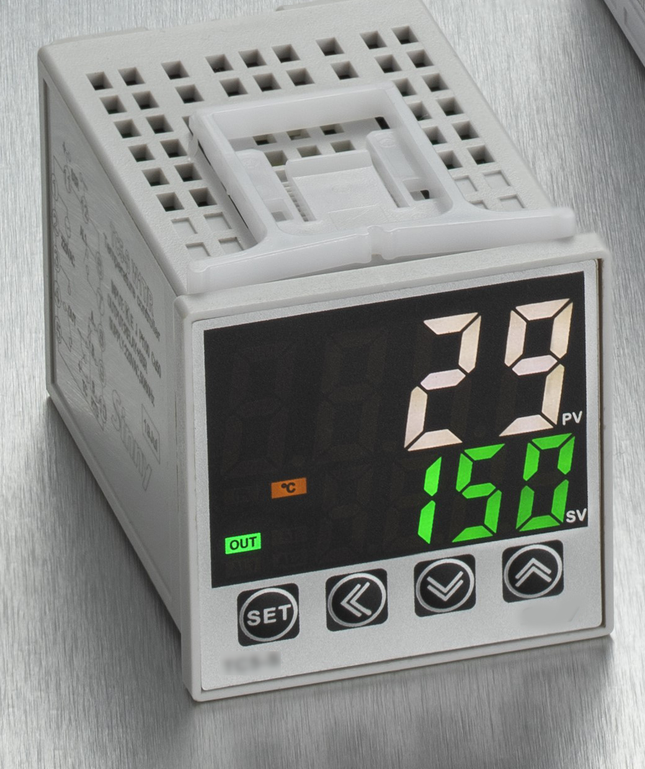

Fastron FC5-S-1U-1-G-2-C PID Controller, 100-240VAC with 1 Alarm, RS485, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x48mm,0-10V Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-S-1U-1-G-2-C Control Output 0-10V Input Multirange K,E,J,N,T,S,R,B Thermocouple, PT100/Cu20 RTD Input/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x48mm with SSR/Relay output) Mounting Style 48 x 48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

H-200-2-24, Split Core Hall Effect DC Current Transducer, 0-200 Amp DC, 4-20mA unipolar output, 31mm aperture, 24VDC supply Compact and versatile Split Core DC current sensor, 0-200 Amp DC, 4-20mA Unipolar Output Features ⌀31mm Aperture Split Core DC Unipolar Measurement 4-20mA analogue output Busbar, or DIN Rail Mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number H-200-2-24 Technology DC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage 24VDC Nominal Current (DC) 0-200 Amp Response Time < 200mS Output Unipolar 4-20mA Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth DC Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

Fastron FC5-W-W-2-A-2 PID Controller 100-240VAC, with 2 Relay Alarms, 4-20mA Input, 96x48mm, Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-W-W-2-A-2 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/ 12VDC @20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 96x48mm with SSR/Relay output) Mounting Style 96x48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Fastron FC5-L-W-2-G-2 PID Controller, 100-240VAC with 2 Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, 96x96mm, Dual Relay and SSR Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-L-W-2-G-2 Control Output Relay and SSR (Dual Ouptut) Input Multirange Type K, J, E,S,T,R, Pt100, Cu50/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 Alarms Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-S-W-1-G-2-C, 100-240VAC PID Controller with 1 Alarm, RS485 K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, Relay + 12VDC Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-S-W-1-G-2-C Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4)/SSR 12VDC @20mA Input Multirange Type K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input Option 1 1 Alarm standard Mounting Style 48 x 48 Panel Mount Supply Voltage 100-240VAC +/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less
